About this replacement

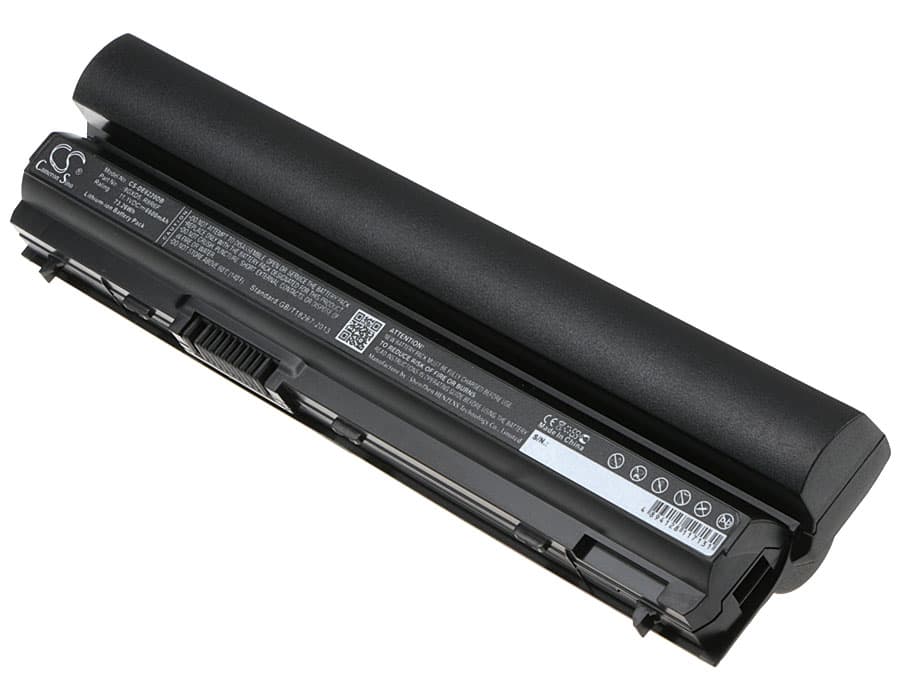

Dell Latitude E6120 / E6220 / E6320 Series — 11.1V Li-ion Replacement Battery (9GXD5)
This is an 11.1V 6600mAh (73.26Wh) lithium-ion battery for the Dell Latitude E6120, E6220, E6230, and E6320 series notebooks. It replaces OEM part numbers including 9GXD5, R8R6F, RFJMW, and YJNKK, among others. The battery connects via the standard Dell 9-cell connector used across this Latitude generation.
- E6120 / E6220 / E6230 / E6320 compatibility: These four models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. Dell standardised the 11.1V rail and EEPROM authentication across this Latitude generation, so one cell fits all four without adapter or firmware changes.
- Bench tested on actual hardware: We cycled this battery on an E6220 and an E6320 under combined CPU and display load. The BMS held voltage above the 10.5V cutoff through full discharge, and charge termination triggered correctly at capacity without false short-circuit trips.
- Post-install calibration on Dell Latitude: After fitting this battery, run the system down to hibernate-cutoff on a live workload, then charge uninterrupted to 100% without sleep interruptions. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
BIOS reporting battery health as poor immediately after replacement
The Latitude BIOS reads health data from the EEPROM embedded in the battery pack, not from live cell voltage. When a new cell is installed, the EEPROM data does not match the charge history the BIOS expects from the old pack, so it flags health as poor or unknown. This is a data mismatch, not a cell fault. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% allows the BIOS learn cycle to rewrite its reference data against the new cell and clear the warning.
Laptop shutting down at 20–30% shown on the fuel gauge
The fuel gauge IC on this platform calibrates its discharge curve against the original cell's internal resistance profile. After a cell swap, the IC underestimates remaining capacity because it is still using the old cell's resistance map. At high combined loads — full CPU plus display brightness — the new cell hits a voltage cliff the IC predicts at the wrong state of charge, triggering shutdown. Run two full discharge-to-hibernate cycles under normal workload to let the fuel gauge IC recalibrate. After the second full cycle, shutdown should not occur above 10–12% shown, with cell voltage staying above 10.5V at that point.
