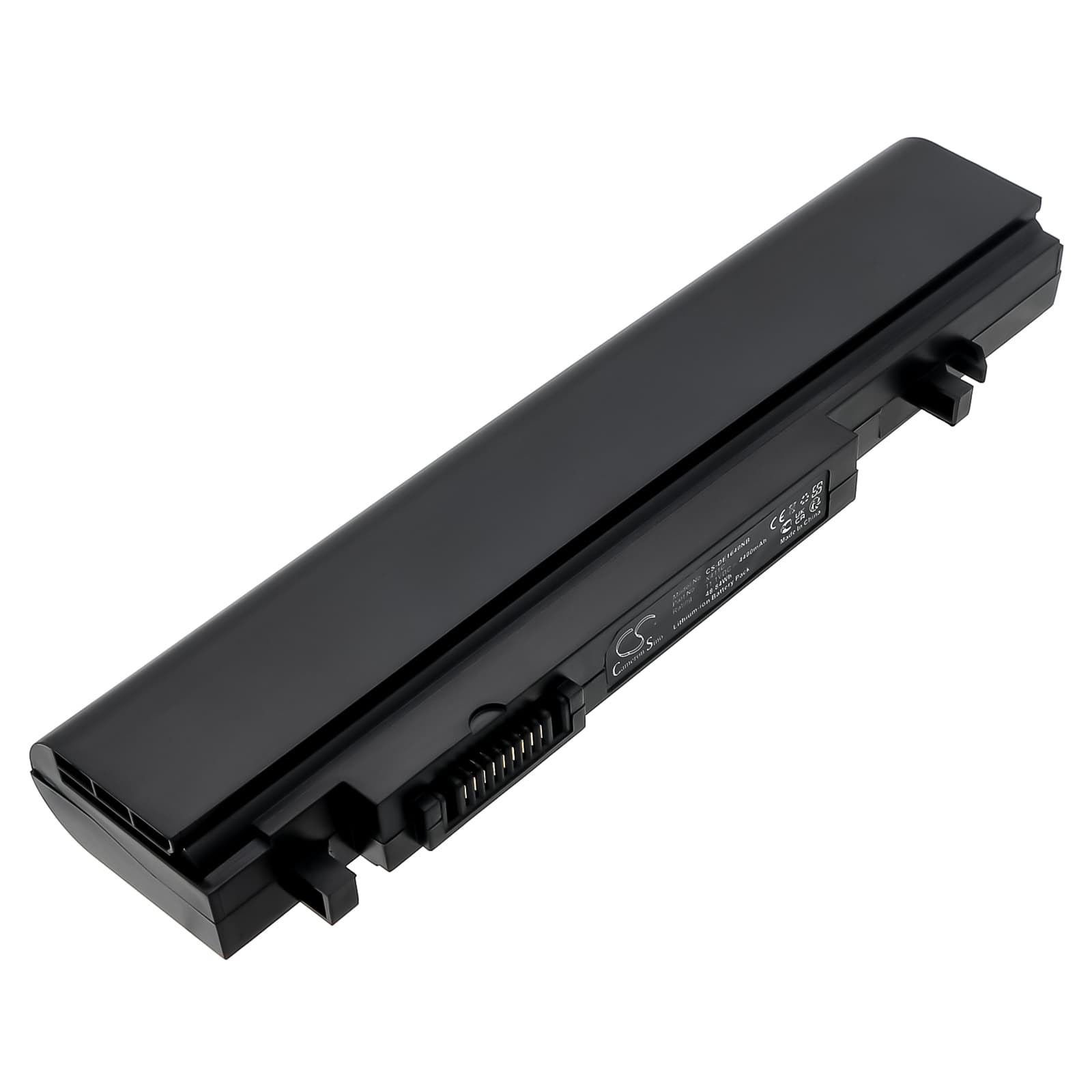

Dell Studio XPS 1640 / 1647 — 11.1V Li-ion Replacement Battery (312-0815)
This 11.1V, 6600mAh Li-ion battery replaces the original cell in the Dell Studio XPS 16, Studio XPS 1640, Studio XPS M1640, and Studio XPS 16 1647. It matches OEM part numbers 312-0815, X411C, W303C, U011C, W298C, and 451-10692. Same voltage rail and connector as the factory cell.
- Studio XPS 16 series fit: The 1640 and 1647 share the same battery bay geometry, 11.1V rail, and BMS handshake protocol. One cell covers both boards without modification or adapter.
- Bench tested on actual hardware: We cycled this cell through charge, full-load discharge, and BMS cutoff on a Studio XPS 1640 board. The BMS accepted the cell without fault codes and the protection circuit tripped cleanly at the low-voltage threshold.
- Post-install calibration on Dell XPS laptops: After installing, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
Why the Studio XPS 16 shuts down at 20–30% after a battery swap
The Studio XPS 16 uses a fuel gauge IC that stores discharge curve data from the previous cell. When a new cell goes in, the IC is still reading against the old cell's curve. Under combined CPU and GPU load, voltage drops faster than the IC predicts, triggering an emergency shutdown before the displayed percentage reaches zero. This is a calibration gap, not a fault with the replacement cell. Run two full discharge-to-hibernate cycles and let the IC re-learn the new cell's curve. After the second cycle, the gauge and shutdown behaviour should align with actual remaining capacity.
BIOS reports battery health as "poor" or "replace" immediately after install
Dell's BIOS reads health status from EEPROM data written by the original cell — cycle count, rated Wh, and wear level. A new cell carries a fresh EEPROM, which the BIOS flags as a mismatch against its stored baseline. The warning does not mean the cell is defective. Boot into the Dell BIOS battery diagnostics (F2 at POST, then Diagnostics), run the battery test, and let it complete a full learn cycle. The health flag clears once the BIOS writes a new baseline from the replacement cell's data.
