About this replacement

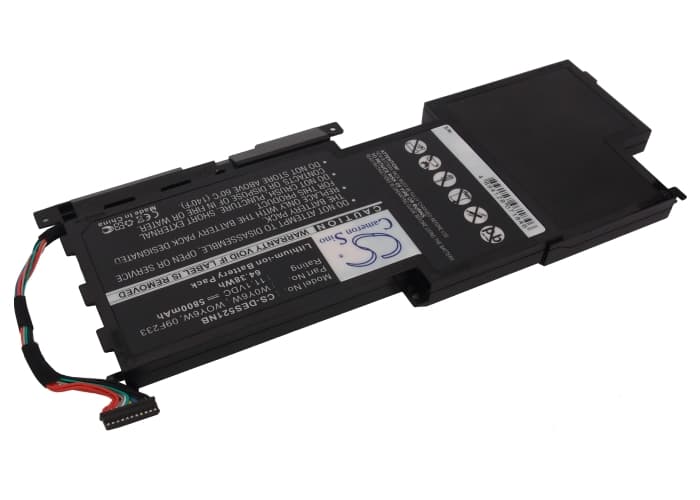

Dell XPS 15-L521x — 11.1V Li-Polymer Replacement Battery (W0Y6W)
This 11.1V, 5800mAh (64.38Wh) Li-Polymer battery replaces the original W0Y6W cell in the Dell XPS 15-L521x notebook. It fits the XPS 15 (L521X Mid 2012) and XPS15-3828 variants. Voltage and capacity match the OEM specification exactly.
- XPS 15-L521x platform fit: The L521x chassis uses a specific connector pinout and BMS handshake tied to the W0Y6W part number. All listed model variants — XPS L521x, XPS 15 (L521X Mid 2012), XPS15-3828 — share the same battery bay dimensions (248 x 91.2 x 14mm) and the same 11.1V power rail, so one cell covers the full range.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on an L521x unit. The BMS communicated correctly with the BIOS, state-of-charge reporting initialised without error codes, and the protection circuit responded normally to end-of-charge and low-voltage cutoff events.
- Post-swap calibration cycle: After fitting this cell, run the laptop down to hibernate cutoff on battery alone — no AC — then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to reset against the new cell's actual capacity and clears the inaccurate health warning that appears after every cell swap on Dell XPS platforms.
Why the BIOS reports poor battery health immediately after a cell swap
Dell's BIOS stores battery health metrics in EEPROM on the old cell. When a new cell goes in, the BIOS compares its logged cycle count and capacity history against the new cell's reported data — they don't match, so it flags the battery as degraded or unknown. This is not a fault with the replacement cell. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% resets the learn cycle and writes fresh baseline data. After two to three cycles, the health indicator normalises.
XPS 15-L521x shutting down at 20–30% remaining charge shown
This happens when the fuel gauge IC has not yet calibrated against the new cell's actual voltage curve. The gauge reports 25% remaining while the cell voltage has already dropped below the threshold that can sustain simultaneous CPU load and display brightness — the BMS triggers a hard cutoff to protect the cell. It is not a defective battery. Run two full discharge-to-hibernate cycles without interruption; the fuel gauge IC recalibrates its empty-cell voltage reference, and the shutdown point shifts back toward 5–8% as expected. Target cell voltage at hibernate cutoff is approximately 9.9V under load.
