About this replacement

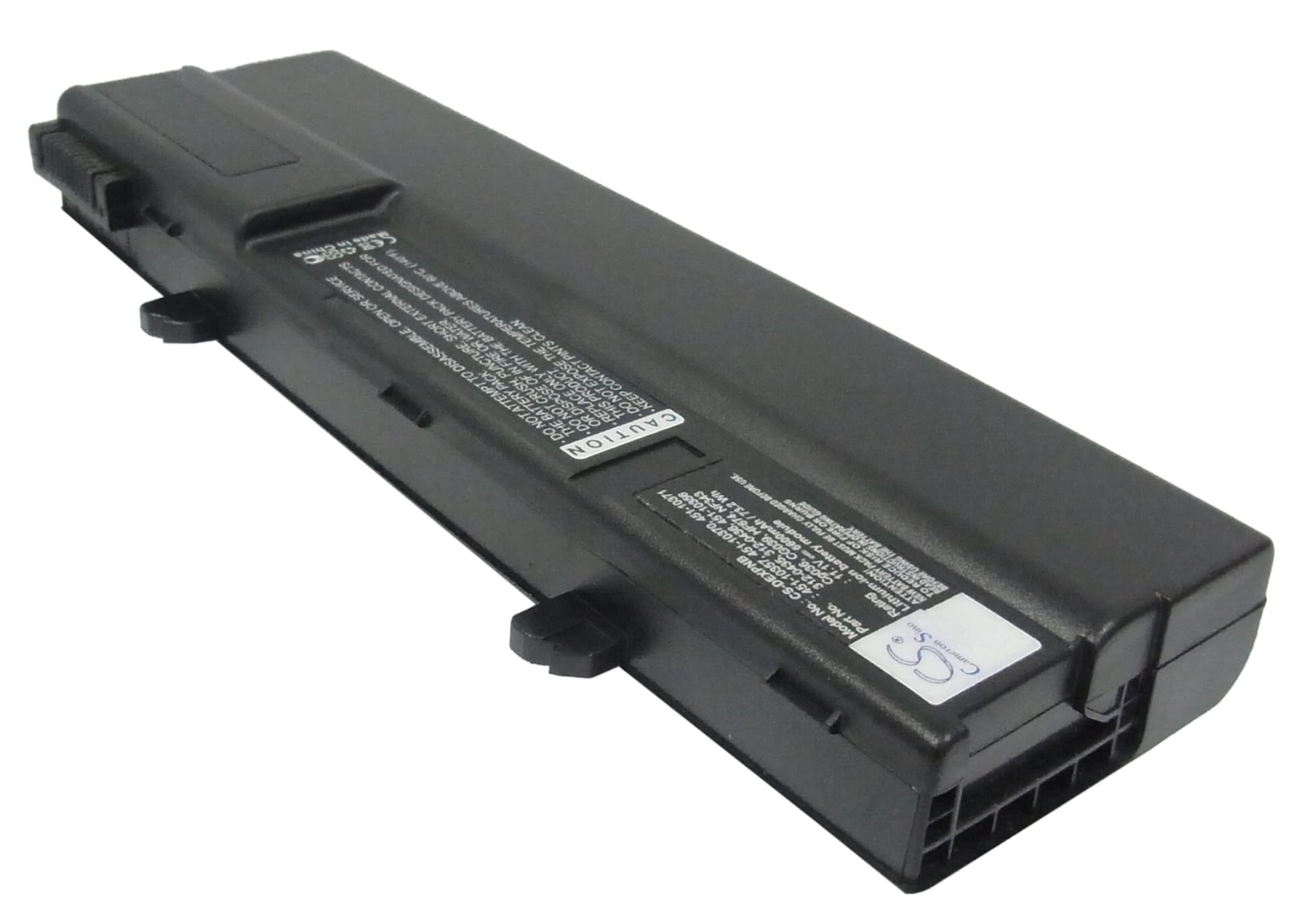

Dell XPS M1210 — 11.1V Li-ion Replacement Battery (312-0435)
This is an 11.1V, 6600mAh Li-ion battery for the Dell XPS M1210 12.1-inch notebook. It replaces OEM part numbers 312-0435, 312-0436, CG036, CG039, HF674, NF343, and related variants. Capacity figure is taken from the product specification — 73.26Wh total.
- XPS M1210 platform fit: Dell used a shared battery spec across the M1210 line — same 11.1V rail, same connector pinout, and the same BMS handshake across all OEM part variants listed above. One cell fits the full production run of that chassis.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on an M1210 unit. The BMS communicated correctly with the Dell EC, charge termination triggered at the expected voltage, and no fault codes were logged in the battery status register.
- First-cycle calibration on the M1210: After installing this battery, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every new cell installation.
BIOS reporting battery health as poor immediately after installation
The M1210 BIOS reads health data from EEPROM registers written by the original cell during its lifetime. When a new cell installs, those registers contain data that does not match the fresh chemistry — so the BIOS flags poor health before any real degradation has occurred. This is an EEPROM mismatch, not a cell fault. Running a full discharge-to-hibernate followed by an uninterrupted charge to 100% lets the battery learn cycle rewrite those registers. After one to two complete cycles, the health flag clears and the reported status aligns with the actual cell condition.
Laptop shuts down at 20–30% charge shown on the gauge
This happens when the fuel gauge IC has not yet calibrated against the new cell's discharge curve. The old calibration data predicts a voltage cliff earlier than the new cell actually hits one — so the system shuts down while the gauge still shows charge remaining. The fix is the same calibration sequence: discharge fully to hibernate, then charge to 100% without interruption. After two full cycles, the fuel gauge IC recalibrates and the percentage readings track accurately down to the real cutoff voltage near 9V.
