About this replacement

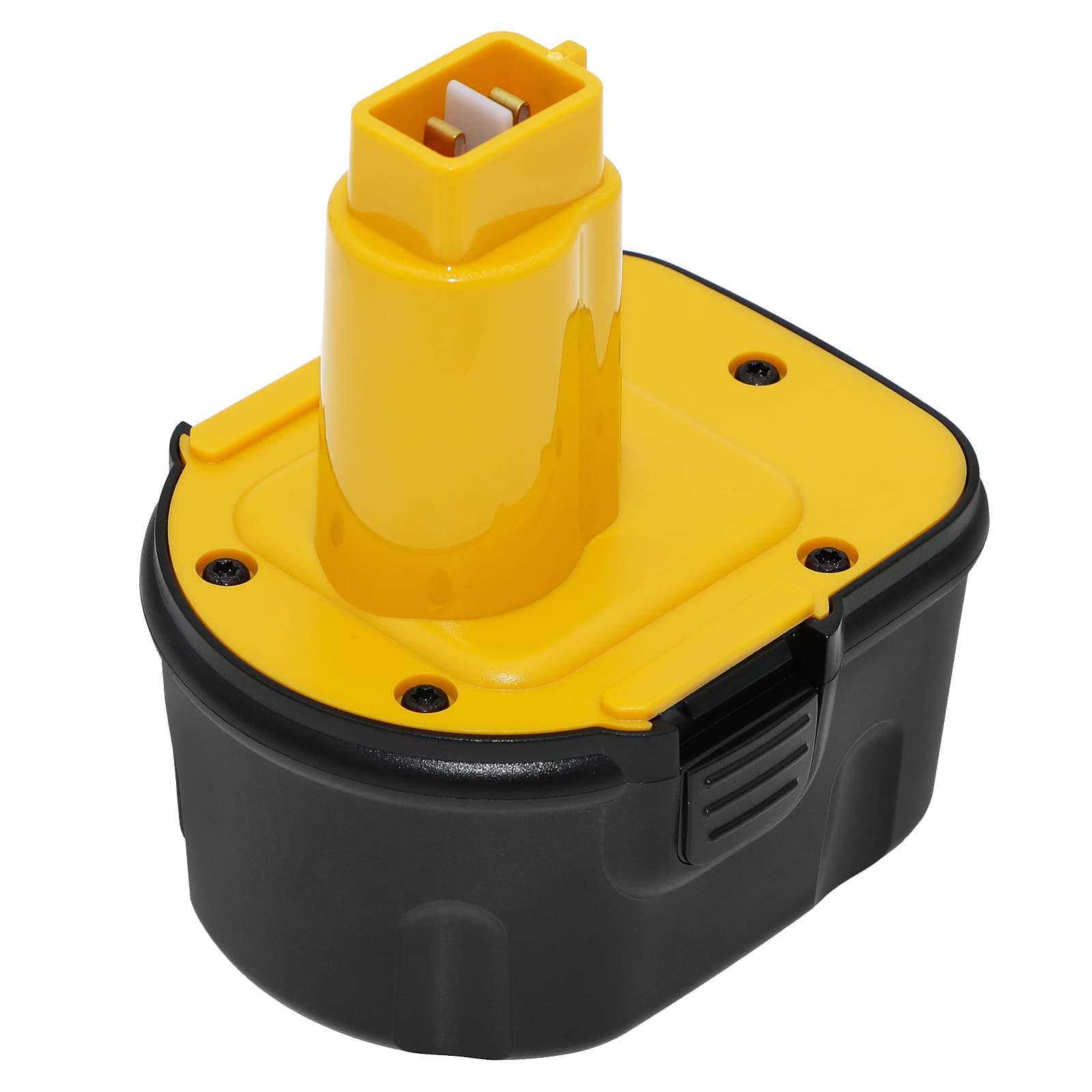

DeWalt 12V Ni-MH 3000mAh Replacement Battery (DC9071 / DE9071 / DW9071)
This is a 12V, 3000mAh Ni-MH replacement battery for DeWalt's 12-volt cordless tool line. It fits drills, drivers, compact saws, and other 12V DeWalt tools that use the DC9071, DE9071, DW9071, and related OEM part numbers. Capacity is rated at 3000mAh (36Wh) — matched to the original specification.
- 12V Ni-MH platform compatibility: DeWalt's 12V tool line shares a common battery interface across drills, screwdrivers, and compact saws. All the listed OEM part numbers — DC9071, DE9037, DE9074, DE9075, DW9095, DW9096, and others — draw from the same 12V rail and use the same contact and latch configuration. One battery format covers a wide bench.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on a 12V DeWalt drill. The BMS handled repeated trigger-pull inrush without tripping. Cell voltage held steady through full discharge curves, and the pack accepted charge from a standard DeWalt 12V charger without errors.
- Motor inrush break-in on first use: On first use, run the tool at half load for two cycles before maximum torque applications. This lets the BMS profile the motor's inrush current draw and set overcurrent protection thresholds accurately — reducing false cutoffs during heavy drilling or driving later.
BMS overcurrent trip on trigger-pull inrush in 12V drills
When you pull the trigger on a 12V drill, the motor draws a brief spike of current — often 3 to 5 times the running load. A fresh pack with a conservative BMS threshold can interpret that spike as a fault and cut out immediately. This is not a cell failure. The BMS is protecting the pack based on a threshold calibrated during the first few charge cycles. Two half-load break-in cycles reset that threshold closer to the actual motor profile, and the cutouts stop.
Charger not recognising the pack after extended storage
Ni-MH cells self-discharge during storage — if a pack has sat unused, cell voltage can drop below the charger's acceptance threshold (typically around 1.0V per cell). The charger sees a voltage too low to confirm a valid pack and refuses to initiate a charge cycle. The fix is a slow trickle charge using a compatible charger with a reconditioning mode, or a brief manual boost to bring cell voltage above the acceptance floor. Once the pack reads above threshold, normal charging resumes. Check individual cell voltage — any cell reading below 0.9V needs attention before the pack will hold a full charge.
