About this replacement

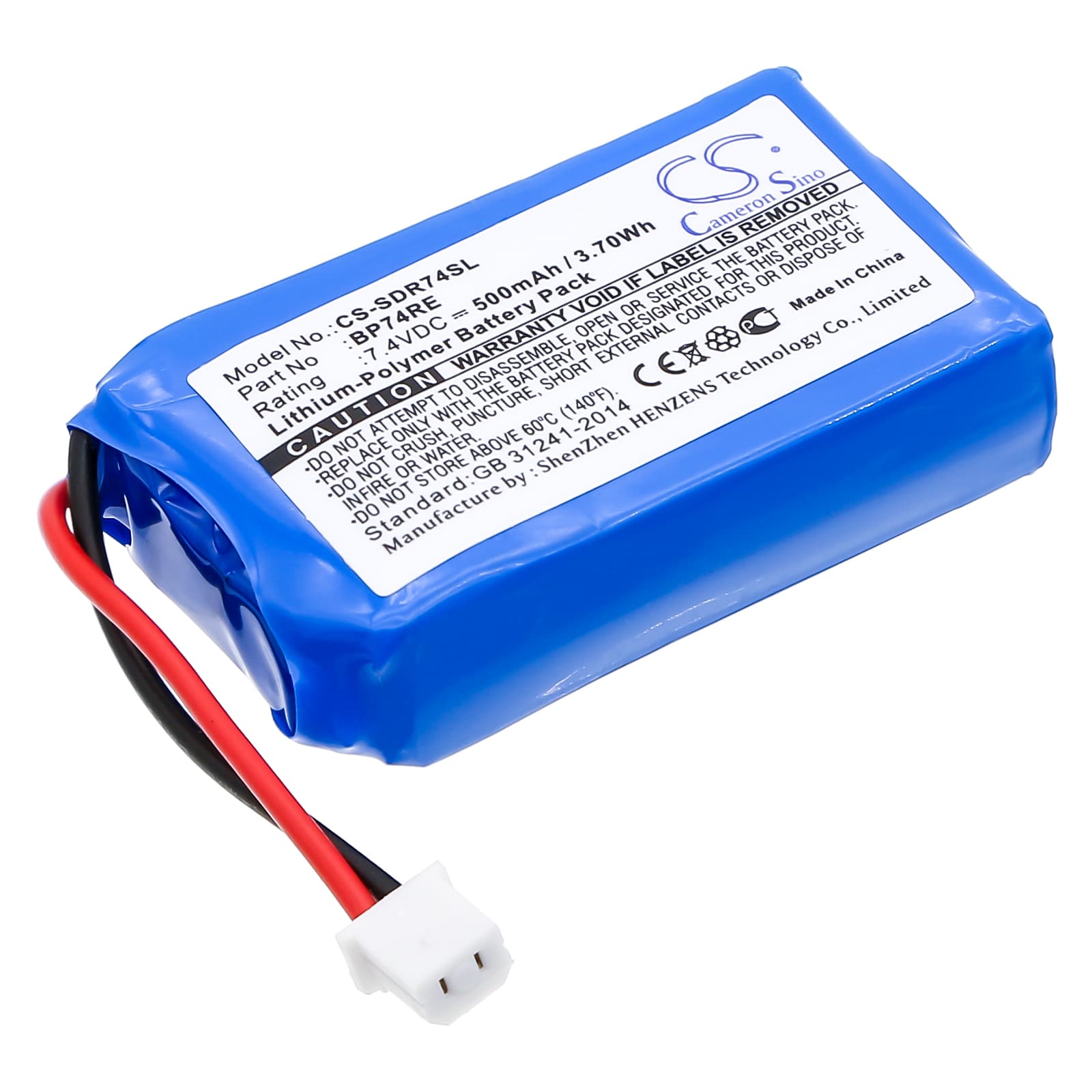

Dogtra EDGE Remote Dog Training Collar — 7.4V Li-Polymer Replacement Battery (BP74RE)
This is a 7.4V, 500mAh Li-Polymer replacement battery for the Dogtra EDGE remote dog training collar system. It fits the handheld transmitter used to send stimulation signals to the receiver collar during training sessions. Compatible models include the EDGE RX, Edge RT Remote, and Edge RT Collar.
- EDGE transmitter platform fit: The EDGE, EDGE RX, and Edge RT variants share the same 7.4V Li-Polymer cell format, connector pin-out, and BMS communication protocol — that's why one battery covers the full EDGE family without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the EDGE transmitter. The BMS accepted the cell without fault flags, held the 7.4V rail cleanly, and the stimulation output remained consistent across test sessions.
- Transmitter storage tip: If the transmitter will sit unused for more than two weeks, power it off completely rather than leaving it in standby. The EDGE transmitter draws a trickle in standby that can pull a Li-Polymer cell below its safe floor, triggering BMS lockout on the next charge attempt.
Why the EDGE transmitter shows a full charge then drops to flat within minutes
This happens when a Li-Polymer cell has been deep-discharged and the BMS is reporting surface charge rather than usable capacity. The cell voltage climbs quickly during charge but collapses under load because the internal resistance has spiked. If the original battery sat depleted for weeks, this is the expected failure mode. A fresh cell eliminates the issue — the BMS on the EDGE transmitter does not recover degraded cells.
EDGE transmitter not powering on after fitting the replacement battery
A new Li-Polymer cell ships at a partial state of charge for transport safety — typically 3.7V to 3.8V per cell. The EDGE transmitter's BMS may refuse to boot if it reads the pack voltage as below its minimum threshold. Connect the transmitter to its charger for at least 15 minutes before pressing the power button. If the charge LED lights and the unit powers on after that initial top-up, the battery and BMS are functioning correctly.
