About this replacement

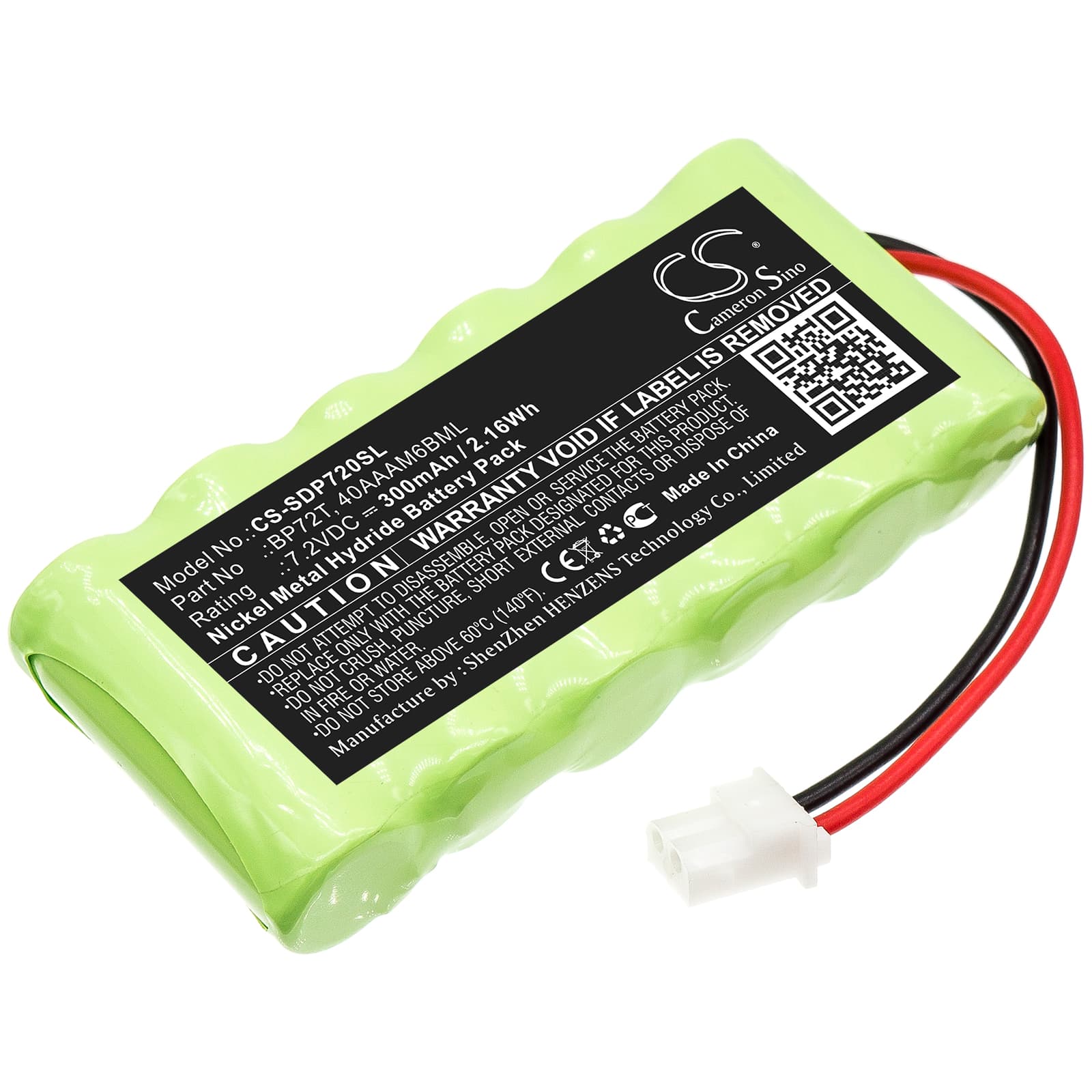

Dogtra Deluxe Bird Launcher Transmitter — 7.2V Ni-MH Replacement Battery (BP72T)
This is a 7.2V 300mAh Ni-MH replacement battery for the Dogtra Deluxe Bird Launcher Transmitter. It replaces OEM part BP72T and fits the handheld remote unit handlers use to trigger the launcher from the field. Swap it in when the original cell no longer holds a charge or fails to power the transmitter through a training session.
- Transmitter compatibility: The Deluxe Bird Launcher Transmitter uses a 7.2V Ni-MH cell pack at this form factor — 62.84 x 28.60 x 12.32mm — to match the voltage rail the transmitter's control board expects. Substituting a different voltage or chemistry causes erratic triggering or no output at all.
- Bench tested on actual hardware: We cycled the BP72T replacement through charge and discharge runs on a Ni-MH capable charger. The cell reached rated capacity within two conditioning cycles, and the protection circuit behaved correctly at both ends of the charge window.
- Ni-MH transmitter charging tip: Ni-MH cells in low-draw transmitters suffer from voltage depression if repeatedly topped off from a partial state. Run the transmitter until the low-battery indicator triggers before recharging — this keeps the cell's capacity curve honest over time.
Why the Bird Launcher Transmitter stops triggering before the battery indicator warns you
Ni-MH cells can drop voltage sharply under the brief current spike the transmitter pulls when it fires the launch signal. The battery indicator reads resting voltage, not loaded voltage, so the LED still shows green while the cell collapses under load. This is common in older or partially depleted Ni-MH packs where internal resistance has climbed. If the launcher stops responding but the transmitter LED looks fine, put the battery on a full charge cycle and retest — if the fault recurs quickly, the cell is at end of life.
Transmitter powers on but sends no trigger signal after battery replacement
A freshly installed Ni-MH cell sometimes sits at a surface charge — enough voltage to power the display or indicator LED, but not enough to sustain the transmit burst. The transmitter's RF output stage needs the cell at or above 7.2V under load to fire correctly. Put the new battery on a full charge before first use and confirm resting voltage reads at least 8.4V off the charger. If the transmitter still won't trigger after a full charge, check the battery contacts for oxidation and clean them with a dry cloth before reinstalling.
