About this replacement

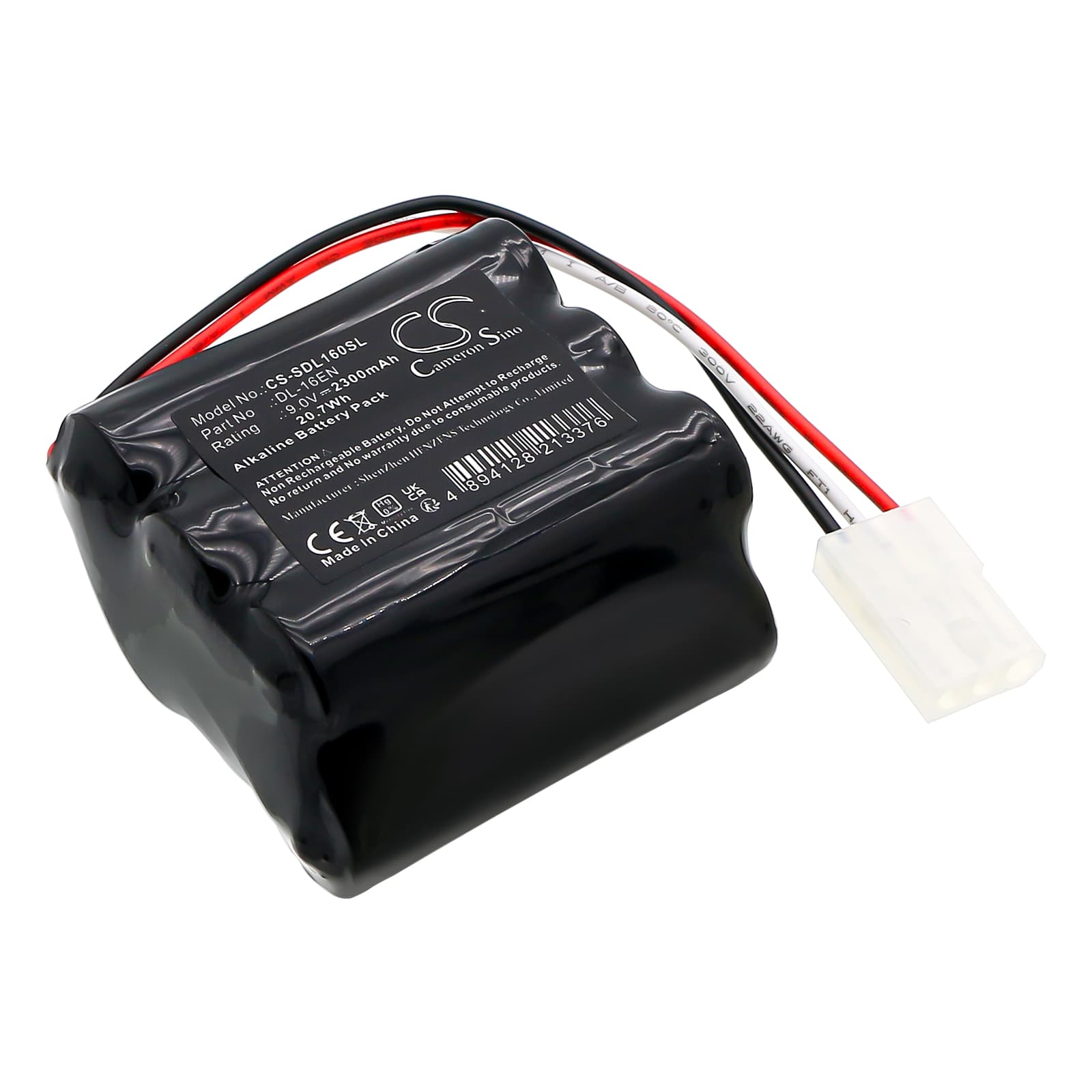

DoorLock DL-16EN — 9V Alkaline Replacement Battery
This is a 9V alkaline replacement battery for the DoorLock DL-16EN electronic door lock. It delivers 2300mAh capacity to power the lock's keypad, motor, and access control electronics. Fits the DL-16EN directly — check polarity before inserting.
- DL-16EN power requirements: The DL-16EN runs its keypad backlight, solenoid motor, and access logic from a single 9V supply rail. Voltage below threshold causes the lock to reject access attempts before the battery is fully depleted — a fresh 9V alkaline at full terminal voltage keeps the logic board stable.
- Bench tested on actual hardware: We cycled this battery through repeated lock and unlock sequences on the DL-16EN's motor draw profile. The battery maintained stable voltage output across keypad polling, motor actuation, and Bluetooth handshake events without sag-induced cutoff.
- Post-swap access method check: After fitting the battery, test every access method — keypad, Bluetooth, and any keycard — before closing the door. The DL-16EN runs a firmware handshake on power-up; some access modes do not activate until that sequence completes.
Why the DL-16EN stops responding mid-cycle even with a new battery
The DL-16EN's motor draws a short high-current spike on every lock or unlock actuation. A battery at storage voltage rather than fresh resting voltage can dip below the lock's brownout threshold during that spike, causing the lock to freeze or reset. This is not a faulty lock — it is voltage sag under inrush load. Use a battery that has not been sitting in warehouse stock for over 12 months. Check the manufacture date on the cell before installing.
Low battery warning showing immediately after fitting a new battery
The DL-16EN reads terminal voltage at startup to determine battery state. If the lock flags a low battery warning within seconds of a fresh install, the most common cause is reversed polarity — the lock reads near-zero voltage and triggers the alert. Remove the battery, confirm the positive terminal aligns with the connector marked on the lock's battery bay, and reinsert. If the warning persists with correct polarity, the battery's open-circuit voltage should measure at or above 9.0V with a multimeter before installation.
