About this replacement

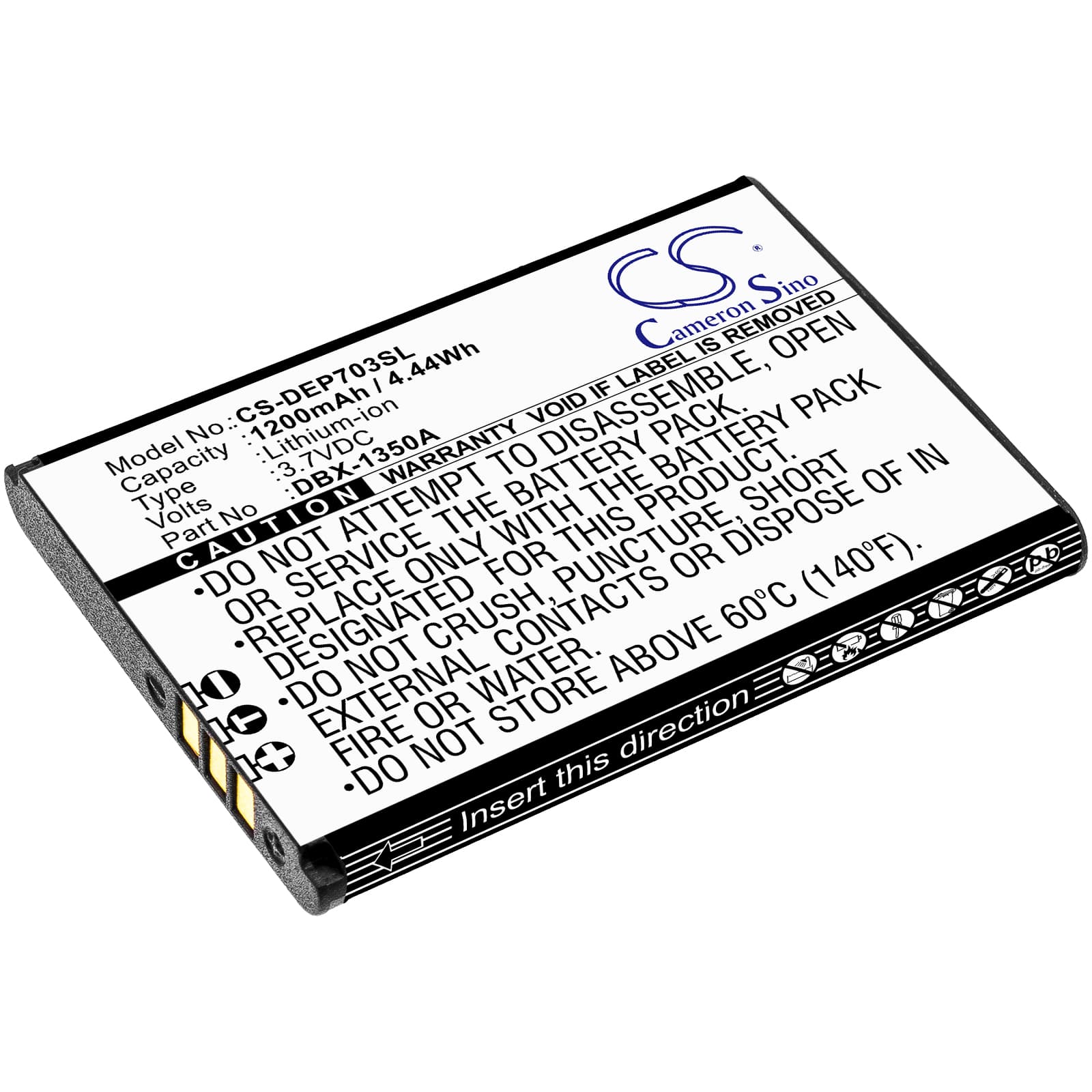

Doro 7030 / 7031 / DFC-0270 / 7080 — 3.7V Li-ion Replacement Battery (DBX-1350A)
The DBX-1350A is a 3.7V, 1200mAh (4.44Wh) Li-ion cell for the Doro 7030 mobile phone. It also fits the 7031, DFC-0270, and 7080 handsets, which share the same battery bay dimensions and connector. If your original cell drains fast, won't hold a charge, or has swollen, this is the direct swap.
- 7030 / 7031 / DFC-0270 / 7080 compatibility: These four Doro models share the same 53.54 × 38.30 × 5.56mm footprint, 3.7V nominal rail, and three-contact connector. The BMS handshake across all four is identical, so one cell covers the range without modification.
- Bench tested on actual hardware: We cycled this cell through charge and load on the bench. The BMS responded correctly to cutoff at full charge and low-voltage protection triggered cleanly before cell damage voltage — no runaway, no false trips.
- Fuel gauge recalibration after install: On first use after fitting this cell, run it down to auto-shutdown, then charge uninterrupted to 100%. This gives the phone's fuel gauge IC one complete reference cycle against the new cell's discharge curve — skip this and the percentage readout will drift.
Why the Doro 7030 reports wrong battery percentage after a cell swap
The fuel gauge IC stores a discharge curve from the original cell. A new cell with a different internal resistance profile will read against that old curve and output an inaccurate percentage. The gauge needs at least one full discharge-to-shutdown followed by an uninterrupted charge to 100% before it builds a new reference map. Until that cycle completes, readings of 80% jumping to 40% or sudden shutdowns at 20% are the gauge — not a fault with the cell itself.
Doro 7030 won't power on after the replacement battery sat in storage
If the replacement cell discharged below approximately 2.5V during storage, the BMS locks the output rail to protect the cell from damage. The phone shows nothing — no charging screen, no vibration. Connect the phone to a low-current charger (a standard 5V USB wall adapter, not a fast charger) and leave it for 20–30 minutes without pressing any buttons. Once the BMS detects voltage has recovered above the lockout threshold, it re-enables output and the phone will begin a normal boot. If it still shows nothing after 30 minutes, check that the charger is delivering at least 5V 0.5A.
