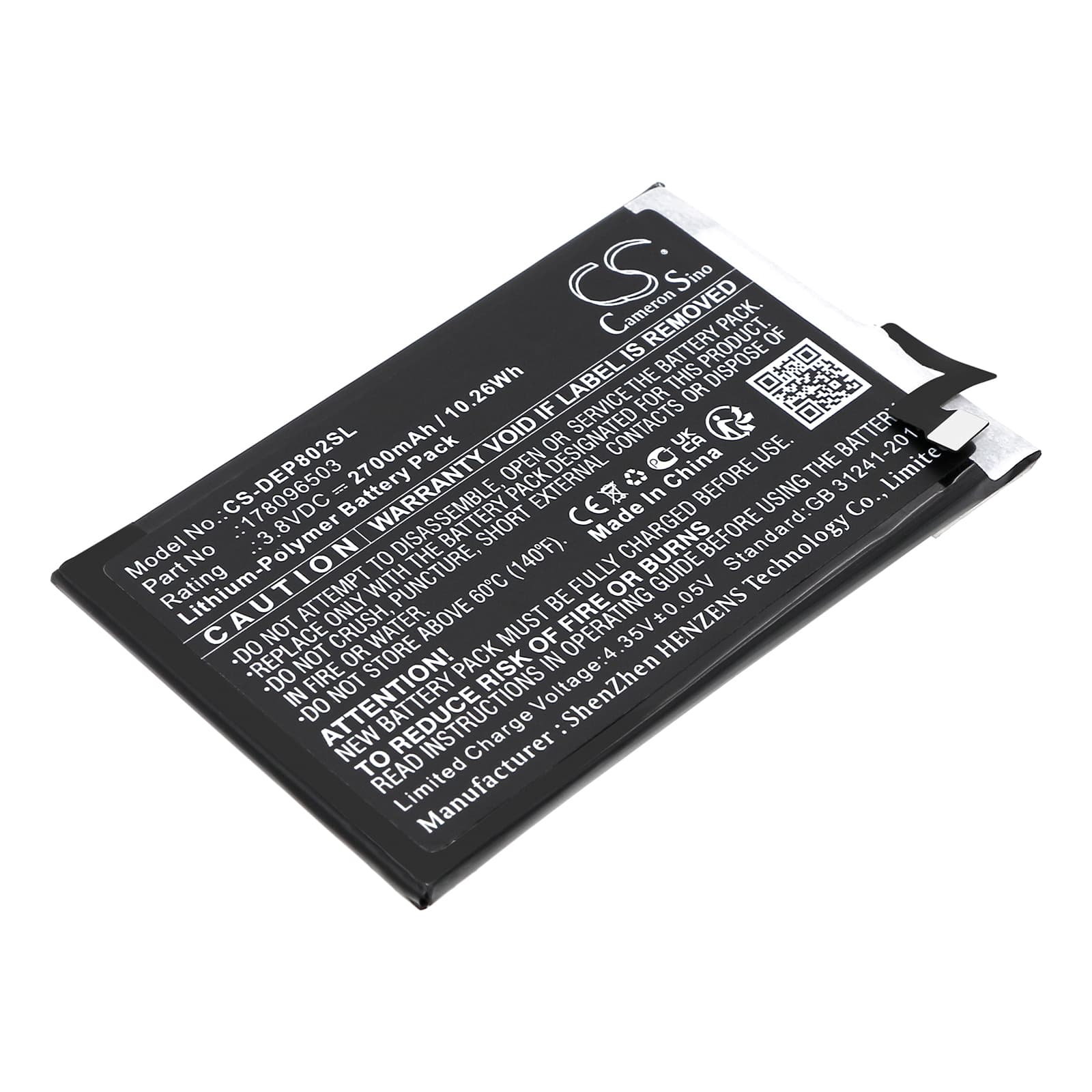

Doro 8020X / 8020X LTE — 3.8V Li-Polymer Replacement Battery (178096503)
This 3.8V, 2700mAh lithium-polymer cell replaces the original battery in the Doro 8020X and 8020X LTE. Both models share the same battery bay dimensions and BMS handshake, so one cell covers both variants. Dimensions are 86.30 × 53.10 × 4.00mm — measure your original before fitting if the phone has been repaired before.
- 8020X and 8020X LTE compatibility: Both handsets run the same 3.8V power rail and use identical connector pinouts and BMS communication protocol. The LTE modem adds a higher intermittent draw, but the cell and management circuit are shared across both models.
- Bench tested on actual hardware: We cycled this cell through charge, standby, and voice-call load. The BMS held within spec at all three states, and the protection circuit tripped correctly at the low-voltage cutoff threshold during a controlled drain test.
- Fuel gauge recalibration after swap: On first use after installation, disable fast charging and run one full discharge-to-charge cycle at standard rate. This lets the fuel gauge IC map its coulomb counter against the new cell's actual discharge curve before any high-current charging session begins.
Sudden shutdown at 20–30% on the Doro 8020X after a cell swap
This is a voltage cliff issue, not a capacity fault. The fuel gauge IC in the 8020X was calibrated against the old cell's discharge curve. The new cell hits its minimum sustainable voltage under modem or screen load at a higher state-of-charge than the gauge predicts, so the phone cuts out before the percentage reaches zero. One complete discharge cycle — drained until the phone shuts itself off, then charged to 100% at standard rate — recalibrates the coulomb counter. After that cycle, shutdown at 20–30% stops occurring on most units.
Phone will not power on after sitting in storage with the new battery installed
Li-polymer cells ship at a partial state of charge. If the phone sat unused for several weeks after installation, the cell may have drained below the BMS lockout threshold of approximately 2.5V. The protection circuit disables output to prevent cell damage, and the phone appears completely dead. Connect the original charger — not a USB hub or low-output port — and leave it for 20–30 minutes without pressing the power button. The BMS needs trickle current to recover above the 2.5V re-enable threshold before the phone will respond.
