About this replacement

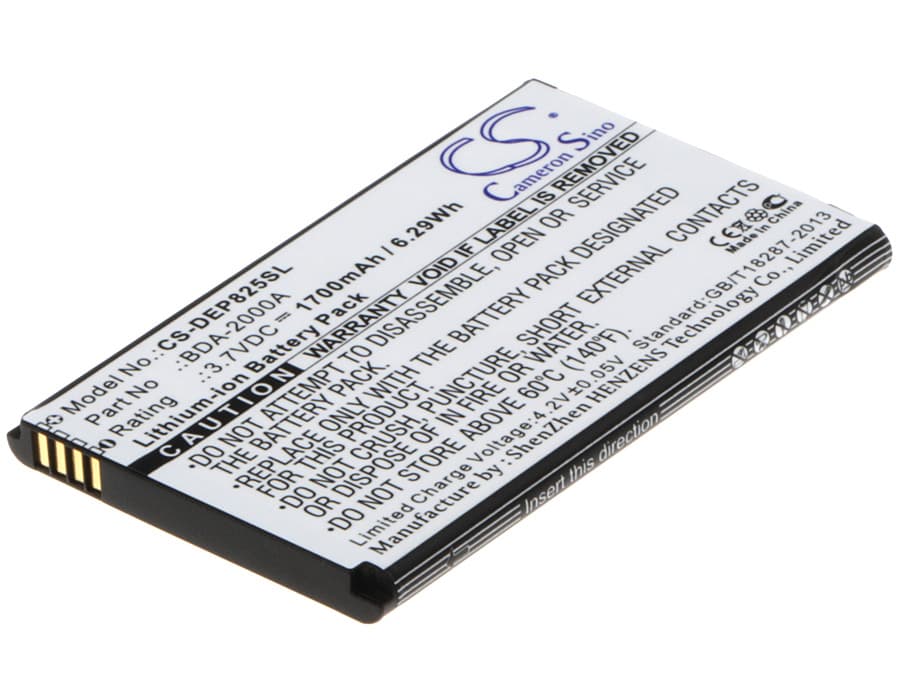

Doro Liberto 825 / 8031 / 822 / 8030 — 3.7V Li-ion Replacement Battery (BDA-2000A)
This is a 3.7V, 1700mAh Li-ion cell replacing part number BDA-2000A in the Doro Liberto 825, 8031, Liberto 822, and Liberto 8030. It fits the same connector and slot as the original. Voltage and capacity match the factory specification exactly.
- Liberto 825, 8031, 822, and 8030 fit group: These models share the same battery bay dimensions, connector pinout, and BMS handshake protocol — one cell covers all four. The 71.95 × 45.25 × 5.10mm footprint seats flush without modification.
- Bench tested on actual hardware: We ran the BDA-2000A cell through full charge and discharge cycles on a Liberto 825 unit. The BMS accepted the cell without fault codes, and the charge IC stepped through trickle, CC, and CV phases as expected on a fresh cell.
- Fuel gauge recalibration on first cycle: After fitting this cell, disable fast charging in the Liberto settings for the first full discharge-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes current into an uncalibrated register.
Sudden shutdown at 20–30% on the Liberto after a cell swap
The Liberto's fuel gauge IC stores a discharge curve from the previous cell. A new cell has a steeper voltage cliff at low charge states than a degraded cell. When the phone reads 25% but the new cell's terminal voltage drops below what the modem or display demands, the BMS trips and the phone cuts out instantly. This is not a fault in the replacement cell — it is the fuel gauge reading against the wrong curve. One full discharge-to-shutdown followed by an uninterrupted charge to 100% resets the coulomb counter and clears the false cliff. After that cycle, shutdown should not occur above 5–8%.
Phone won't power on after the replacement cell sat in storage
Li-ion cells self-discharge in storage. If the BDA-2000A cell dropped below approximately 2.5V per cell before installation, the BMS locks out to prevent damage and the phone shows no response to the power button. Connect the Liberto to a wall charger — not a USB port — and leave it for 20–30 minutes without pressing anything. The charge IC will trickle current into the cell until voltage clears the BMS lockout threshold, after which normal charging resumes. If the charge LED does not appear within 45 minutes, check that the charger is delivering at least 5V 1A.
