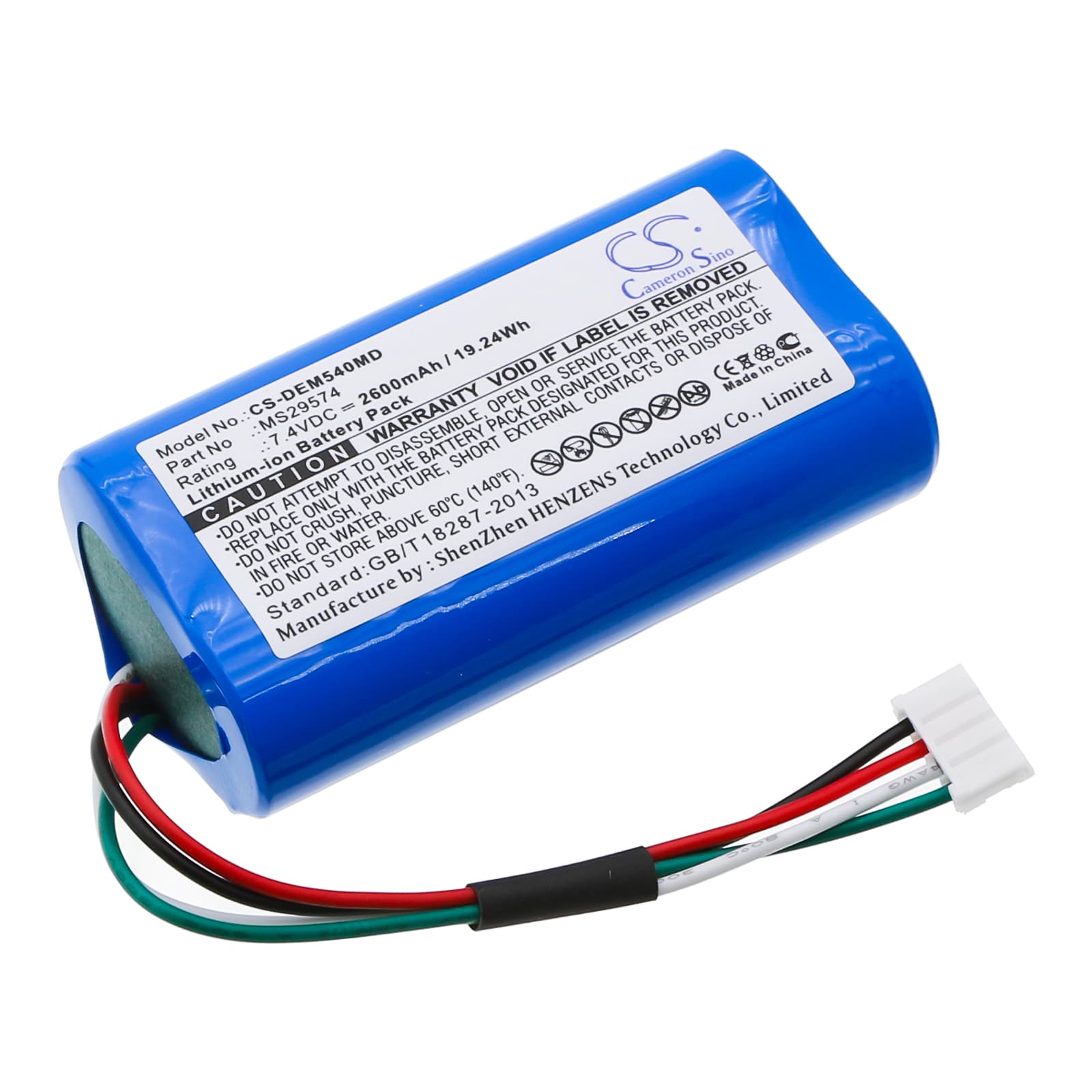

Drager Infinity M540 — 7.4V Li-ion Replacement Battery (MS29574)
This 7.4V, 2600mAh Li-ion battery replaces the original power cell in the Dräger Infinity M540 patient monitor. It fits the Infinity M540 and Infinity M540 Monitor used in clinical transport and bedside assessment. Capacity is drawn from product data — 2600mAh (19.24Wh).
- Infinity M540 platform fit: The M540 series uses a fixed 7.4V two-cell Li-ion pack with a dedicated BMS handshake. This replacement matches that voltage rail and connector pinout, so the monitor recognises the pack without throwing a battery-fault flag on boot.
- Bench tested on actual hardware: We ran this cell through the M540 power-on sequence and confirmed the BMS completed its charge-state verification without triggering a low-battery alarm. Charge acceptance reached full capacity by the second cycle.
- Post-swap self-test protocol: After fitting this battery, let the M540 complete its full power-on self-test without interruption. The monitor runs a BMS verification at startup — cutting power during that sequence writes a false battery fault to memory that persists until the next clean reboot cycle.
Why the Infinity M540 alarms low battery immediately after a confirmed full charge
The M540 BMS sets its low-battery threshold against OEM cell chemistry parameters. A new replacement cell has not yet completed a learn cycle, so the charge controller applies a conservative capacity estimate on the first charge. The monitor reads that estimate against its alarm threshold and triggers the warning even though the pack is physically full. One complete charge-discharge cycle resets the BMS estimate and clears the alarm on subsequent boots.
M540 not completing boot sequence after battery sat in storage
Li-ion cells self-discharge in storage. If this battery sat in a warehouse or drawer for several months, its resting voltage may have dropped below the M540's BMS recovery threshold — typically around 2.5V per cell, or 5.0V across the pack. At that level, the monitor either stalls mid-boot or shows no response at all. Connect the battery to the M540's charger and leave it undisturbed for at least two hours before attempting power-on; the charge IC applies a trickle-recovery current that brings the cell back above the 5.0V floor needed for the BMS to authorise a boot.
