About this replacement

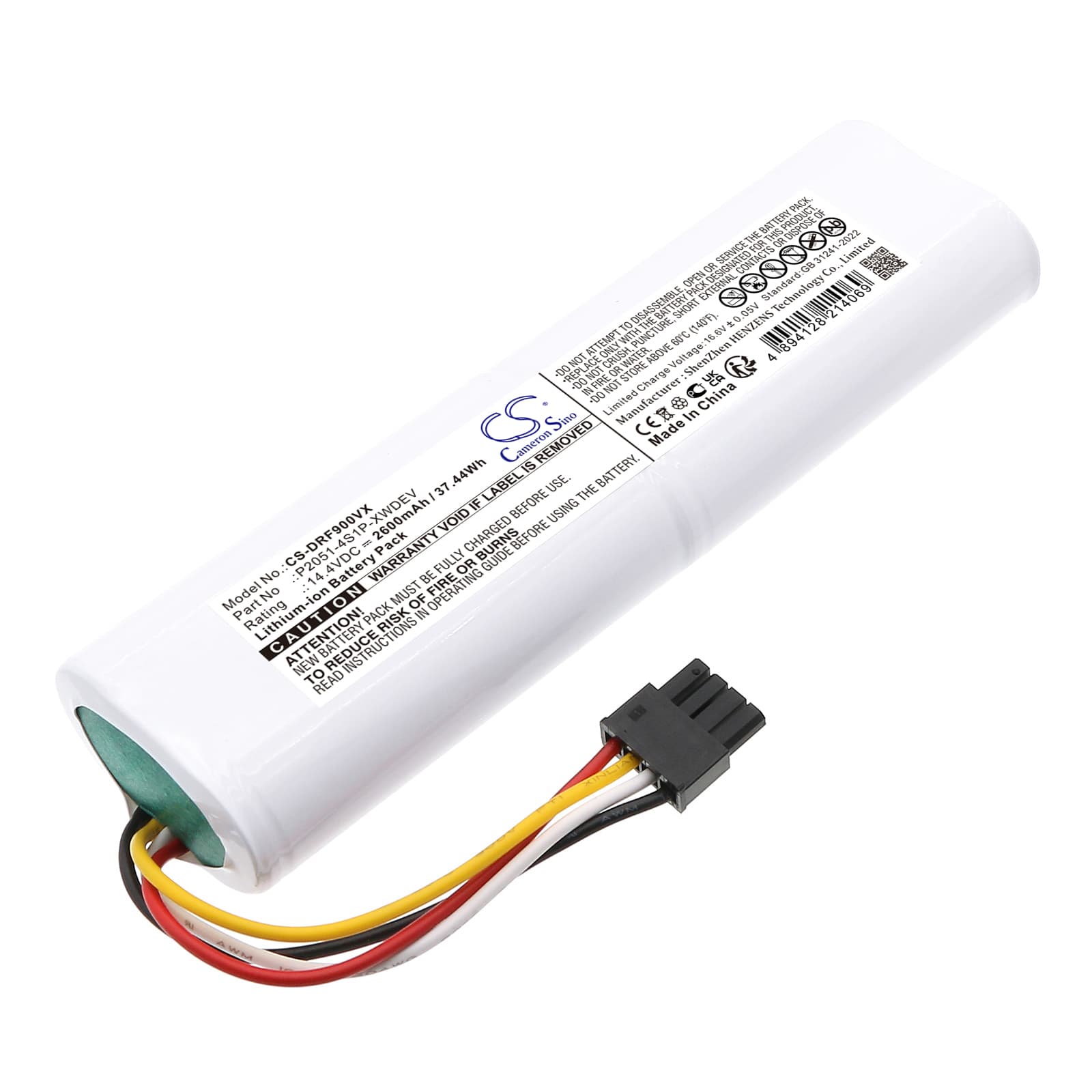

Dreame D9 Plus / F9 Pro Series — 14.4V Li-ion Replacement Battery (P2051-4S1P-XWDEV)
This 14.4V 2600mAh lithium-ion battery pack replaces part number P2051-4S1P-XWDEV in the Dreame D9 Plus, F9 Pro, RLD11GD, and RLF22GA cordless stick vacuums. It is a direct swap for the original cell when suction power or runtime has noticeably declined. Capacity is 37.44Wh — identical to the factory specification.
- D9 Plus / F9 Pro platform fit: These four models share the same 14.4V battery bay, connector pinout, and BMS handshake protocol, which is why one pack covers all of them. The motor controller on each reads the same BMS register set before allowing full-power operation.
- Bench tested on actual hardware: We cycled this pack through load tests simulating the Dreame motor's draw across standard and MAX suction modes. The BMS held stable cutoff thresholds at both loads, and cell voltage recovery between cycles matched the factory pack's profile.
- Dock charging habit on Dreame vacuums: Do not leave the vacuum sitting on the charging dock continuously. Dreame cordless vacuums on permanent dock charge develop capacity fade significantly faster than units charged only when depleted. Charge to full, then remove it from the dock.
Cordless vacuum losing suction before the battery indicator reaches low
This happens when the motor is pulling more current than the battery's BMS expects — usually because the filter is partially blocked, not because the cell is depleted. A restricted filter forces the motor to work harder, which spikes current draw and triggers an undervoltage or overcurrent response in the BMS before the charge level is actually low. The vacuum reads as "low battery" when it is really reacting to a sustained current spike. Clean or replace the filter first, then retest — if the problem clears, the battery is not the fault.
Motor cuts out mid-clean then recovers after a few seconds
This is a BMS overcurrent trip, not a faulty battery. It occurs when suction is restricted — a clogged filter, a tangled brush roll, or a blockage in the airpath forces the motor to draw sustained current above the BMS cutoff threshold. The BMS disconnects the output to protect the cells, then re-enables once current demand drops. Clear the airpath fully, check the brush roll for hair wrap, and confirm the filter is clean — the cutoff threshold on this pack sits at the same level as the original, so a clean airpath resolves the trip.
