About this replacement

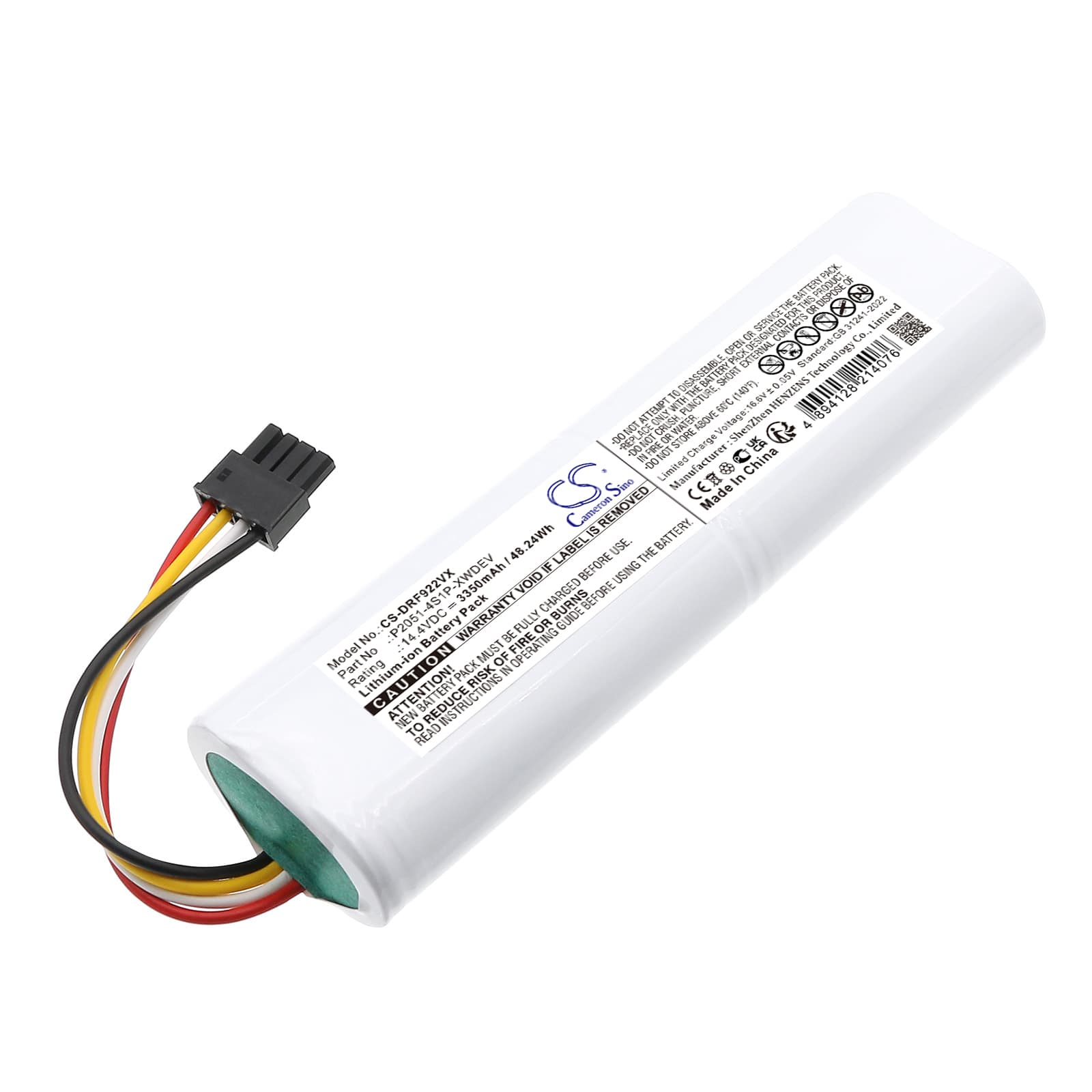

Dreame D9 Plus / F9 Pro Series — 14.4V Li-ion Replacement Battery (P2051-4S1P-XWDEV)
This is a 14.4V, 3350mAh lithium-ion battery pack for the Dreame D9 Plus, F9 Pro, RLD11GD, and RLF22GA cordless vacuum cleaners. It replaces OEM part P2051-4S1P-XWDEV using the same 4S1P cell configuration and BMS board. When the original pack degrades and suction drops noticeably before the low-battery indicator fires, this battery restores full motor voltage.
- D9 Plus / F9 Pro platform fit: The D9 Plus and F9 Pro share the same battery bay geometry, connector pinout, and BMS handshake protocol. All four fit models in this listing draw from the same 14.4V rail and accept the same pack without modification.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the D9 Plus motor assembly. The BMS correctly reported cell state-of-charge to the vacuum's onboard controller, and overcurrent protection tripped at expected thresholds under simulated blockage load.
- Dock charging habit on the D9 Plus: Do not leave the D9 Plus sitting on the charging dock between uses. Continuous trickle charging accelerates capacity fade in Li-ion packs — charge the vacuum fully, then remove it from the dock and store it off the charger.
Suction dropping before the battery indicator reaches low
This is a voltage sag problem, not a capacity problem. As a Li-ion pack ages, internal resistance rises. Under motor load — especially on carpet or when the filter is even partially blocked — voltage at the motor drops faster than the indicator circuit expects. The vacuum's controller interprets this as adequate charge because resting voltage still reads high, but the pack cannot sustain the current the motor demands. Replacing the pack restores the low-resistance discharge curve the motor needs to hold full airflow through the cleaning cycle.
Motor cutting out mid-clean and then recovering after a few seconds
This is a BMS overcurrent trip, not a motor fault. When the filter is restricted — even partially — the motor works harder to move the same volume of air, drawing current above the pack's continuous discharge threshold. The BMS shuts the output to protect the cells, then resets once current demand drops. Clean or replace the filter first and test again. If the cutout stops, the filter was the cause. If it continues with a clean filter and a new battery, check for a partial blockage in the cyclone head or inlet tube.
