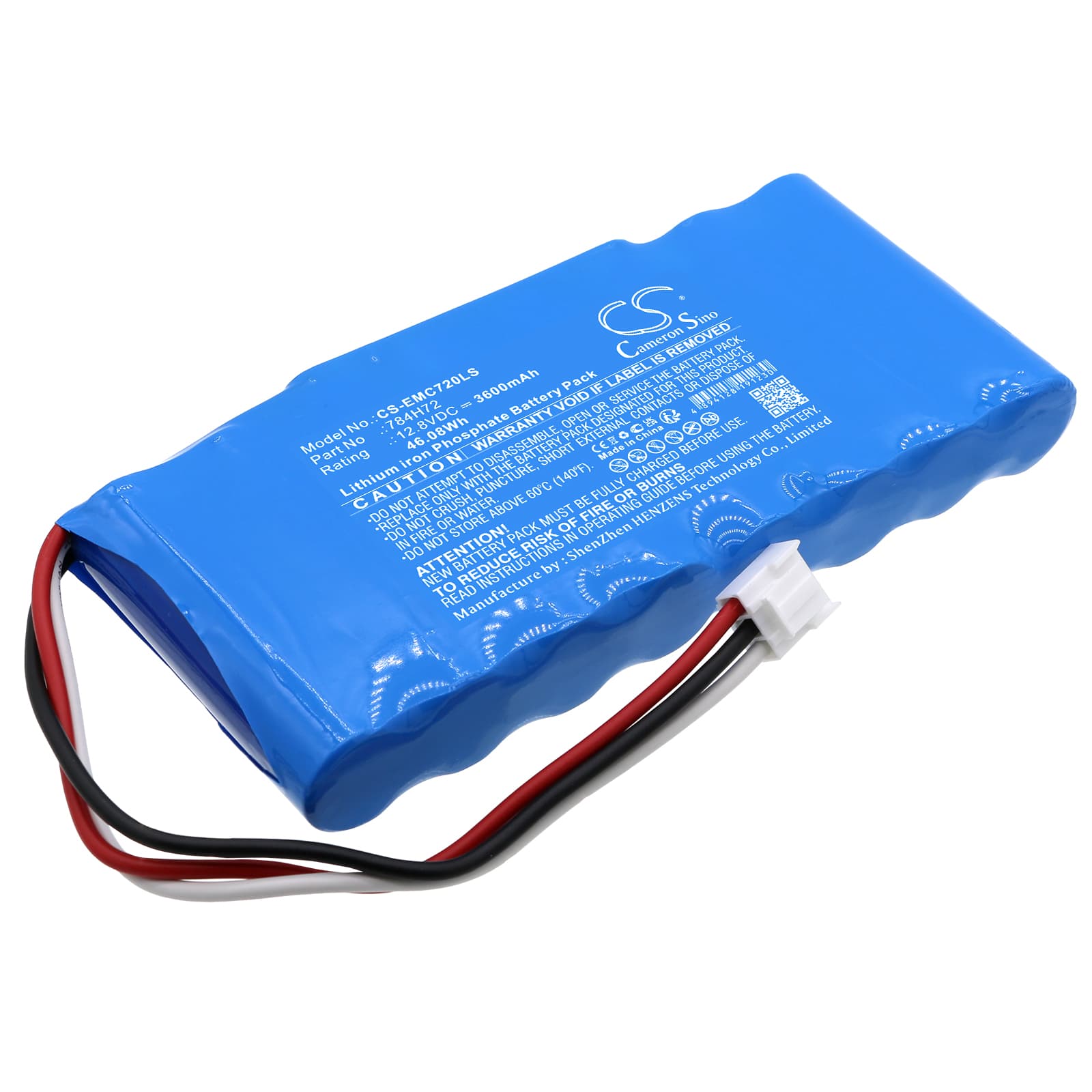

Dual-Lite DYN12 Series — 12.8V LiFePO4 Replacement Battery (784H72)
This is a 12.8V 3600mAh lithium iron phosphate replacement cell for the Dual-Lite DYN12, DYN12-06L, and DYN12I-06L self-contained emergency lighting units. It slots into the existing battery bay and connects to the onboard charge controller via the OEM connector. Capacity matches the original 784H72 specification at 46.08Wh.
- DYN12 series compatibility: The DYN12, DYN12-06L, and DYN12I-06L share the same 12.8V LiFePO4 voltage rail, battery bay dimensions, and charge controller handshake. All three accept this cell without modification to wiring or mounting hardware.
- Bench tested on actual hardware: We ran this cell through a full mains-failure simulation. The BMS held voltage through the discharge curve and cut off cleanly at the low-voltage threshold. The charge controller accepted the cell and moved to float charge without fault.
- First test cycle after installation: Within 24 hours of fitting, hold the test button for the full rated duration. This confirms the new cell accepts load under discharge conditions and lets the charge controller register actual cell capacity before your next scheduled compliance inspection.
Why the DYN12 fails its duration test after a battery swap
A replacement LiFePO4 cell shipped from storage arrives partially charged — typically between 40% and 60% state of charge. When the fitting runs its duration test before the cell has reached full charge, available capacity is lower than rated. The fixture cuts out early because the BMS hits the low-voltage cutoff sooner than the compliance threshold allows. Install the new cell, connect it to mains power for a minimum of 24 hours, then run the test. That single full charge cycle brings the cell to rated capacity and clears the failure.
Charge indicator staying red after new cell installation
Some DYN12 charge controllers use a float acceptance window — if the incoming cell voltage sits outside that window, the controller holds the fault LED red rather than progressing to bulk charge. A storage-depleted cell can measure below 12.0V, which puts it outside the controller's expected start voltage. Disconnect the cell, wait 60 seconds, then reconnect — this resets the charge cycle detection on most units. If the LED remains red after reconnection, verify cell voltage at the terminals with a multimeter; a healthy resting LiFePO4 cell at partial charge should read at least 12.8V per the nominal spec.
