About this replacement

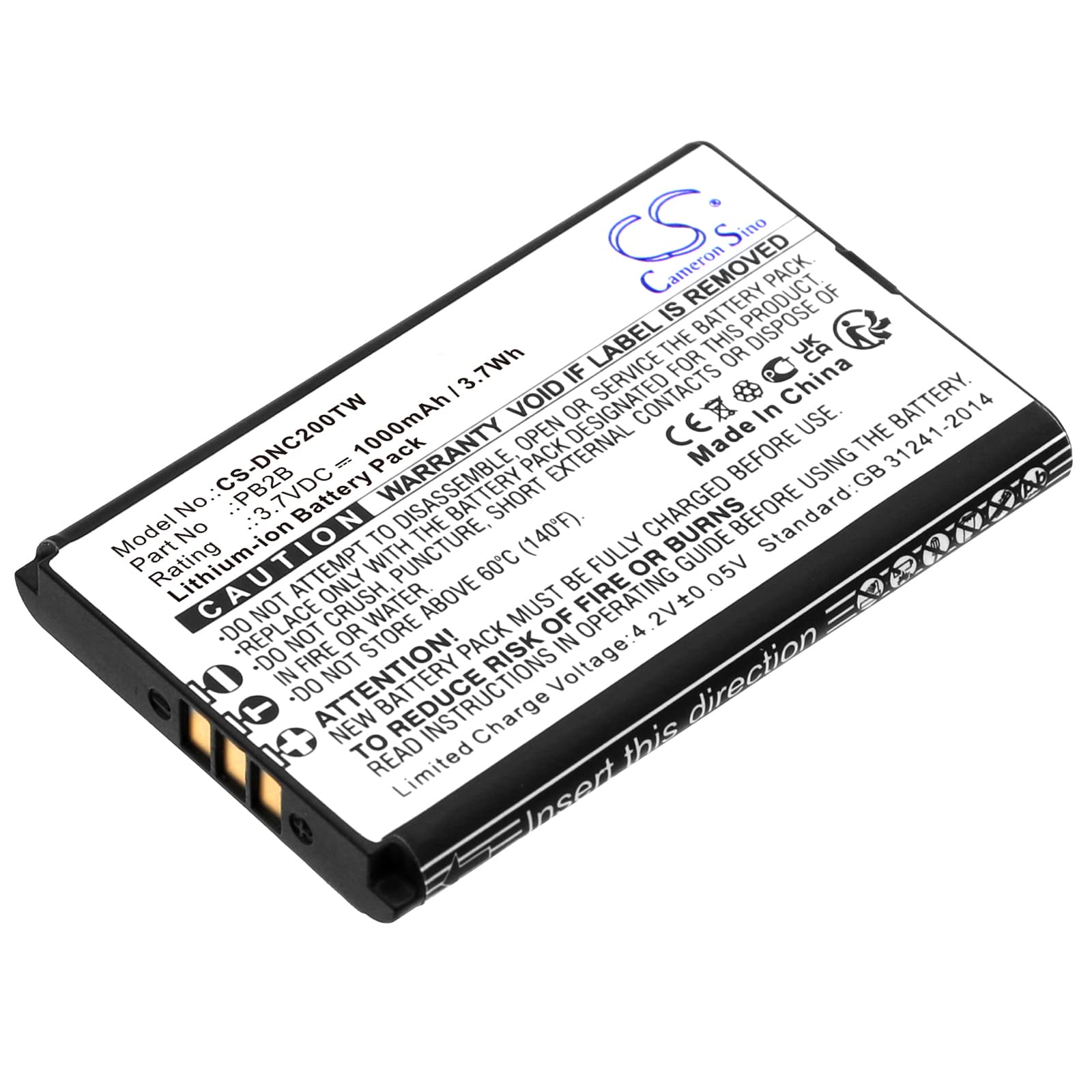

Dynascan 2B — 3.7V Li-ion Replacement Battery (PB2B)
This is a 3.7V, 1000mAh lithium-ion replacement battery for the Dynascan 2B two-way radio. It carries OEM part number PB2B and slots directly into the 2B handset. At 53.40 x 34.00 x 5.60mm, the physical footprint matches the original pack.
- Dynascan 2B platform fit: The 2B runs a single-cell 3.7V architecture with a low-current BMS suited to compact handheld radios. This pack matches that voltage rail and connector pinout, so the radio's charge circuit reads the new cell correctly without modification.
- Bench tested on actual hardware: We cycled this pack through transmit and standby loads matching the 2B's draw profile. The BMS held cutoff cleanly at both the high-current PTT spike and trickle standby drain without tripping into lockout.
- First insertion — contact check: If the charger shows a fault LED on first insertion, remove the pack, wipe the contact pads with a dry cloth, and reseat firmly. The 2B charger dock requires a clean contact cycle to complete the BMS handshake before charging begins.
Why the Dynascan 2B cuts out mid-transmission on a new battery
A new lithium-ion cell ships at storage voltage — typically 3.6V to 3.65V, not a full 3.7V charge. When PTT is pressed, transmit current spikes sharply, and the BMS sees the voltage dip under that load as a potential undervoltage condition. On a partially charged new pack, that dip can trip the overcurrent or low-voltage cutoff before the radio completes a transmission. The fix is straightforward: run a full charge cycle before first use, bringing the cell to its rated ceiling so the BMS has adequate headroom during TX spikes.
Bar indicator showing fewer bars than expected after fitting the PB2B
The Dynascan 2B reads battery level using voltage-threshold steps — each bar corresponds to a voltage band, not a fuel gauge percentage. A new pack at storage voltage sits in the lower threshold band and displays one or two bars even though the cell is not depleted. This is a voltage-state reading, not a defect. Charge the pack fully in the dock and the indicator will advance to the expected level once cell voltage reaches the top threshold.
