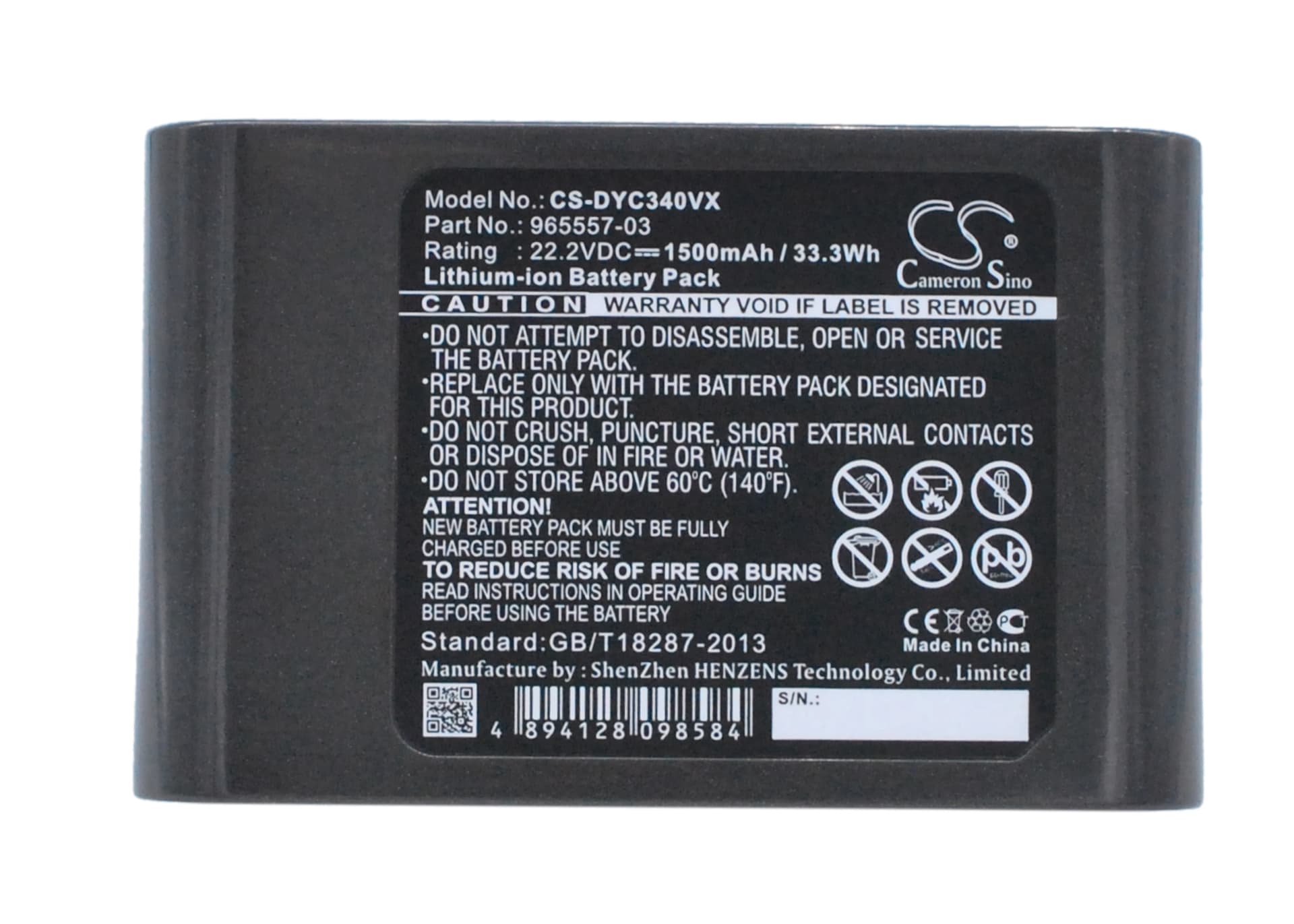

Dyson DC31 Animal / DC34 / DC35 Series — 22.2V Li-ion Replacement Battery (965557-03)
This is a 22.2V, 1500mAh lithium-ion replacement battery for the Dyson DC31 Animal, DC34, DC34 Animal, and DC35 cordless handheld vacuums. It cross-references OEM part numbers 965557-03, 917083-01, 202932-01, 202932-02, and related variants. Swap it in when the original cell no longer holds enough charge to complete a cleaning pass.
- DC31 / DC34 / DC35 platform fit: These models share the same 22.2V six-cell Li-ion pack format, connector pinout, and BMS handshake protocol — that is why one part number spans the range. A replacement that passes the BMS negotiation on the DC31 Animal will power up identically on the DC35.
- Bench tested on actual hardware: We ran this cell through full charge-discharge cycles on the DC34 platform. The BMS accepted the pack without fault codes, current draw through the motor stayed within rated limits, and the charge circuit terminated correctly at capacity.
- Dock charging habit on cordless vacuums: Do not leave this vacuum sitting on the dock permanently between uses. Continuous trickle charge after a full state-of-charge degrades Li-ion cells faster than normal cycling. Charge to full, remove from dock, and reconnect only when the pack is depleted.
Suction dropping before the battery indicator reaches low
The DC31 and DC34 motors pull higher current the moment airflow is restricted — a partially blocked filter forces the motor to work harder to maintain suction pressure. That extra draw causes the battery voltage to sag under load well before the indicator registers a low state. The BMS reads the sag as a near-depleted pack and begins throttling motor power to protect the cells. Clean or replace the post-motor filter first; if suction restores to normal, the battery was not the fault.
Motor cuts out mid-use then recovers after a short pause
This is a BMS overcurrent trip, not a depleted pack. When the vacuum runs against a sustained blockage or a very dense carpet pile, instantaneous current spikes past the BMS protection threshold and the pack disconnects. A 30–60 second pause lets the BMS reset and the motor restarts. Clear any blockage in the wand or bin inlet, then check the filter — restricted airflow is the trigger in most cases. If trips continue on an unblocked machine, measure pack voltage at rest; a healthy cell at partial charge should read above 20V.
