About this replacement

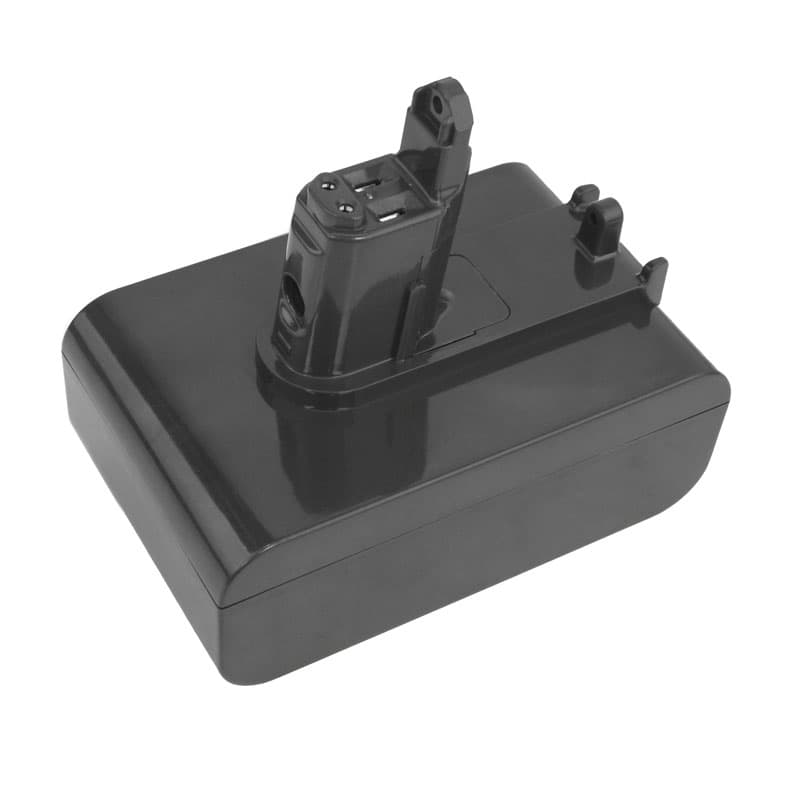

Dyson DC31 Animal / DC34 / DC35 Series — 22.8V Li-ion Replacement Battery (965557-03)
This is a 22.8V, 5000mAh (114Wh) lithium-ion battery for Dyson DC31 Animal, DC34, DC34 Animal, DC35, and related handheld cordless vacuums. It replaces OEM part numbers including 965557-03, 917083-01, 202932-01, 202932-02, and 965557-06. When the original cell degrades and suction drops off early, this swap restores full motor voltage to the unit.
- DC31 / DC34 / DC35 platform compatibility: These models share the same 22.8V battery rail, connector format, and BMS handshake protocol. Swapping between them works because Dyson standardised the cell block and communication logic across this handheld platform generation.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a DC35 unit. The BMS cleared the low-voltage lockout flag correctly, the motor spun to full speed on first trigger pull, and the charge indicator responded accurately across all LED segments.
- Dock charging habit on Dyson handhelds: Do not leave the vacuum sitting on the wall dock permanently between uses. Dyson handhelds on continuous dock charge develop capacity fade significantly faster than units charged only when depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
On the DC31 and DC35, the motor controller pulls harder when airflow is restricted — a partially blocked filter forces the motor to draw above its rated current just to maintain suction. The BMS reads this elevated draw as a near-depletion event and steps down voltage to protect the cell. The battery itself still has capacity, but the BMS has already throttled output. Clean or replace the post-motor filter first, then retest before assuming the battery is at fault.
Motor cutting out mid-clean and then recovering after a few seconds
This is a BMS overcurrent trip, not a dead cell. When sustained suction restriction drives current past the BMS threshold — common when the cyclone block is partially clogged — the protection circuit opens to prevent cell damage, killing the motor. The BMS resets automatically once current demand drops, which is why power returns after a short pause. Clear the cyclone inlet and filter before the next run, and confirm cell voltage reads above 20V on a multimeter at the terminals after a full charge.
