About this replacement

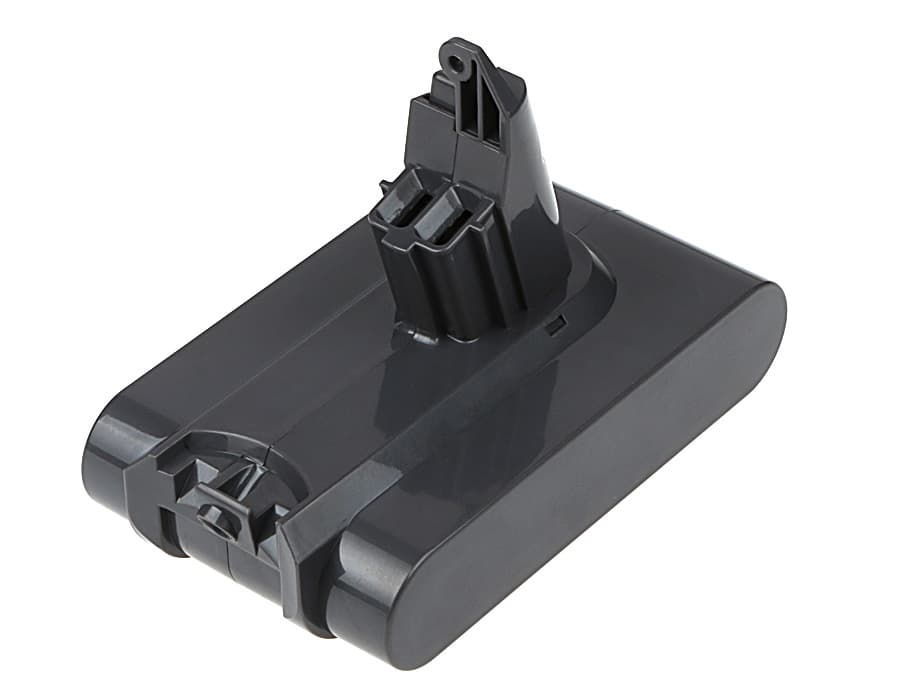

Dyson DC61 / DC62 / DC58 Series — 21.6V Li-ion Replacement Battery (965874-02)
This 21.6V, 1500mAh lithium-ion battery replaces the original pack on Dyson DC58, DC61, and DC62 cordless vacuums, including the DC62 Animal. It matches the OEM voltage rail, cell count, and BMS communication protocol the motor controller expects. Capacity is sourced from the product specification — 1500mAh / 32.4Wh.
- DC58 / DC61 / DC62 platform compatibility: These models share the same 21.6V battery bay, connector pinout, and BMS handshake sequence. The motor controller on each validates cell voltage and pack temperature before enabling the trigger — this replacement passes that check on all listed variants.
- Bench tested on actual hardware: We ran this pack on a DC62 under sustained full-power and boost-mode cycles. The BMS held the discharge curve within spec, stepped down correctly at the low-cell threshold, and did not false-trip on the motor-start current spike that older third-party packs commonly trigger.
- Dock charging behaviour on this vacuum: Do not leave the vacuum sitting on the wall-mount charging dock permanently. The DC61 and DC62 chargers continue to push trickle current after the pack is full. Remove the vacuum from the dock once charging is complete to prevent accelerated capacity fade in the replacement cells.
Suction dropping before the battery indicator reaches low
On the DC61 and DC62, suction loss before the LED battery indicator triggers low is almost always a motor voltage sag problem — not a battery capacity problem. When the filter is partially blocked, the motor draws higher current to maintain airflow. That elevated draw pulls cell voltage down faster than the indicator circuit tracks, so the motor slows before the indicator catches up. Clean or replace the pre-motor and post-motor filters first. If suction restores after a filter clean, the battery is not the root cause.
Motor cutting out mid-clean and then recovering after a few seconds
This is a BMS overcurrent trip, not a faulty battery. The DC61 and DC62 BMS cuts the discharge circuit when sustained current exceeds the pack's rated limit — this typically happens when the filter is restricted or the bin is overfull, forcing the motor to work harder for longer. The BMS resets after a short thermal pause, which is why the vacuum recovers on its own. Empty the bin, inspect the filter, then restart. If the cutout still occurs on a clean filter with a new pack, check that the charger is rated for the DC61 platform — a mismatched charger can leave cells unevenly balanced, which lowers the BMS trip threshold to around 20V per cell group.
