About this replacement

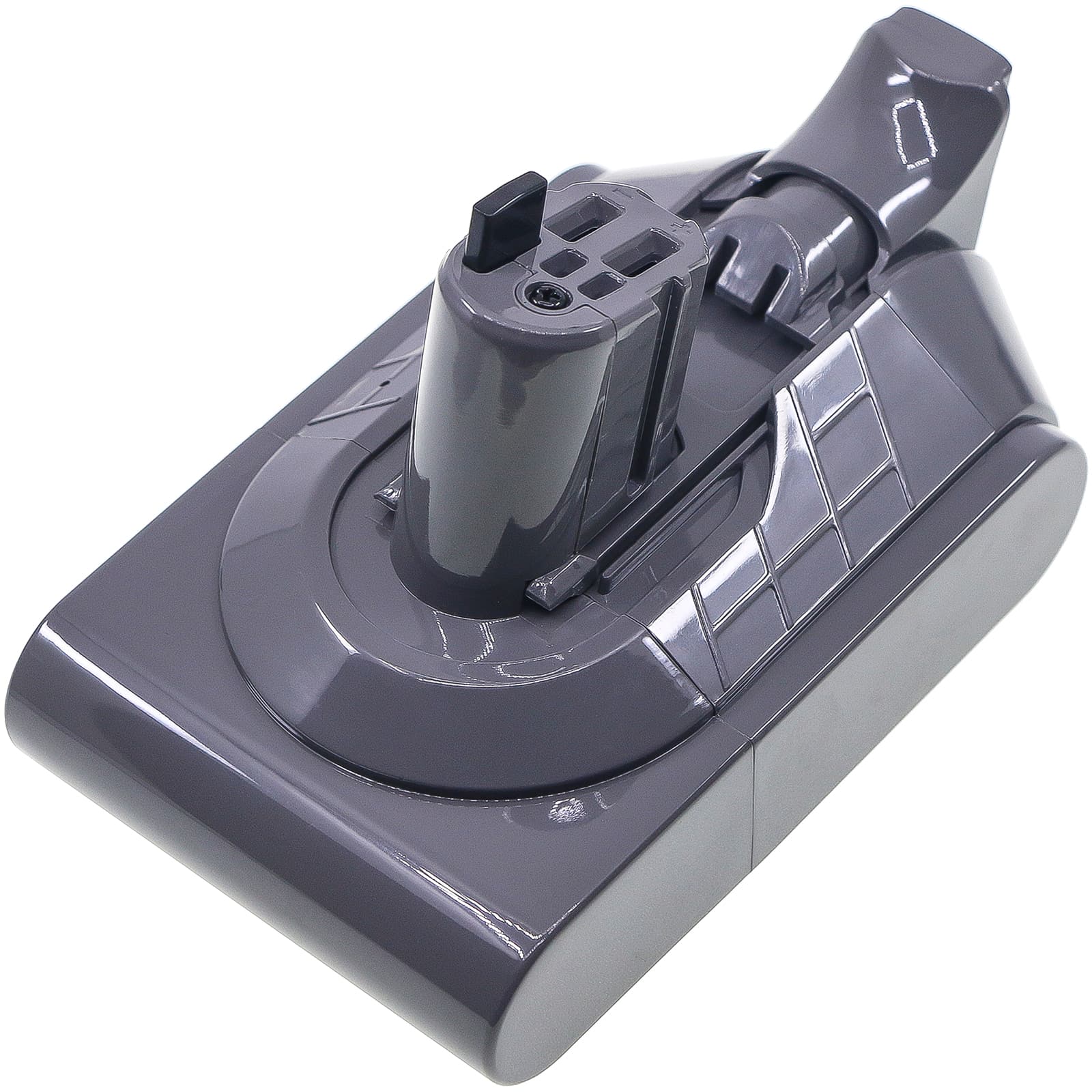

Dyson V10 Slim / V10 Digital Slim Series — 18V Li-ion Replacement Battery (398857-01)
This is an 18V, 2500mAh (45Wh) lithium-ion replacement battery for the Dyson V10 Slim cordless stick vacuum (SV18). It fits the V10 Slim, V10 Digital Slim, V10 Digital Slim Fluffy Extra, and V15 Detect, among others. When original battery capacity degrades and runtime shortens noticeably, swapping this cell restores motor voltage without replacing the whole unit.
- V10 and V15 Detect platform fit: These models share the same 18V battery rail, physical latch connector, and BMS handshake protocol. The battery slides into the same rear-mounted port across all listed variants, and the motor controller reads cell state through the same communication pins.
- Bench tested on actual hardware: We ran this cell on a V10 Slim through multiple charge and discharge cycles. The BMS reported state-of-charge correctly to the LED indicator, and the motor controller did not flag a battery fault at any load level across all three suction modes.
- Dock charging practice on V10 and V15: Do not leave the vacuum sitting on the wall dock permanently. Continuous trickle charge from the dock degrades lithium cell capacity faster than normal use cycling. Charge to full and remove the vacuum from the dock until the next use.
Suction dropping before the battery indicator reaches low
This happens when the motor draws more current than the battery can sustain at its current state of health — voltage sags under load even though charge level reads mid-range. A partially blocked filter makes it worse: restricted airflow forces the motor to work harder, pulling amps up and dragging voltage down faster. The V10's motor controller interprets the voltage sag as low battery and reduces power to protect the cell. Clean the filter first, then check whether the behaviour persists with the new cell.
Motor cuts out mid-clean and then recovers after a few seconds
This is a BMS overcurrent trip, not a dead battery. When suction is restricted — blocked brush bar, clogged filter, or sealed pickup point — current spikes past the BMS threshold and the circuit opens to protect the cells. After a few seconds the BMS resets, power returns, and the cycle repeats if the restriction is still there. Clear the blockage and check the filter before concluding the battery is at fault. If the trip still occurs on an unobstructed vacuum, measure pack voltage under load — it should hold above 16.5V during normal operation.
