About this replacement
Eaton CEAG SV EURO 4 LED Series — 4.8V Ni-CD Replacement Battery (40066071181)

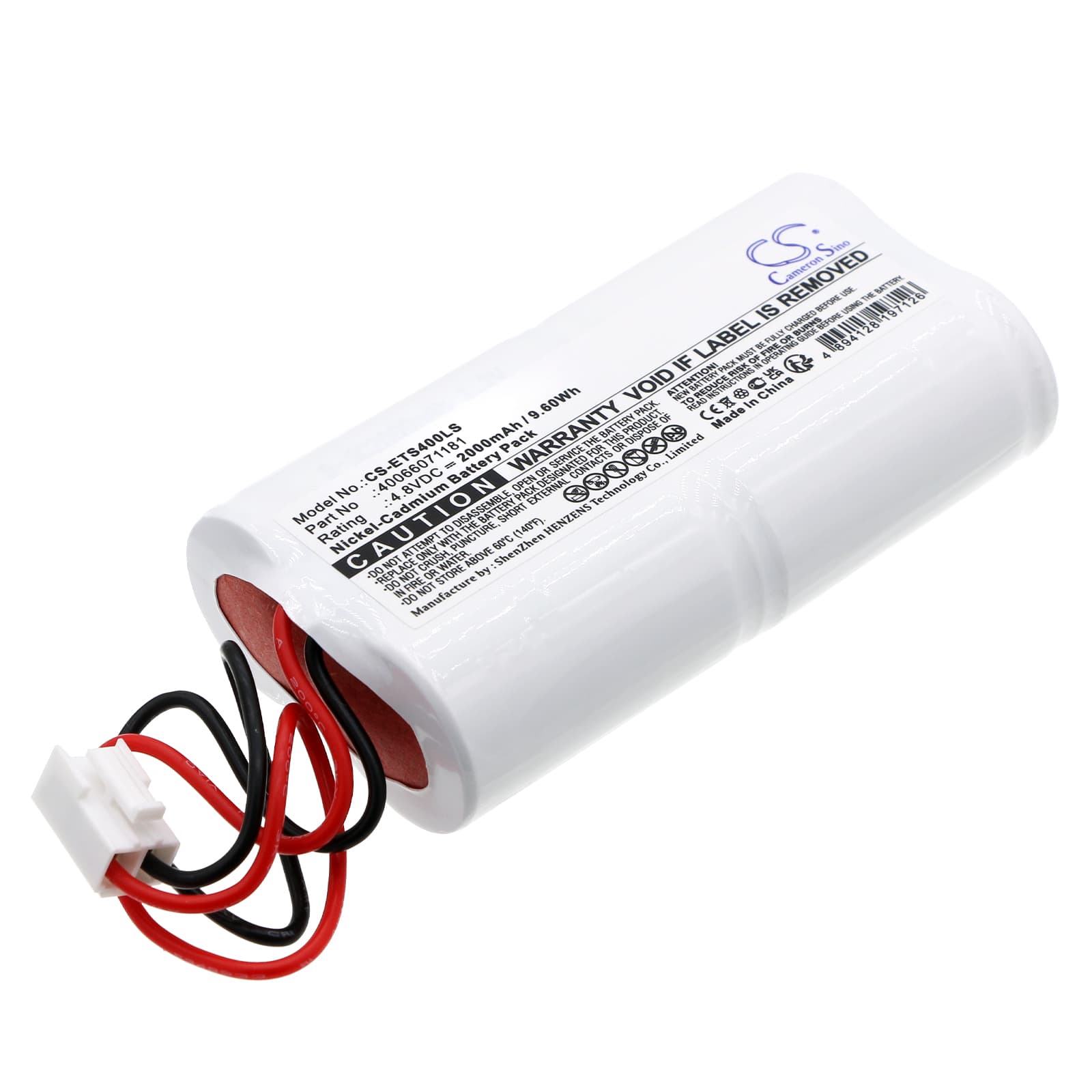

This is a 4.8V 2000mAh Ni-CD replacement battery for Eaton CEAG emergency lighting fixtures, including the SV EURO 4 LED and SV EURO 4L LED. It replaces OEM part number 40066071181. The battery powers the lamp during mains failure, maintaining emergency illumination in commercial and industrial installations.
- CEAG SV EURO 4 LED and SV EURO 4L LED compatibility: Both variants run the same 4.8V charge rail and use an identical cell pack footprint at 84.50 x 45.30 x 23.00mm. The charge controller expects the same float voltage and termination profile, so one cell pack covers both fitting types without modification.
- Bench tested on actual hardware: We ran this cell through a full charge cycle and simulated a mains-loss event. The charge controller accepted the cell within the float acceptance window, the BMS flagged no fault condition, and the lamp activated cleanly on simulated power cut.
- First-cycle activation on CEAG fittings: Within 24 hours of installation, hold the test button for the full rated duration. This confirms the new cell accepts load and lets the charge controller register the new cell capacity before the next scheduled compliance test.
Emergency light failing its duration test after battery replacement
A fresh Ni-CD cell ships in a partially discharged state. The charge controller on CEAG fittings applies a trickle charge, but the cell may not reach full capacity within the first few hours after installation. Running a duration test too early draws the cell below its rated cut-off voltage before the test period completes. Allow at least 24 hours on charge before conducting any formal compliance or duration test — this gives the Ni-CD chemistry time to reach a stable 1.2V per cell under load.
Charge indicator staying red after new battery installation
CEAG charge controllers measure incoming cell voltage before entering float mode. A cell that has self-discharged during storage may present a voltage too low for the controller to accept directly, keeping the fault or charge LED red. Force a manual test cycle immediately after installation — this draws the cell voltage down and back up, prompting the controller to re-initialise its charge acceptance logic. If the indicator does not move to green within four hours of that test cycle, check the cell connector is fully seated and measure voltage at the terminals: it should read above 4.5V on a healthy cell.
