About this replacement

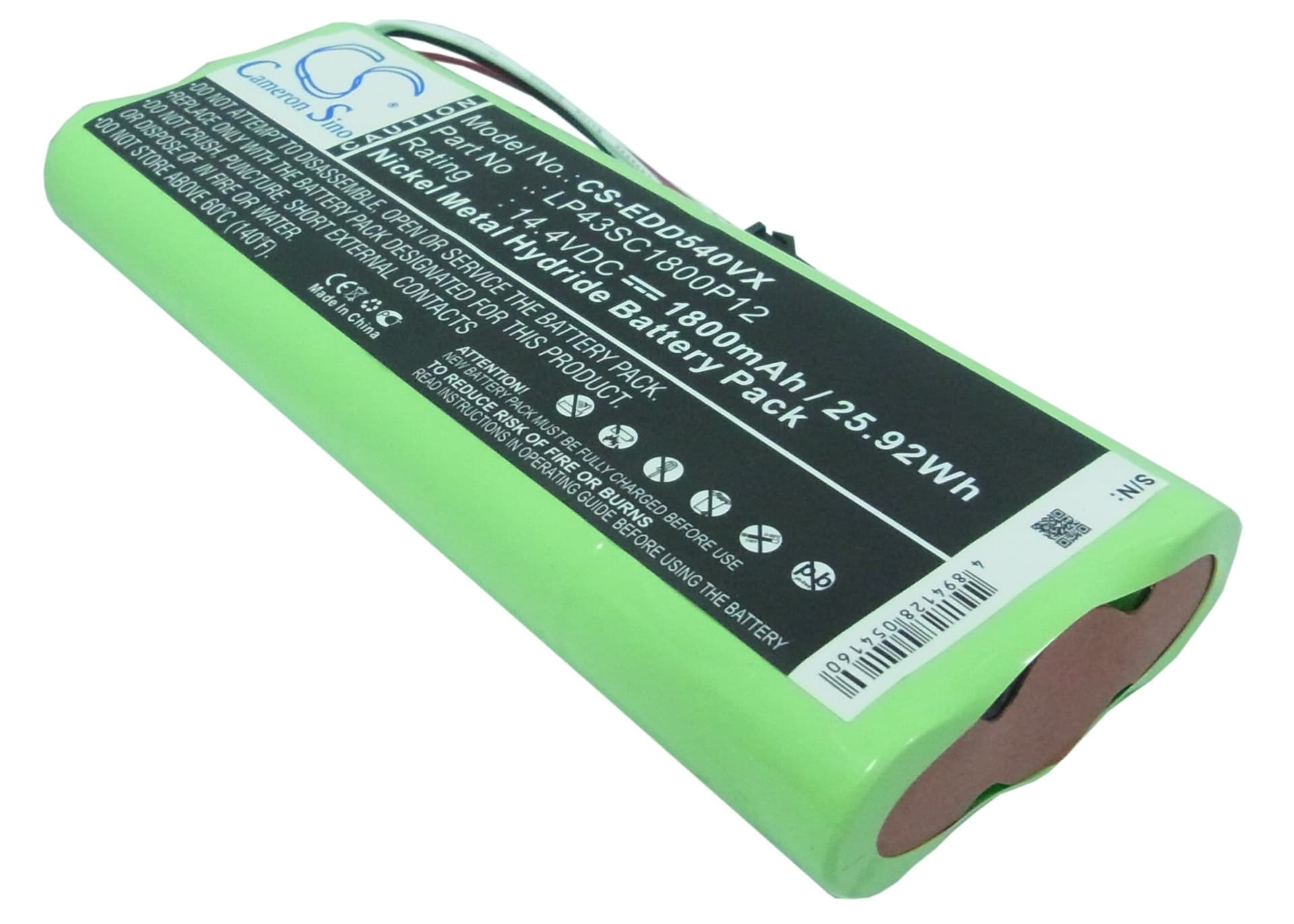

Ecovacs Deebot D523 / D540 Series — 14.4V Ni-MH Replacement Battery (LP43SC1800P12)
This is a 14.4V Ni-MH battery rated at 1800mAh (25.92Wh), built to fit the Ecovacs Deebot D523, D540, D550, D560, and several other Deebot models in this series. It replaces the original LP43SC1800P12 pack when the existing cell has lost charge capacity or stopped holding a usable cycle. Drop the old pack out, slot this one in, and the robot returns to its standard cleaning cycle.
- Deebot D5xx platform compatibility: The D523, D540, D550, and D560 share the same 14.4V cell architecture, connector pinout, and BMS communication protocol — which is why a single LP43SC1800P12 pack covers the entire platform without modification.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the D540 platform. The BMS handshook correctly with the Ecovacs charger, cell balancing engaged as expected, and the protection circuit tripped appropriately at low-voltage cutoff without latching faults.
- Dock charging discipline for Ni-MH cells: Do not leave the Deebot on the charging dock between cleans indefinitely. Ni-MH chemistry degrades faster under continuous trickle charge than Li-ion does. Charge the robot fully after each use, then remove it from the dock until the next cleaning session.
Suction dropping before the battery indicator reaches low
On the D523 and D540, suction loss mid-cycle usually isn't the battery failing — it's motor voltage sag caused by a partially blocked filter forcing the motor to draw more current than rated. The BMS reads that elevated draw as an approaching cutoff condition and begins throttling power to the motor before the indicator shows a low battery state. Pull the filter out, tap it clean, and run the vacuum again. If suction holds steady through a full cycle after cleaning the filter, the battery was not the cause.
Motor cuts out mid-clean then restarts on its own
This is a BMS overcurrent trip, not a dead battery. When sustained suction restriction — blocked brush roll, clogged filter, or heavy carpet load — pushes motor current past the protection threshold, the BMS cuts the circuit. After a few seconds the cell voltage recovers slightly, the BMS resets, and the motor restarts. The fix is to clear the restriction: remove debris from the brush roll, check the filter, and verify nothing is caught in the intake port. If the trip keeps happening on an unobstructed robot, measure resting cell voltage — a degraded Ni-MH pack that can no longer hold above 12V under load will trigger overcurrent trips on normal suction loads.
