About this replacement

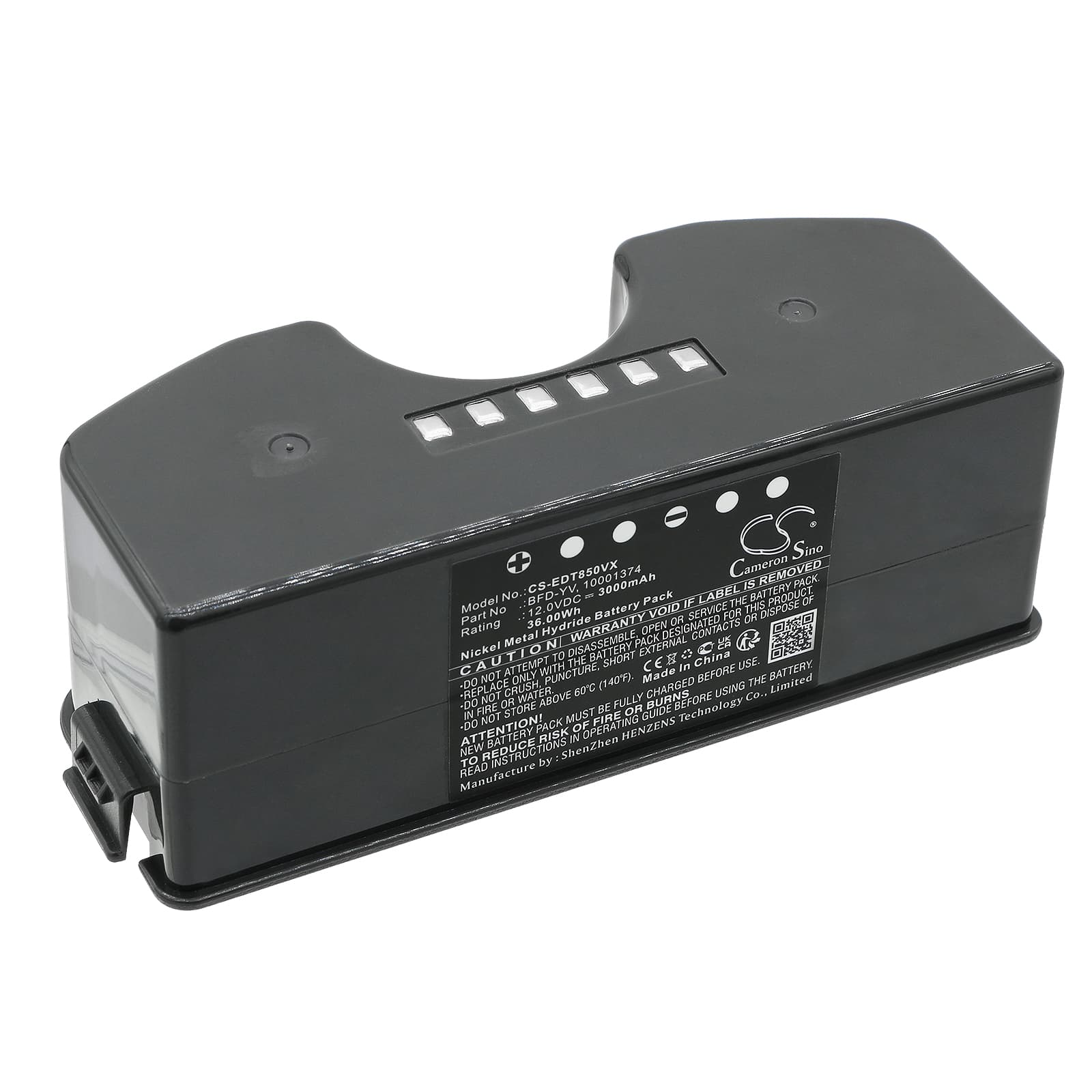

Ecovacs Deebot M81 Pro — 12V Ni-MH Replacement Battery (10001374)
This is a 12V 3000mAh Ni-MH replacement battery for the Ecovacs Deebot M81 Pro robotic vacuum cleaner. It also fits the Deebot DT83, DT85, and DT85G. The battery powers the drive motors, brush motor, and onboard navigation through each cleaning cycle.
- M81 Pro, DT83, DT85, DT85G platform: These models share the same 12V battery bay, connector pinout, and BMS handshake protocol. Swapping between them requires no wiring changes — the voltage rail and cell arrangement match across the group.
- Bench tested on actual hardware: We ran this cell pack through full charge and discharge cycles on the M81 Pro platform. The BMS accepted the pack without fault codes, current draw during motor ramp-up stayed within cutoff thresholds, and the charge circuit terminated correctly at capacity.
- Dock charging on Ni-MH cells: The M81 Pro's dock does not cut power once the battery is full — it continues to trickle charge. Ni-MH cells degrade faster under continuous trickle charge than Li-ion. Charge the robot fully, then remove it from the dock until the next cleaning session.
Suction dropping before the battery indicator reaches low
The M81 Pro's brush and suction motors draw more current when the filter is partially blocked or the brush roll is restricted. Ni-MH cells show voltage sag under sustained high current draw — the motor slows before the battery gauge registers low. The battery still has stored charge, but the pack can't deliver enough voltage under load to maintain motor speed. Clean the filter and check the brush roll for hair wrap before assuming the battery is the fault.
Robot cuts out mid-cycle and then restarts after sitting still
This is a BMS overcurrent trip, not a dead battery. When suction is restricted — blocked filter, tangled brush, or the unit getting stuck against an obstacle — the motors draw sustained current above the BMS trip threshold. The BMS disconnects the pack to protect the cells, and the robot powers off. After a short rest, the BMS resets and the unit restarts. Clear the blockage first. If trips continue on a clean filter, test terminal voltage under load — a healthy pack should hold above 10.8V during motor run.
