About this replacement

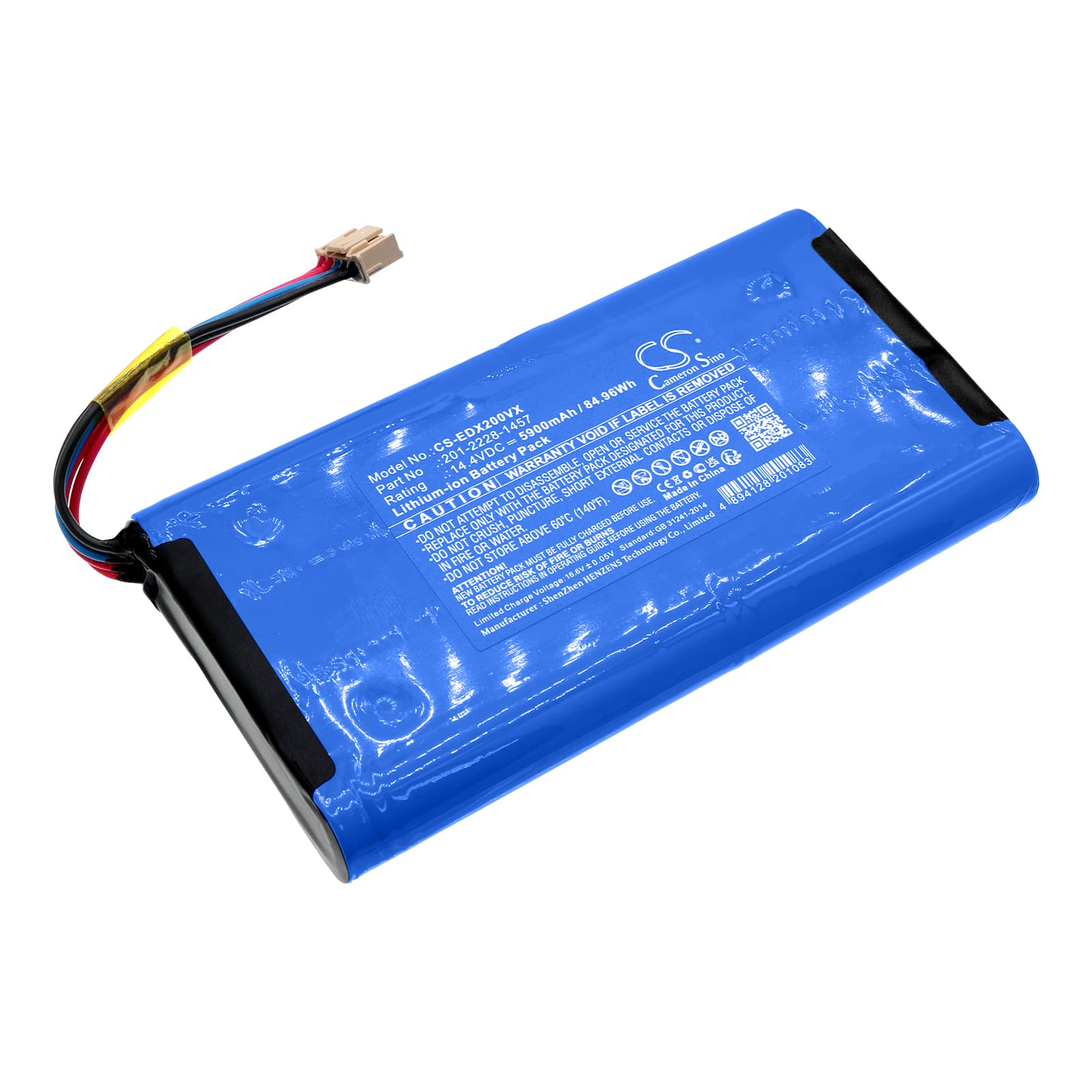

Ecovacs Deebot X2 OMNI — 14.4V Li-ion Replacement Battery (201-2228-1457)
This 14.4V 5900mAh lithium-ion battery replaces the original pack in the Ecovacs Deebot X2 OMNI, DX2OMNI, X2 COMBO, and X2 OMNI series robotic vacuums. It matches the OEM voltage rail and BMS handshake the robot's charging dock expects. Capacity is pulled from product data at 5900mAh (84.96Wh).
- X2 OMNI series compatibility: The Deebot X2 OMNI, DX2OMNI, and X2 COMBO share the same 14.4V battery bay, connector pinout, and BMS communication protocol. Any variant in this group pulls from the same voltage rail, so one cell fits all listed models without modification.
- Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle on the X2 OMNI dock. The BMS handshake completed on first dock contact, the robot accepted charge without fault codes, and the protection circuit tripped correctly at the low-voltage cutoff threshold before the robot reported empty.
- Dock charging discipline for robotic vacuums: Do not leave the X2 OMNI sitting on its dock between every clean. Continuous dock contact keeps the cells in a trickle-charge state that accelerates capacity fade. Charge to full, run a clean cycle, then charge again — repeat rather than leaving the robot parked and plugged indefinitely.
Suction dropping before the battery indicator reaches low on the X2 OMNI
The X2 OMNI's motor draws significantly more current when the filter is partially blocked or the brush roll is tangled. The BMS reads this elevated current as a stress event and throttles output voltage before the charge gauge reaches the low threshold. The vacuum loses suction power, but the app or indicator still shows 30–40% battery remaining. This is not a faulty battery — it is the protection circuit responding to sustained over-draw caused by restricted airflow.
Motor cutting out mid-clean and then recovering after a short pause
This pattern is a BMS overcurrent trip, not a failed battery. When the brush roll hits a high-resistance surface like thick carpet or catches debris, current spikes sharply. The protection circuit cuts output to prevent cell damage, the motor stops, and the robot pauses. After a few seconds the BMS resets, current drops back into range, and the motor restarts. Clear the brush roll and clean the filter — both raise airflow resistance and push current draw above the trip threshold. If cut-outs persist after cleaning, check that the filter is fully dry and seated before running again.
