About this replacement

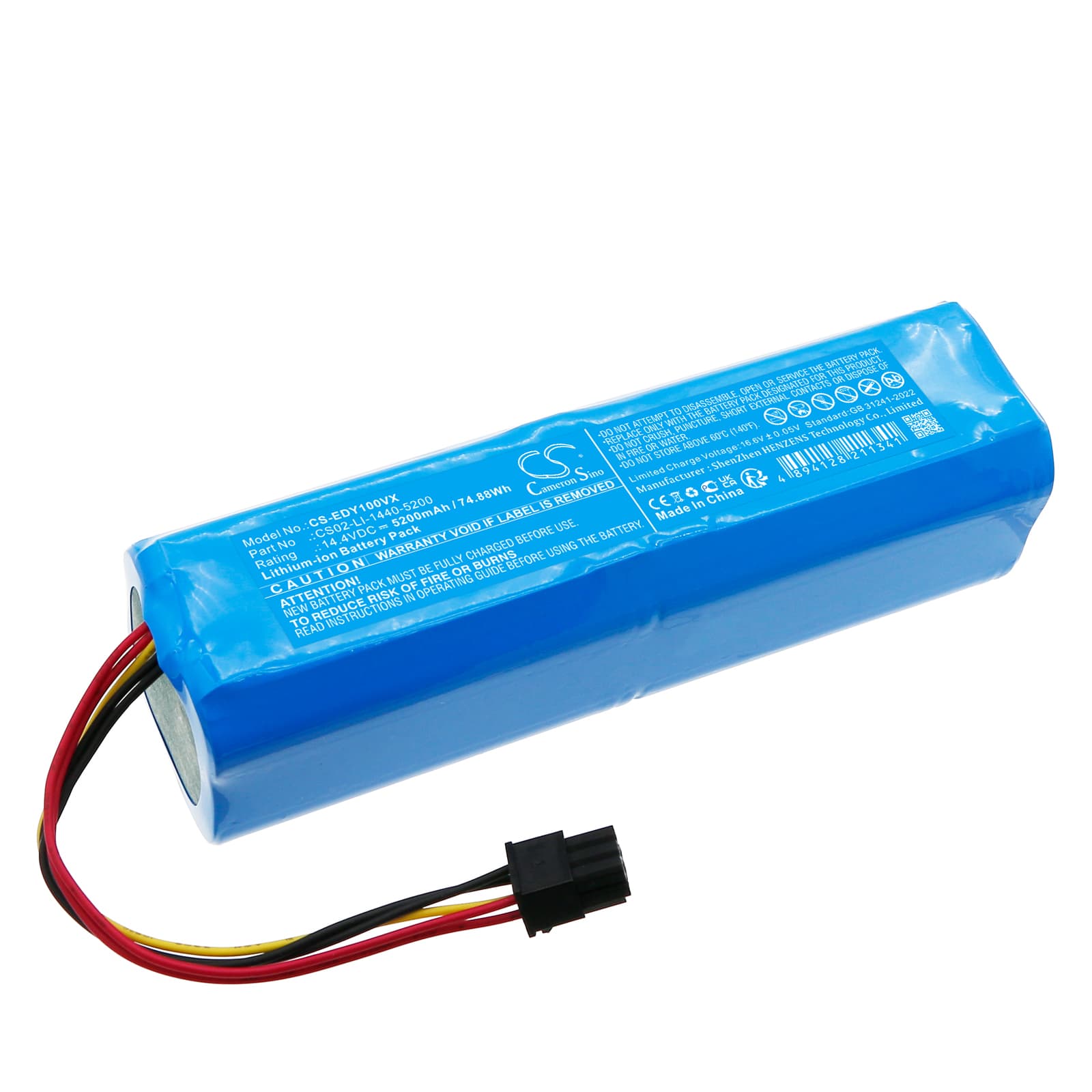

Ecovacs Deebot Y1 Series — 14.4V Li-ion Replacement Battery (CS02-LI-1440-5200)
This 14.4V 5200mAh Li-ion battery replaces the original pack in the Ecovacs Deebot Y1 and Deebot Y1 Plus robotic vacuums. It slots into the same bay and connects to the same BMS as the factory unit. Voltage and cell count match the original to keep the brush motor and navigation system running at spec.
- Deebot Y1 and Y1 Plus compatibility: Both models share the same 14.4V battery bay, connector pinout, and BMS handshake protocol. One replacement covers both units without any modification.
- Bench tested on actual hardware: We cycled this battery through full charge and discharge runs on the Deebot Y1 platform. The BMS held current limits correctly across both brush motor start surge and sustained navigation load, with no unexpected cutoff events.
- Dock charging practice for the Deebot Y1: Do not leave the Deebot Y1 sitting on the charging dock indefinitely between uses. Continuous trickle charging accelerates capacity fade in Li-ion packs faster than regular charge-and-remove cycles. Charge to full, then lift the unit off the dock until the next cleaning session.
Suction dropping before the battery indicator reaches low on the Deebot Y1
This is a voltage sag issue, not a capacity issue. When the brush roll or filter is partially blocked, the motor draws more current than rated, which pulls cell voltage down earlier than the state-of-charge indicator expects. The BMS sees the voltage drop and begins throttling motor output to protect the cells — the vacuum loses suction while the indicator still shows mid-charge. Clear the brush roll and clean or replace the filter first. If suction recovers, the battery is not the cause. If the problem persists on a clean filter with a degraded original pack, the cells have lost enough capacity that voltage sag appears at normal load.
Deebot Y1 motor cuts out briefly then recovers mid-clean
This is a BMS overcurrent trip, not a mechanical fault. Sustained restricted airflow forces the brush motor to draw above its rated current ceiling, and the BMS cuts the output circuit to protect the cells. After a few seconds, the BMS resets and power returns — which is why the vacuum seems to recover on its own. Check the filter and brush roll for blockage before replacing the battery. If the filter is clear and the cutout still occurs, the original cells have degraded to a point where internal resistance is high enough to trigger the overcurrent threshold at normal load; replacing the pack resolves this.
