About this replacement

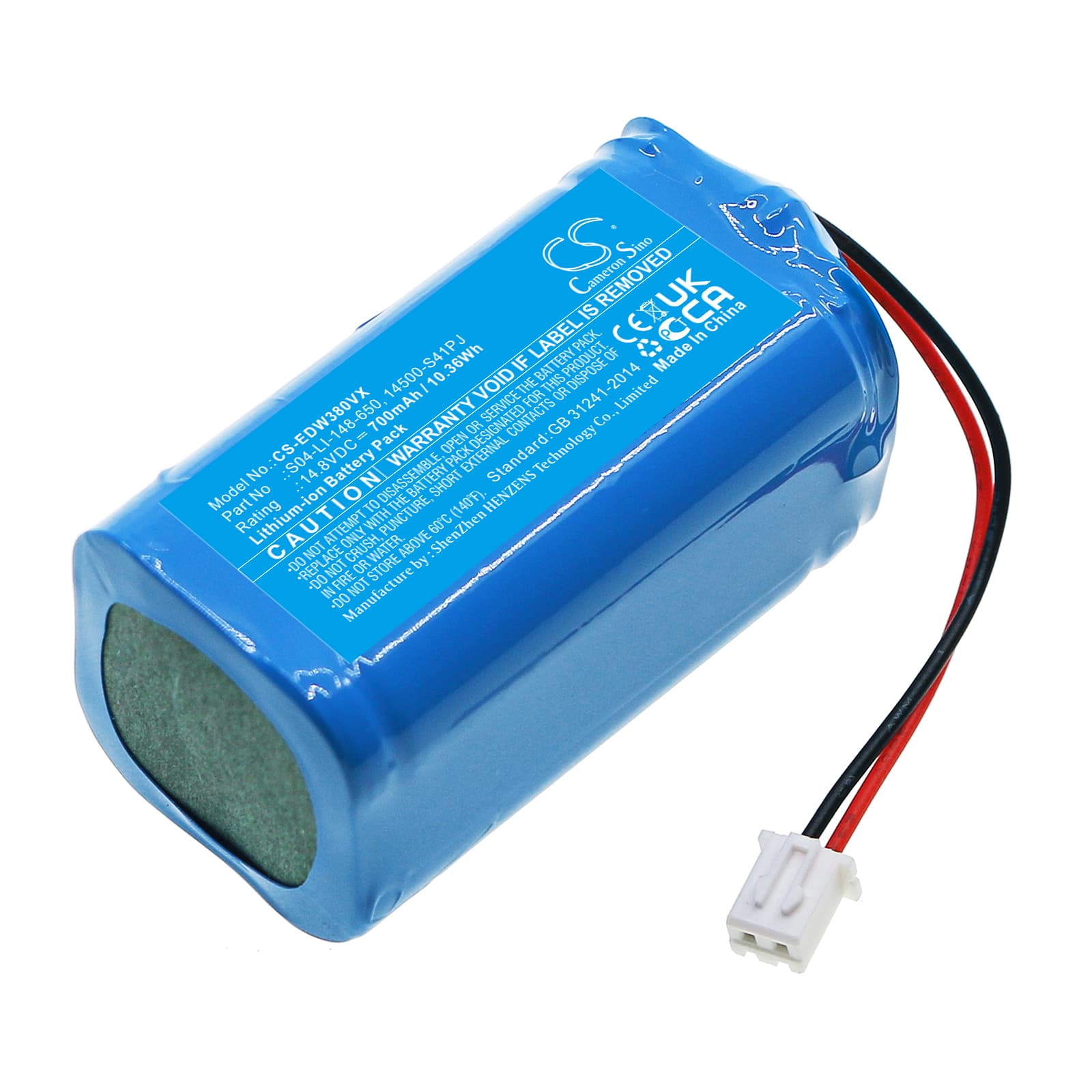

Ecovacs Winbot W830 / W850 / W930 / W950 — 14.8V Li-ion Replacement Battery (S04-LI-148-650)
This 14.8V, 700mAh Li-ion battery replaces the original power cell in the Ecovacs Winbot W830, W850, W930, and W950 robotic window cleaners. It slots into the same battery bay and connects to the same BMS interface as the factory cell. Capacity matches the original spec at 700mAh (10.36Wh) — no modifications needed.
- W830 / W850 / W930 / W950 shared platform: These four Winbot models run the same 14.8V four-cell Li-ion architecture and use the same motor-driver board. The BMS handshake, connector pinout, and charge termination voltage are identical across the range, which is why one battery covers all four.
- Bench tested on actual hardware: We cycled this cell through the Winbot charge-and-run sequence. The BMS accepted charge normally, hit 16.8V at full termination, and the motor controller drew within expected current limits throughout the suction cycle. No BMS fault flags triggered.
- Winbot dock charging caution: Do not leave the Winbot sitting on its magnetic charge contacts indefinitely between cleaning sessions. The dock applies a trickle charge that, over weeks, accelerates capacity fade in small Li-ion packs like this one. Charge fully, then disconnect until the next clean.
Why the Winbot loses suction before the battery indicator drops
The Winbot's suction motor draws variable current depending on glass texture and debris load. When the battery cell voltage sags under sustained motor load — even while the indicator still shows mid-charge — the motor controller throttles output to protect the circuit. This looks like a suction drop but the battery gauge hasn't moved yet. A degraded cell has higher internal resistance, which amplifies this voltage sag under load. Replacing the cell restores the flat discharge curve the motor controller expects.
Motor cuts out mid-clean then restarts on its own
This is a BMS overcurrent trip, not a motor fault. If the suction inlet is partially blocked by debris or the wiper pad is dragging harder than usual, motor current spikes above the BMS threshold and the pack shuts off. The BMS resets after a few seconds, which is why the device restarts by itself. Clear the inlet and check the wiper pad tension first. If the cutout continues on a clean unit, the original cell's BMS is degraded and no longer tolerates brief current peaks — swap the battery and retest.
