About this replacement

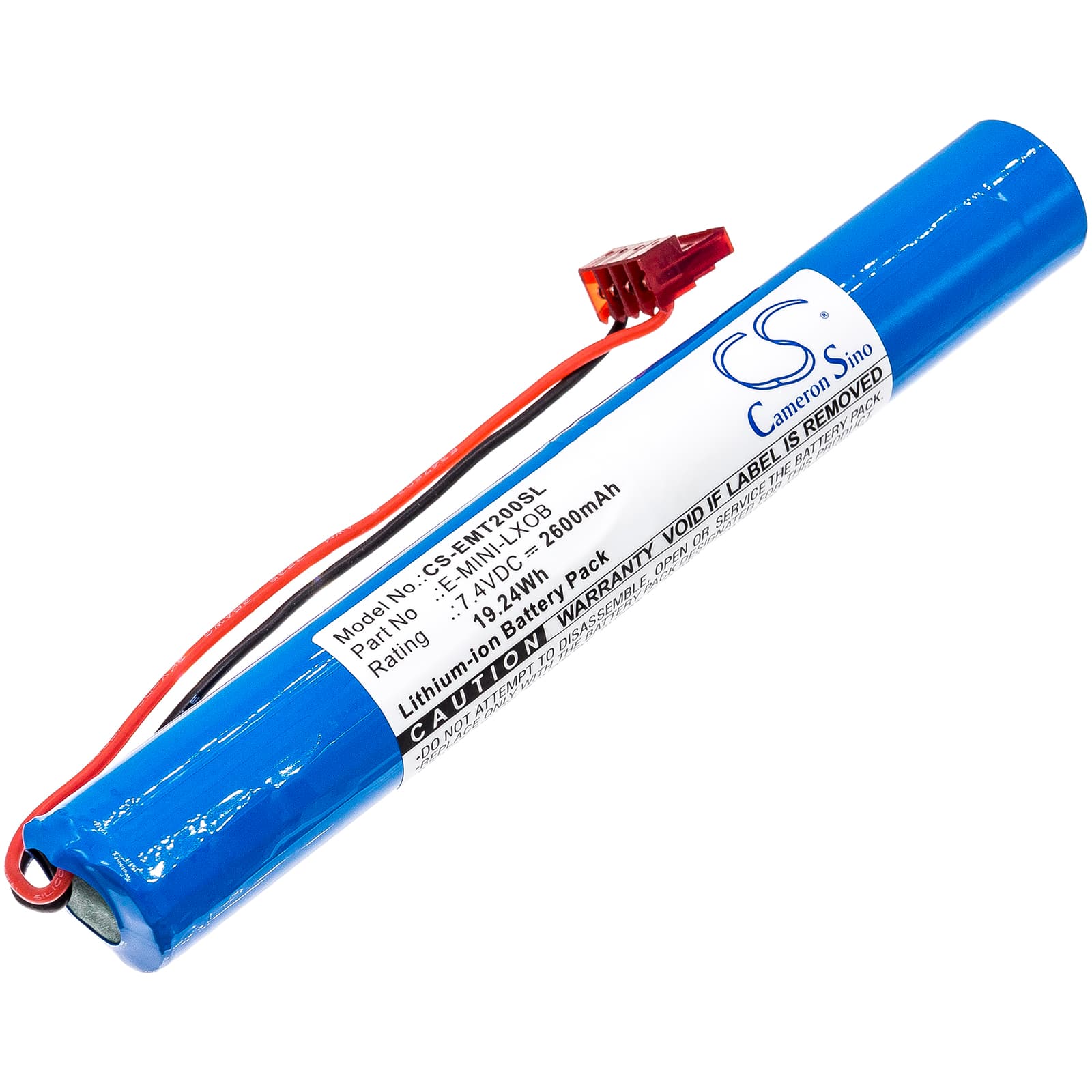

Environment E-2DB / E-5DB Series — 7.4V Li-ion Replacement Battery (E-MINI-LXOB)
This is a 7.4V, 2600mAh Li-ion replacement battery for the Environment E-2DB and E-5DB portable environmental survey instruments. It matches the OEM part number E-MINI-LXOB and fits the physical bay and connector of both models. Capacity is rated at 19.24Wh — identical to the original pack specification.
- E-2DB and E-5DB compatibility: Both models share the same battery bay dimensions, connector pinout, and BMS handshake protocol, which is why a single pack covers both. The 7.4V nominal rail is what each instrument's internal regulator expects — substituting a pack outside that voltage range will trigger a hardware fault on startup.
- Bench tested on actual hardware: We cycled this pack through instrument power-on, probe initialisation, and sustained sensor logging. The BMS handled the current spike at probe power-up without tripping, and cell voltage held stable under continuous measurement load.
- Pre-deployment calibration cycle: After installing this battery, run a full calibration sequence through the instrument menu before heading into the field. The E-2DB and E-5DB map battery state during calibration — skipping this step causes the instrument to flag premature low-battery warnings on the first measurement session, even with a full charge.
BMS cutoff when the probe module initialises
When the E-2DB powers up a connected probe, there is a short current spike as the probe's internal circuitry initialises. If the battery's state of charge is below roughly 20%, the BMS reads that spike as an overload condition and cuts the output to protect the cells. The instrument then shuts down immediately — even though the display may have shown an adequate charge level a moment before. Charge the pack to at least 3.8V per cell (7.6V total at the pack terminals) before connecting probes in the field.
Pack will not charge after months stored in the carry case
Li-ion cells self-discharge during storage, and if the pack drops below approximately 2.5V per cell, the BMS enters a sleep state and blocks the charge circuit entirely — the instrument's charging indicator will show nothing. This is a protection state, not a dead pack. Connect the pack to the instrument's charger and leave it for 15–20 minutes; many chargers apply a low-current pre-charge pulse that nudges the voltage back above the BMS recovery threshold of around 2.9V per cell, after which normal charging resumes.
