About this replacement

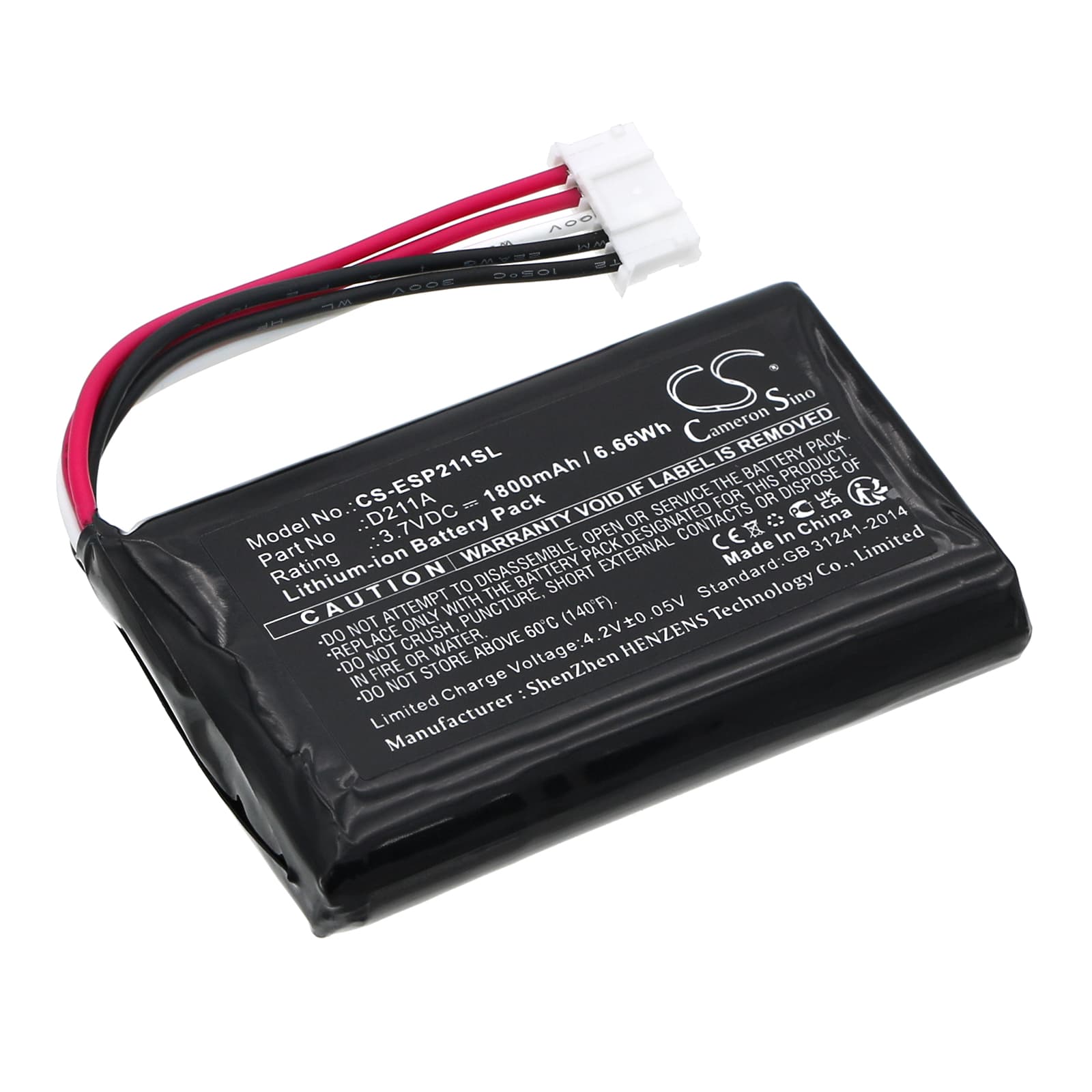

Epson C11CG87404 — 3.7V Li-ion Replacement Battery (D211A)
This is a 3.7V, 1800mAh Li-ion battery for the Epson C11CG87404 mobile receipt and label printer. It replaces OEM part D211A and restores wireless, portable printing without tethering the unit to AC power. Capacity figure is 6.66Wh as rated in the product specification.
- C11CG87404 mobile printer platform: The C11CG87404 uses a single-cell 3.7V rail to drive the print head, paper feed motor, and wireless radio simultaneously. All three loads share the same cell, so the BMS must handle combined current spikes without dropping the bus voltage below the print head's minimum threshold.
- Bench tested on actual hardware: We ran the D211A replacement through full charge and discharge cycles on the C11CG87404. The BMS held rail voltage stable across motor-start events and wireless transmission bursts. No false low-battery cutoffs were triggered during multi-page print runs.
- First-use charge requirement: Charge this battery to 100% before the first print job. The motor and heating element pull peak current at startup — if the cell ships at a storage charge level, that combined draw can trip the BMS before the first page clears the feed roller.
Why the C11CG87404 drops WiFi connection mid-print job
The C11CG87404 runs its wireless radio and print mechanism off the same 3.7V cell. When the feed motor fires mid-job, it pulls a current spike that momentarily sags the rail voltage. If the battery is below roughly 3.5V at that moment, the radio module loses enough power to drop its connection. The fix is to print before the battery indicator reaches 20% — the cell cannot sustain combined motor and radio draw at low state of charge.
Print quality degrading before the low-battery indicator appears
The thermal print head on the C11CG87404 is voltage-sensitive — it needs consistent current to heat each element evenly across the print line. As the cell discharges, internal resistance rises and voltage delivery becomes inconsistent, producing faint or streaked output before the battery gauge shows a warning. The gauge reads cell voltage, not available current, so it lags behind real capacity loss. If print quality drops, check the cell voltage directly — anything under 3.6V under load means the battery needs charging before continuing.
