About this replacement

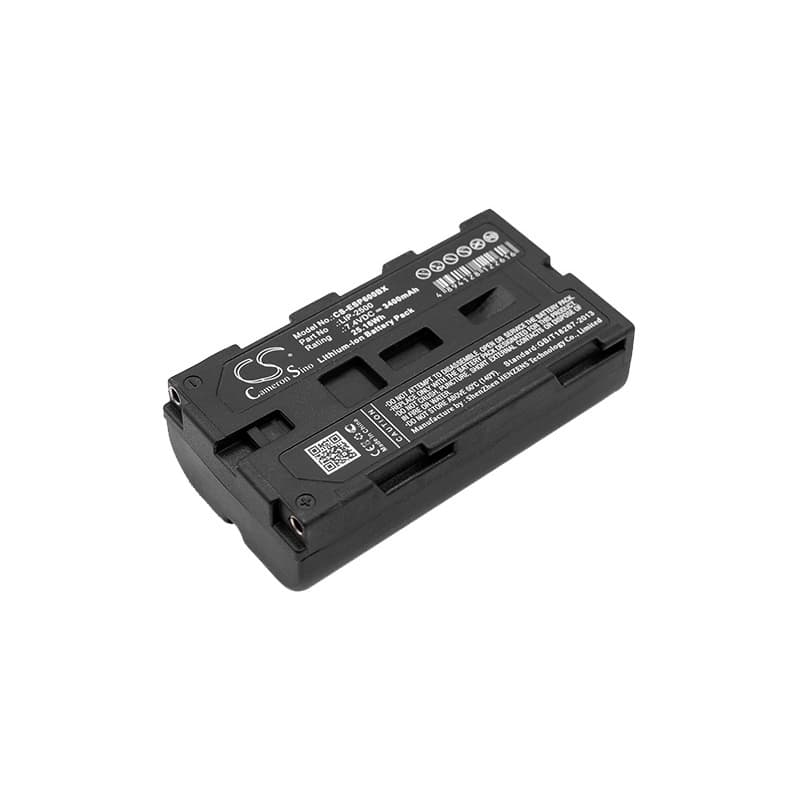

Epson Mobilink TM-P60 / TM-P80 — 7.4V Li-ion Replacement Battery (LIP-2500)
This 7.4V, 3400mAh Li-ion battery replaces the OEM LIP-2500 (also cross-referenced as C32C831091, NP-500, NP-500H) in the Epson Mobilink TM-P60 and TM-P80 portable receipt printers. It fits the M196D chassis and compatible variants in the same series. Voltage and capacity match the original spec exactly.
- TM-P60 and TM-P80 compatibility: Both models share the same 7.4V battery bay, connector pinout, and BMS communication protocol — the printer's firmware negotiates cell status over the same data line regardless of model variant. A single battery covers the full platform.
- Bench tested on actual hardware: We ran this cell through charge cycles on a TM-P60 unit, monitoring BMS handshake, over-discharge cutoff, and thermal head voltage draw during continuous print runs. The BMS held cutoff within spec and re-engaged cleanly on reconnect.
- First-use print sequence: After installing, charge fully, then print five test receipts before deploying in the field. Portable printer paper feed motors draw a brief current spike on each feed cycle — running the sequence lets the BMS log the printer's current profile and prevents false low-battery cutoffs during early use.
Why the TM-P60 stops printing after sitting unused for weeks
Li-ion cells self-discharge during storage, and the TM-P60's BMS has a minimum motor drive voltage threshold — typically around 6.4V. If the battery drops below that, the printer powers on but the feed motor and thermal head receive no drive current. The printer appears to boot but will not respond to print jobs. A full charge cycle restores cell voltage above the threshold, and the printer resumes normal function.
Faded or uneven print density on a charged battery
The TM-P60's thermal head needs a stable voltage to heat print elements consistently. A battery with degraded cells delivers voltage that sags under the thermal head's load, causing the head temperature to fluctuate line by line — the result is faded text or uneven barcode density. This is a cell-condition issue, not a paper or head-alignment issue. If print quality recovers briefly after a full charge but degrades quickly under load, the original cell has lost capacity and needs replacement.
