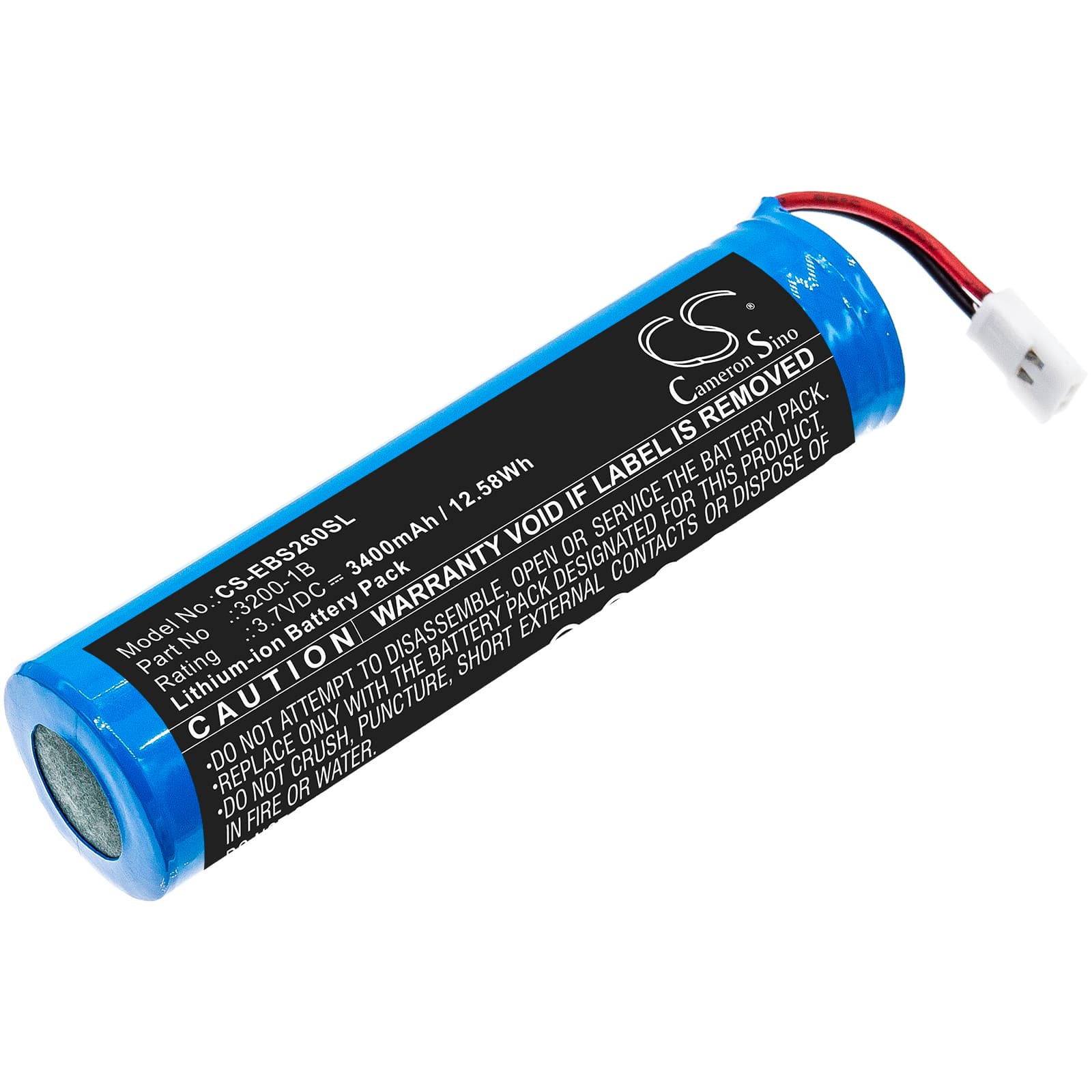

Eschenbach Visolux Digital HD — 3.7V Li-ion Replacement Battery (3200-1B)
This 3.7V Li-ion cell replaces part number 3200-1B in the Eschenbach Visolux Digital HD electronic magnifier. Capacity is 3400mAh (12.58Wh). The Visolux Digital HD is a portable video magnifier used daily by people with low vision for reading, handwriting, and close detail tasks.
- Visolux Digital HD fit: The 3200-1B cell powers both the digital display driver and the backlight circuit from a single 3.7V rail. The BMS on this device monitors cell voltage tightly because the display controller requires stable input — a worn cell causes screen instability before the battery indicator shows low.
- Bench tested on actual hardware: We cycled this cell through the Visolux Digital HD's charge and discharge sequence. The BMS accepted the cell without fault codes, the charge circuit reached full termination voltage cleanly, and the display held stable across brightness levels.
- First-cycle brightness setting: Run the device at 50% screen brightness during the first full charge cycle after fitting this cell. High brightness draws extra current from the backlight circuit, which can misread the new cell's state of charge and skew the battery indicator calibration on that first cycle.
Why the Visolux Digital HD screen flickers on a new battery
Flickering on a freshly fitted cell usually points to a state-of-charge mismatch, not a faulty battery. The display driver on the Visolux Digital HD samples cell voltage to regulate backlight power. If the BMS hasn't completed its first full calibration cycle, it may report an unstable voltage window and cause the backlight to pulse. Run one complete charge-to-discharge cycle at moderate brightness to let the BMS settle its voltage reference. Flickering that persists after two full cycles indicates a connector seating issue — reseat the cell and confirm the contacts are clean.
Image colour shifting before the battery indicator drops
Colour shift — whites turning yellow or contrast flattening — typically appears when cell voltage sags under backlight load before the battery gauge registers low. The Visolux Digital HD's display driver is voltage-sensitive: at maximum brightness, the backlight circuit draws enough current to pull cell voltage below the display's colour-stable threshold while the fuel gauge still reads partial charge. This is not a defective cell — it is the display responding to transient voltage sag. Drop screen brightness one step and the colour will stabilise. If colour shift starts above 3.5V under load, the cell contacts may need cleaning.
