About this replacement

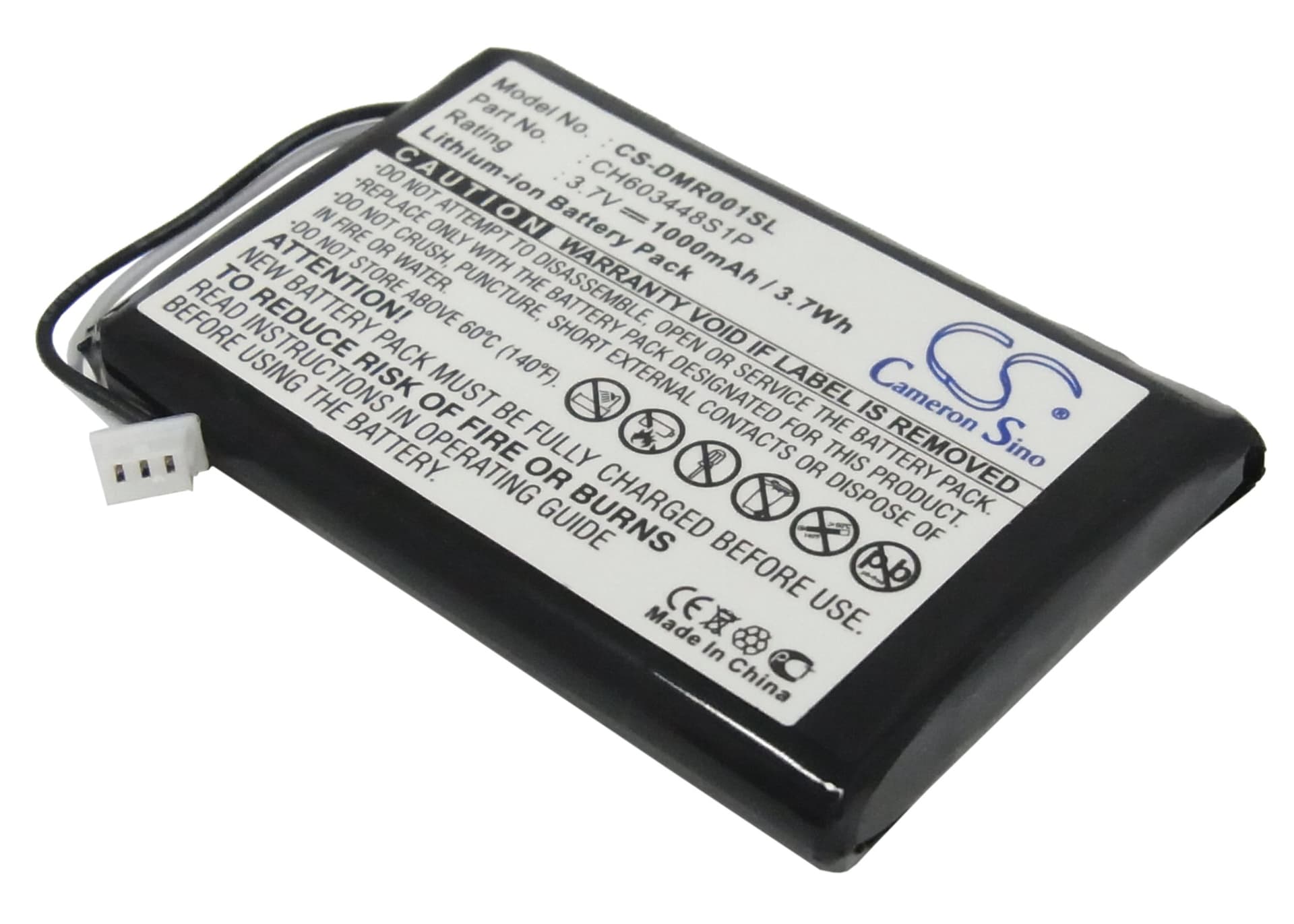

ESPN DMR-1 — 3.7V Li-ion Replacement Battery (CH603448S1P)
This is a 3.7V, 1000mAh Li-ion battery that replaces part number CH603448S1P in the ESPN DMR-1 remote control. It restores wireless transmission function to the remote when the original cell has depleted or failed. Dimensions are 52.20 x 34.25 x 6.37mm — confirm against your existing cell before installing.
- DMR-1 compatibility: The DMR-1 remote runs on a single Li-ion cell at 3.7V nominal. This replacement matches the OEM voltage rail and connector footprint, so the remote's IR transmission circuit operates at the correct drive level.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench. The protection circuit tripped correctly at the low-voltage cutoff threshold and recovered cleanly on recharge — no BMS lockout observed.
- Post-install orientation check: Li-ion pouch cells in remotes have a keyed connector, but confirm the polarity markings on the connector match the remote's socket before closing the housing. A reversed connection won't damage the cell, but the remote will not power on.
IR output drop on the DMR-1 as cell voltage falls
The DMR-1's IR LED driver needs a stable voltage to push enough current through the emitter for a clean signal. As the Li-ion cell discharges past roughly 3.4V, the LED drive current drops below the threshold needed for reliable transmission. The remote may still appear "on" — the indicator light might flash — but the IR burst loses the range and intensity needed to register on the receiver. Replacing the cell when resting voltage reads below 3.5V prevents this gradual dropout.
Remote stops responding after the battery is replaced
The most common cause is connector polarity. Even though the DMR-1 uses a keyed Li-ion connector, the housing can be reassembled with the cable seated at a slight angle, breaking contact intermittently. Open the remote, reseat the connector firmly until it clicks, then test. If the remote still won't respond, measure the replacement cell's voltage with a multimeter — a new cell should read at least 3.6V at rest before installation.
