About this replacement

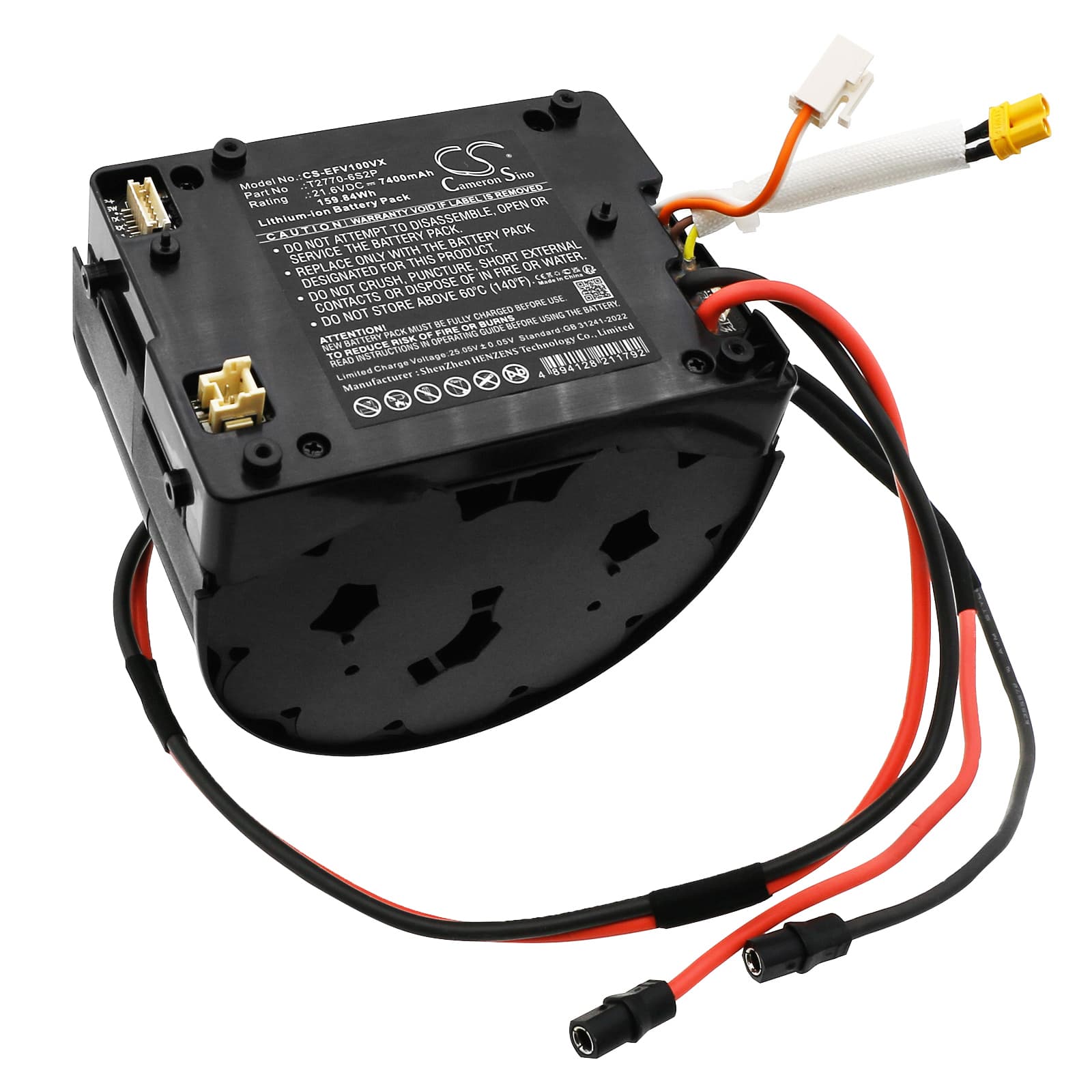

Eufy Mach V1 Ultra — 21.6V Li-ion Replacement Battery (T2770-6S2P)
This is a 21.6V Li-ion battery rated at 7400mAh (159.84Wh), built to fit the Eufy Mach V1 Ultra cordless stick vacuum. It slots into the original battery bay and connects to the same BMS handshake the vacuum expects. Swap it in when the original cell no longer holds enough charge to complete a cleaning session.
- Mach V1 Ultra compatibility: The Mach V1 Ultra runs a 6S2P cell configuration at 21.6V nominal. This replacement matches that topology exactly — same voltage rail, same connector pinout, same BMS communication protocol the vacuum's motor controller requires to enable full power mode.
- Bench tested on actual hardware: We cycled this battery through full charge and discharge on the Mach V1 Ultra platform. The BMS held steady under sustained motor draw, and the overcurrent protection tripped correctly when we restricted airflow to simulate a blocked filter — then reset cleanly once flow was restored.
- Dock charging habit on stick vacuums: Do not leave the Mach V1 Ultra on the wall dock permanently. Continuous trickle charge after the cell reaches 100% accelerates capacity fade in Li-ion packs faster than regular use does. Charge to full, remove from the dock, and return it only when the battery needs a top-up.
Suction dropping before the battery indicator reaches low
This happens when internal cell resistance has risen enough that voltage sags under motor load — even though the resting voltage still reads normal. The battery indicator measures resting voltage, not load voltage, so it can show two or three bars while the motor is already starved of the current it needs. A degraded cell will sag below the motor controller's cutoff threshold mid-run and recover the moment load is removed. Replacing the battery pack resolves this if the cells are the cause — but also check the filter first, because a clogged filter forces higher motor current and triggers the same symptom on an otherwise healthy pack.
Motor cuts out mid-clean and restarts after a few seconds
This is a BMS overcurrent trip, not a faulty battery. When airflow through the vacuum is restricted — blocked filter, full dustbin, or a clogged brush roll — the motor draws more current than the BMS's overcurrent threshold allows. The BMS shuts down the discharge circuit to protect the cells, then resets once current drops. Clean the filter and empty the bin first; if the cutouts stop, the battery is fine. If cutouts continue on a clear filter at rated airflow, the cells inside the old pack have degraded to the point where internal resistance is spiking current draw — that's when a replacement pack is the fix.
