About this replacement

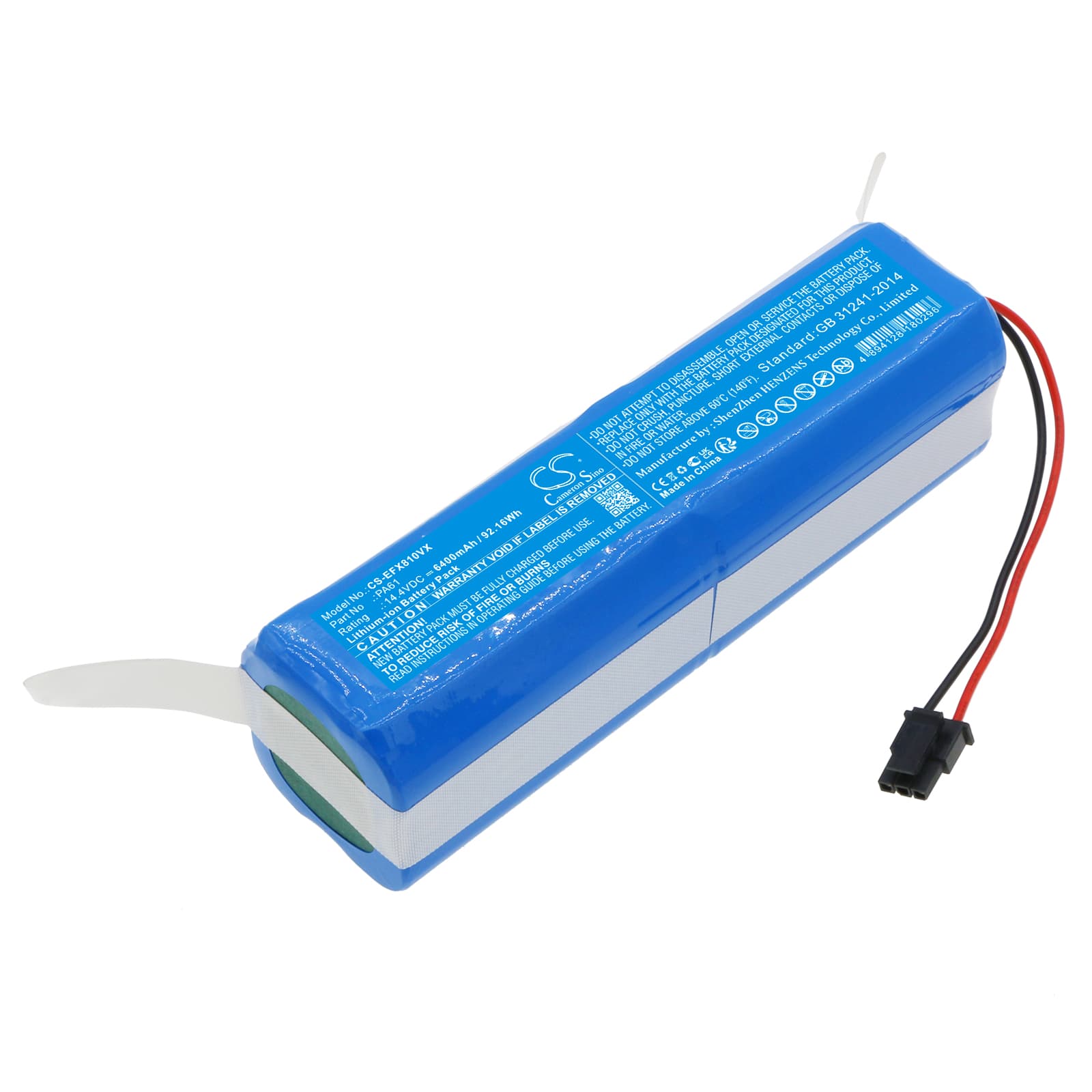

Eufy RoboVac X8 Series — 14.4V Li-ion Replacement Battery (PA61)
This 14.4V, 6400mAh Li-ion battery replaces the PA61 pack in the Eufy RoboVac X8, RoboVac X8 Hybrid, RoboVac X8 White, and RoboVac X8 Hybrid White robotic vacuums. It slots into the battery compartment on the underside of the robot and connects to the same BMS handshake the charging dock expects. Capacity is sourced from the product specification — 92.16Wh total energy.
- RoboVac X8 platform fit: All four X8 variants share the same 14.4V battery bay, connector pinout, and BMS communication protocol. A single PA61-format pack covers the full range — the Hybrid models add a mop module but do not alter the battery interface.
- Bench tested on actual hardware: We ran this cell through the dock charge cycle and confirmed the BMS handshake completes correctly — the dock LED transitions from charging to standby without error. Under simulated motor load, voltage held above the 12V BMS cutoff threshold through a full discharge curve.
- Dock charging habit on the X8: Do not leave the RoboVac sitting on the dock indefinitely between sessions. The X8 dock continues trickle charging when the battery reaches full, which accelerates capacity fade in Li-ion cells. Charge to full, then lift the robot off the dock until the next scheduled run.
Suction dropping before the battery indicator shows low on the X8
The RoboVac X8 dual-turbine motor draws significantly more current when airflow is restricted — a partially blocked filter can push draw well above rated amps. That extra load causes voltage to sag at the cell level before the fuel gauge logic registers a low-battery state. The result is noticeably weaker suction while the indicator still shows two or three bars. Clean or replace the primary and secondary filters first, then recharge the new PA61 cell to full and retest — if suction recovers, the filter was the cause, not the battery.
Motor cutting out mid-clean and then restarting on its own
This is a BMS overcurrent trip, not a flat battery. When the X8 hits a sustained blockage — thick carpet fringe, tangled hair around the brush roll — current spikes past the protection threshold and the BMS opens the discharge circuit. The robot stops, the BMS resets after a few seconds, and the motor restarts. The fix is mechanical: clear the brush roll, check the intake port for obstructions, and confirm the filter is clean. If the cutout repeats on open hard floor with no blockage, the original battery's BMS has degraded and the PA61 replacement cell will resolve it.
