About this replacement

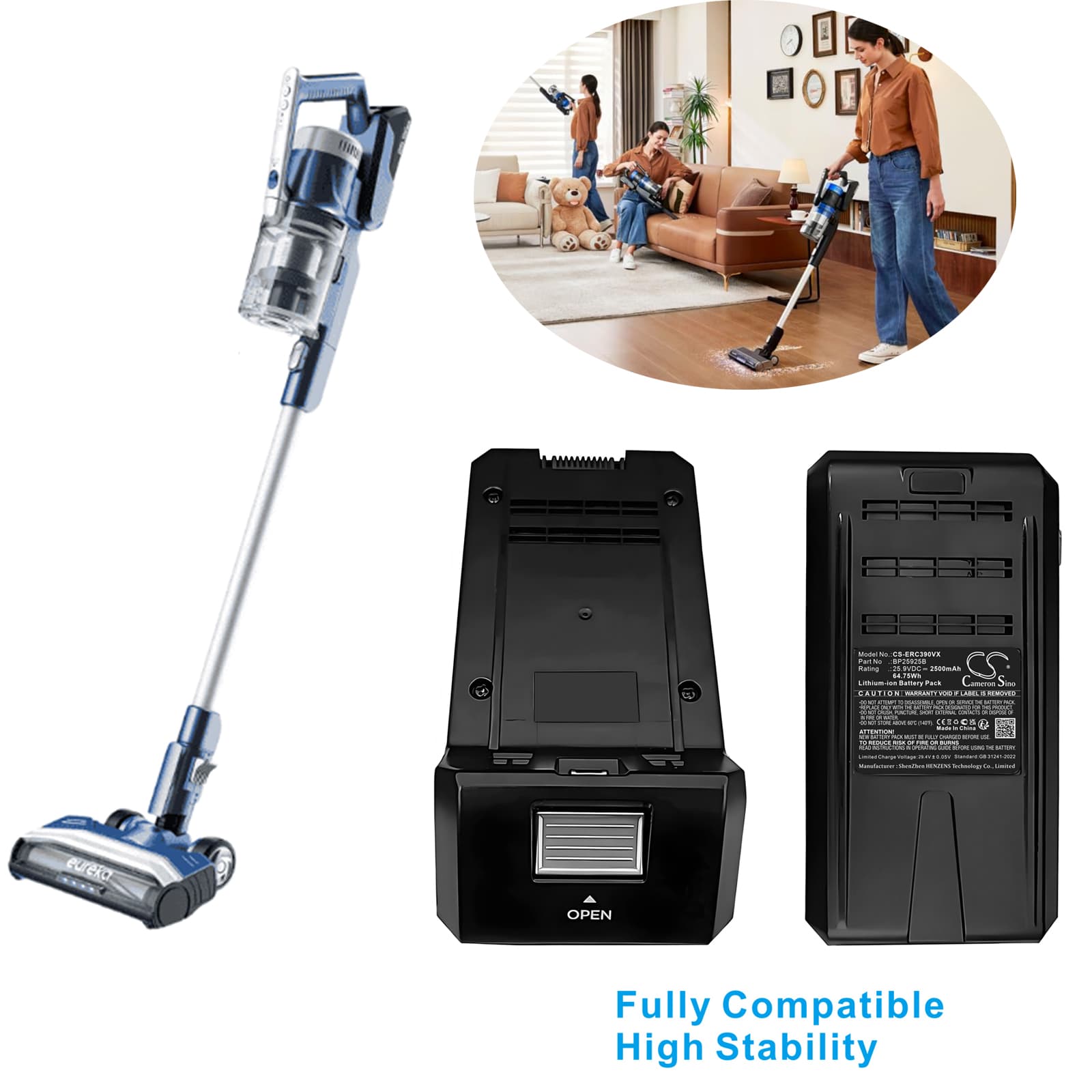

Eureka NEC390BL / Stylus Elite Series — 25.9V Li-ion Replacement Battery (BP25925B)
This is a 25.9V 2500mAh lithium-ion replacement battery for the Eureka NEC390BL, Stylus Elite, and Stylus Elite Anti-Tangle cordless stick vacuums. It matches the OEM part number BP25925B and uses the same voltage and cell configuration as the original pack. Capacity is 2500mAh (64.75Wh), sourced to match the factory specification.
- NEC390BL and Stylus Elite compatibility: These models share the same 25.9V battery bay, connector pinout, and BMS handshake protocol. A pack rated at a different voltage will not initialise — the motor controller checks the BMS before allowing power draw.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the NEC390BL platform. The BMS responded correctly to motor-start inrush, held voltage under sustained carpet load, and tripped cleanly on overcurrent without locking out the controller.
- Dock charging on the Stylus Elite: Do not leave the vacuum sitting on the charging dock permanently. Continuous trickle charging on these models accelerates capacity fade noticeably faster than charging only when the battery is depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low on the NEC390BL
The NEC390BL motor draws significantly more current when airflow is restricted — a partially blocked filter can push draw well above the rated load. Under that extra load, cell voltage sags earlier than the indicator expects, so suction weakens while the LED still shows a healthy charge. This is not a faulty battery; it is the BMS protecting cells from over-discharge under abnormal draw. Clean or replace the filter first, then retest — suction should hold consistent through the full discharge cycle.
Motor cuts out mid-clean then recovers after a few seconds
This is a BMS overcurrent trip, not a dead battery. When the vacuum picks up a blockage or runs against dense carpet with a restricted filter, current spikes beyond the pack's rated threshold and the BMS shuts the output rail to protect the cells. After a few seconds the BMS resets and power returns. Clear any blockage, check the filter, and resume — if the cutout repeats on a clean filter with no obstruction, verify the charger completed a full cycle to at least 29.4V before the next run.
