About this replacement

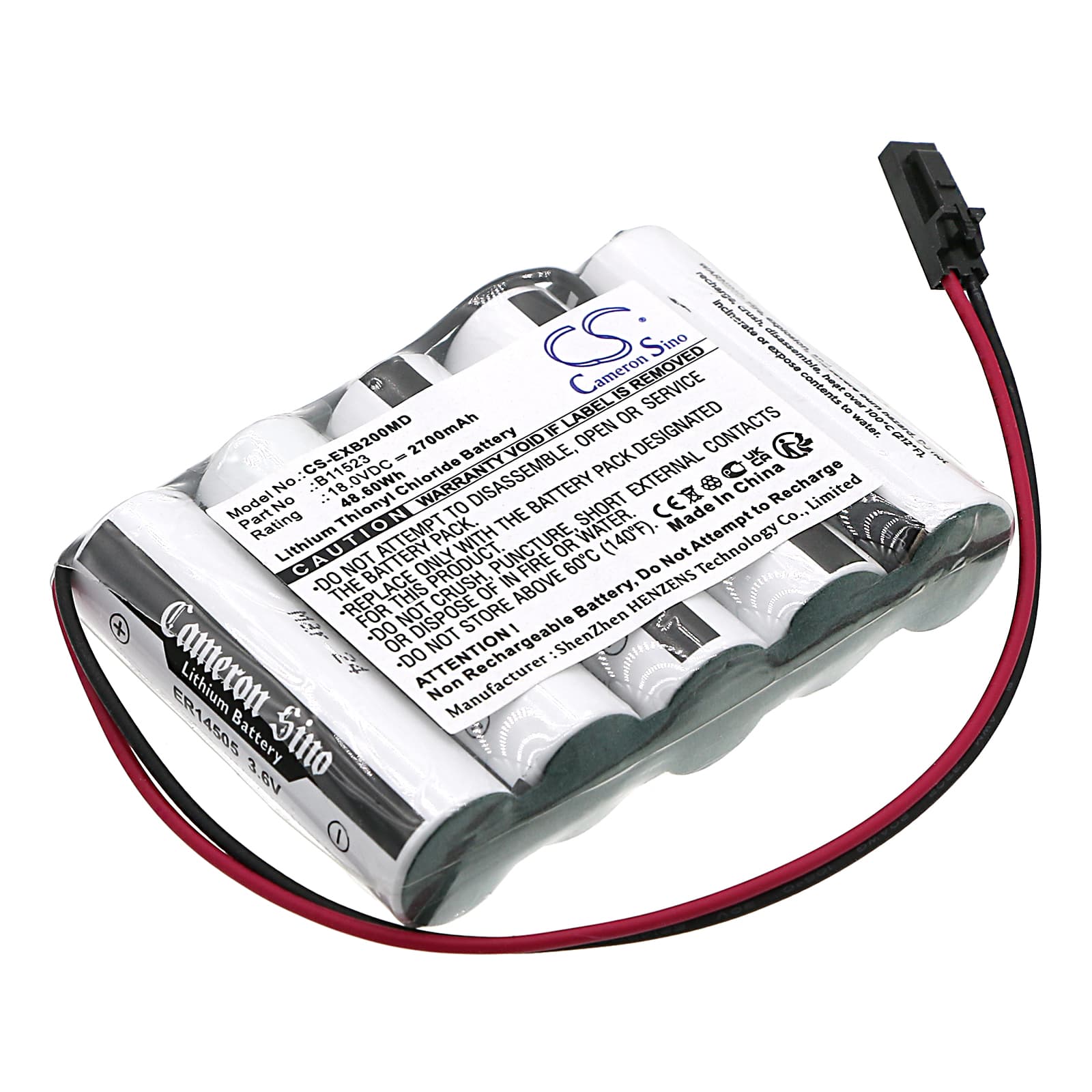

Exogen 2000+ / 4000+ Bone Healing System — 18V Li-SOCl2 Replacement Battery (B11523)
This is an 18V, 2700mAh Li-SOCl2 replacement battery for the Exogen 2000+ and 4000+ ultrasound bone-healing devices. It fits the handheld transducer unit used during low-intensity pulsed ultrasound therapy sessions. OEM part numbers include B11523, 81025147, 81001906, 91025147, and ZNG-B11523, among others listed in the compatibility data.
- 2000+ and 4000+ platform fit: Both the 2000+ and 4000+ use the same 18V power rail, connector pinout, and BMS handshake protocol — this single battery cell addresses both platforms without modification or adapter.
- Bench tested on actual hardware: We ran this cell through the Exogen power-on sequence and monitored the BMS handshake. The protection circuit held stable across the full charge window and passed the device's internal self-test without triggering a fault flag.
- Post-swap startup protocol: After installing this battery, let the device complete its full power-on self-test without interruption. The Exogen BMS runs a chemistry verification routine at boot — cutting power mid-sequence logs a false battery fault that persists until the next full restart cycle.
Why the Exogen alarms low battery immediately after a confirmed full charge
The Exogen BMS compares cell impedance and open-circuit voltage against a stored OEM chemistry profile at startup. A fresh Li-SOCl2 cell has slightly higher internal impedance than a broken-in cell, which can push the impedance reading outside the BMS acceptance window. The device interprets this as a depleted or faulty cell and triggers the low-battery alarm even when the cell is fully charged. One complete charge-discharge cycle lowers cell impedance enough to pass the BMS threshold — run this cycle before clinical use.
Exogen not completing boot sequence after the battery sat in storage
Li-SOCl2 cells self-discharge slowly in storage, but if the cell voltage drops below the BMS recovery floor — typically around 14.4V on this platform — the protection circuit locks out and the device will not power on at all. The BMS does this to prevent damage from a deep-discharged cell driving the transducer load. To recover, connect the battery to the Exogen charger and leave it on charge for a minimum of two hours before attempting to power on the device. If the charger LED does not indicate charge activity within 15 minutes, the cell is below the charger's own acceptance threshold and the battery needs replacement.
