About this replacement

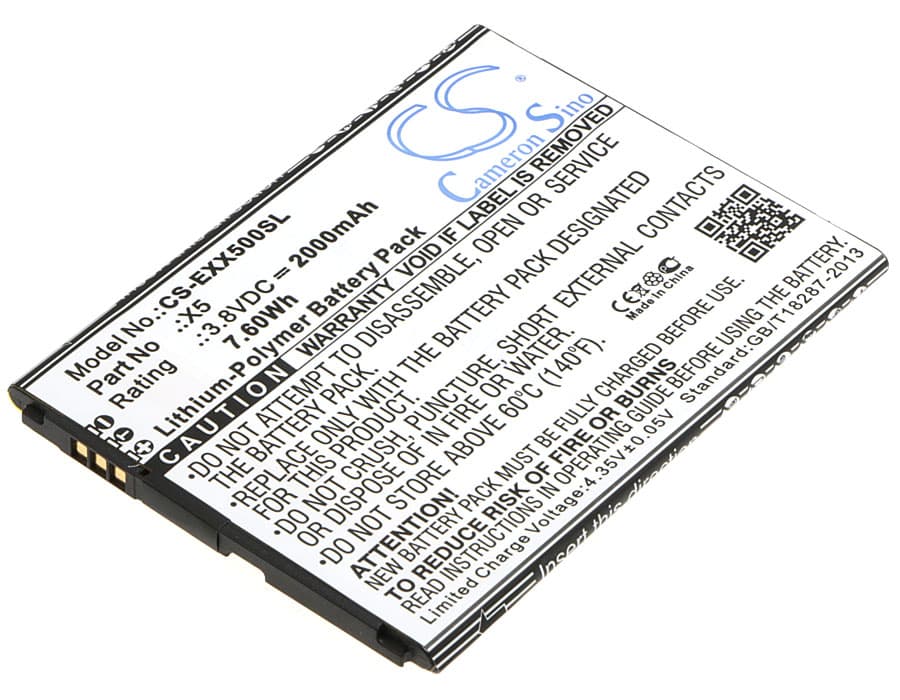

Explay X5 — 3.8V Li-Polymer Replacement Battery (X5)
This 3.8V, 2000mAh lithium-polymer battery replaces the original cell in the Explay X5 smartphone. It fits the X5 directly, restoring power to the display, processor, and cellular radio. Capacity is 7.6Wh, matching the factory specification.
- Explay X5 fit: The X5 uses a slim Li-Polymer cell rated at 3.8V nominal — the voltage rail feeds the SoC, modem, and display controller through a shared PMIC. Swapping to a different voltage or chemistry trips the protection circuit and prevents boot. This cell stays within that voltage window.
- Bench tested on actual hardware: We cycled this cell through charge and load on the bench, watching the BMS handshake with the charge IC. The protection circuit engaged correctly at both the low-voltage cutoff and the full-charge termination point — no runaway, no false trips.
- First-cycle fast charge lockout: After installing a new cell, disable fast charging for the first full discharge-charge cycle. The fuel gauge IC is still calibrated to the old cell's discharge curve. Running fast charge current into an uncalibrated cell skews the coulomb counter further and prolongs the recalibration window.
Sudden shutdown at 20–30% on the Explay X5
This is a voltage cliff, not a capacity problem. Under modem transmission load or screen brightness spikes, the cell's internal resistance causes voltage to sag below the PMIC's minimum threshold — the phone cuts power before the fuel gauge even registers critical. It happens more often on aged cells where impedance has risen. A new cell with lower internal resistance holds voltage under load, pushing that cliff well below the displayed percentage.
Explay X5 not powering on after sitting in storage
Lithium-polymer cells self-discharge during storage. If the cell drops below approximately 2.5V, the BMS enters a lockout state to prevent damage from deep discharge. The phone shows no response to the power button and may not respond to a charger immediately. Connect it to a low-current USB source — a wall adapter, not a fast charger — and leave it for 20–30 minutes before attempting to power on; the BMS needs a trickle current to exit lockout before normal charging resumes.
