About this replacement

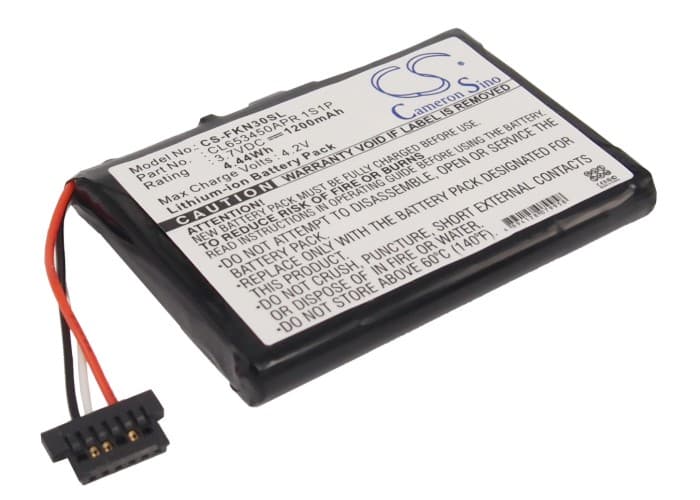

Falk N30 / N40 / N80 / N120 Series — 3.7V Li-ion Replacement Battery (CL653450APR 1S1P)
This 3.7V 1200mAh Li-ion cell replaces the original battery in the Falk N30, N40, N80, and N120 portable GPS navigators. It matches the OEM cell format at 50.00 × 35.95 × 6.92mm, fitting the battery bay without modification. Capacity is 4.44Wh — identical to the stock specification.
- N30 / N40 / N80 / N120 compatibility: These four Falk navigator models share the same battery bay dimensions, connector pin-out, and 3.7V single-cell architecture. The CL653450APR 1S1P cell format was used across this product generation, so one replacement covers the full group.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a Falk N-series unit. The BMS accepted the cell without fault flags, voltage regulation held steady across the GPS receiver and display load, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
- Cold-start tip after fitting: After fitting this cell, power the unit on outdoors before driving and let it acquire a satellite fix from a stationary position. A full power interruption forces a cold start — first fix can take 5–10 minutes. Once acquired, subsequent warm starts drop to under a minute.
GPS accuracy reduced while navigating near the end of a charge
Several Falk N-series units reduce GPS receiver sensitivity at low battery voltage to extend available power. This shows up as position drift or slower route recalculation, not a software fault. The receiver is pulling back its sampling rate to stay within the power budget the BMS is allowing at low state-of-charge. Keeping the cell above 3.6V during active navigation keeps the receiver running at full sensitivity.
Falk N30 shuts off without warning instead of showing a low-battery indicator
This happens when the battery gauge in the unit is no longer calibrated to the actual cell's voltage curve. The on-screen indicator may still show one bar when the cell has already dropped below the BMS cutoff threshold, so the unit cuts power with no visual warning. The fix is a full calibration cycle — run the new cell down until the unit shuts itself off, then charge to 100% without interruption. After one full cycle the indicator aligns with the real voltage curve and early shutoff stops.
