About this replacement

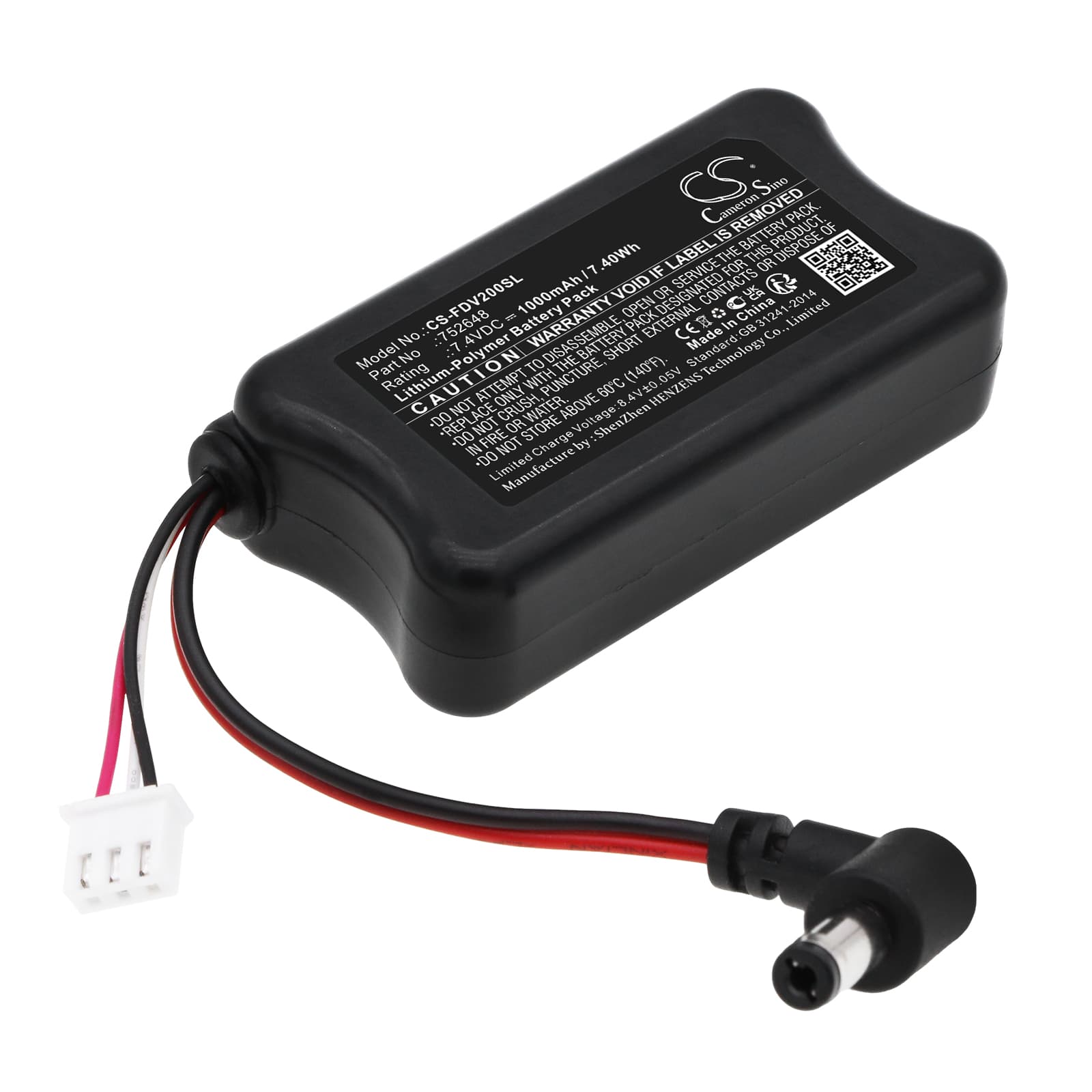

Fatshark Dominator V2 — 7.4V Li-Polymer Replacement Battery (752648)
This is a 7.4V 1000mAh Li-Polymer battery for the Fatshark Dominator V2 and compatible FPV goggles. It powers the video display, receiver circuitry, and processing components during drone racing and FPV flying sessions. Fits Dominator, Dominator HD, HDO FPV Goggles, and six additional models in the Fatshark Dominator line.
- Dominator series compatibility: These goggle models share the same 7.4V dual-cell Li-Polymer architecture, connector pinout, and BMS communication protocol — which is why one battery covers the full range from the original Dominator through the HDO.
- Bench tested on actual hardware: We ran this cell through the Dominator V2 display-on draw cycle. The BMS held steady across the full discharge curve and triggered low-voltage cutoff cleanly without dropping into the voltage floor that causes display flicker before shutdown.
- Goggle receiver draw during active video lock: When the receiver is actively locked to a 5.8GHz feed, current draw spikes above idle. Keep the receiver channel set before powering the goggles fully on — this avoids a scan-cycle surge that stresses a partially discharged cell.
Why Fatshark FPV goggles lose screen stability before the battery reads empty
Li-Polymer cells in FPV goggles don't discharge linearly. The Dominator V2's display and receiver pull combined load, which accelerates voltage drop in the final 20% of capacity. The screen can flicker or lose sync while the indicator still shows one bar. This happens because the receiver's voltage floor sits at roughly 6.8V — once the cell sags under load to that threshold, video signal degrades even if resting voltage looks acceptable.
Goggle powers on but shuts down seconds later with no warning
This is almost always a deep-discharge condition — the cell dropped below 3.0V per cell (6.0V total) during storage and the BMS is blocking discharge to protect the chemistry. Plug into a charger rated for Li-Polymer recovery and watch for the charge indicator to respond within five minutes. If the charger shows no activity after ten minutes, the cell has gone below recoverable voltage. A healthy cell in storage should rest above 3.7V per cell — check resting voltage at 7.4V before your next session.
