About this replacement

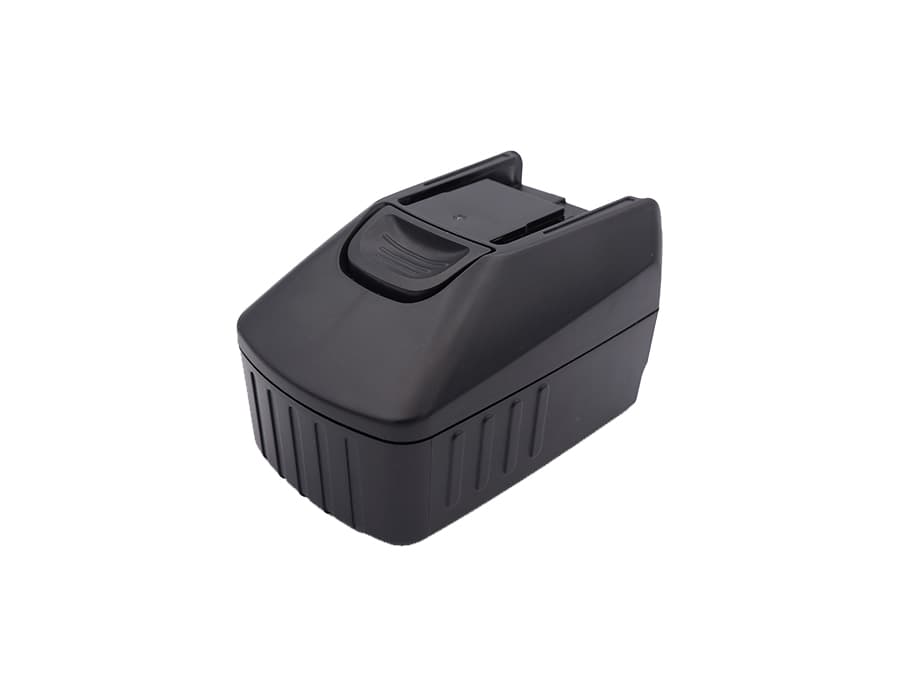

FEIN MultiMaster Top / QuickStart Series — 14.4V Li-ion Replacement Battery (92604164020)
This is a 14.4V, 3000mAh Li-ion replacement battery for the FEIN MultiMaster Top and MultiMaster QuickStart oscillating multi-tools. It also fits the MultiTalent QuickStart, MultiTalent Start, and over 31 additional FEIN 14.4V platform models. Capacity is 43.2Wh — matched to the original specification.
- 14.4V platform fit: The MultiMaster and MultiTalent lines share the same 14.4V battery rail, connector pinout, and BMS handshake protocol across the range. One pack covers the full oscillating tool family without modification.
- Bench tested on actual hardware: We ran this pack through charge, discharge, and motor-start cycles on the MultiMaster platform. The BMS engaged correctly on inrush spikes, held the voltage rail under sustained oscillating load, and reported state-of-charge accurately to the charger throughout.
- First-use break-in on oscillating tools: Run the tool at half load — light sanding or shallow cutting passes — for the first two cycles before applying full torque or prolonged grinding pressure. This lets the BMS profile the motor's inrush current draw and set overcurrent thresholds accurately before you hit peak demand.
BMS cutoff on trigger-pull inrush during blade plunge cuts
The FEIN MultiMaster draws a sharp current spike the moment the motor starts under load — plunge cutting into hardwood or metal sheet can spike demand well above steady-state draw. A new pack with a conservative overcurrent threshold may trip the BMS and cut power mid-start. This happens most often on the first five cycles when the BMS hasn't yet profiled the motor's inrush signature. After a few full charge-discharge cycles through normal use, the BMS recalibrates and the cutout behaviour typically resolves.
Charger showing no recognition or blinking red after pack sits in storage
Li-ion cells that have self-discharged below approximately 2.5V per cell will fall outside the charger's acceptance window — the FEIN charger will blink red or show no response rather than start a charge cycle. Place the pack on the charger and leave it connected for 10–15 minutes without removing it; most FEIN chargers run a trickle pre-charge routine that recovers cells down to around 2.0V before switching to normal charge mode. If the charger still shows no response after 20 minutes, check the pack's terminal voltage with a multimeter — a reading below 10V across the pack indicates deep discharge that the charger's pre-charge stage cannot recover. Target terminal voltage for normal charger acceptance is 11.5V or above.
