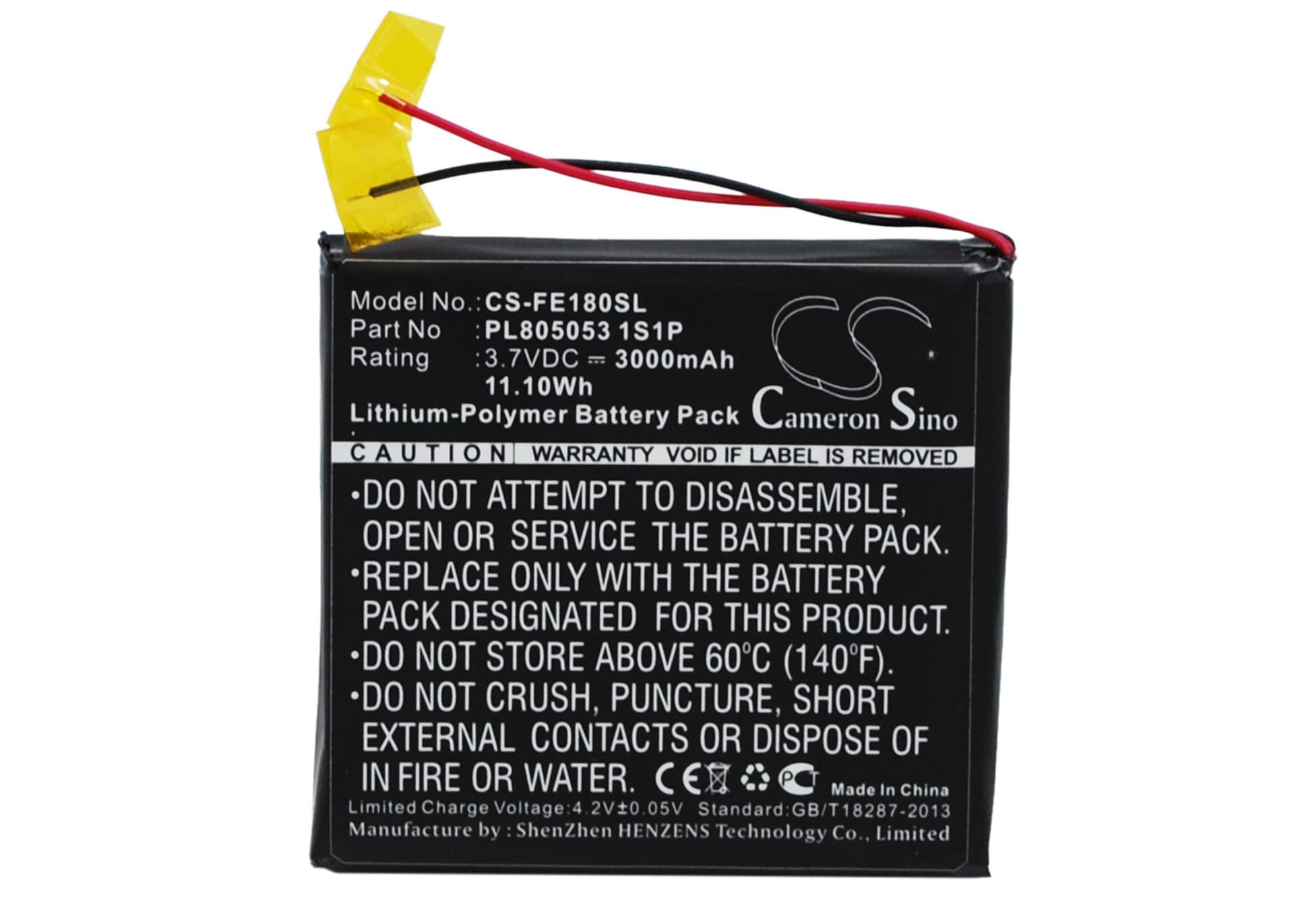

Fiio E18 — 3.7V Li-Polymer Replacement Battery (PL805053 1S1P)
This 3.7V 3000mAh Li-Polymer cell replaces the original battery in the Fiio E18 portable USB DAC/amplifier. The E18 powers headphone amplification and DAC conversion simultaneously, which places a higher and more variable current load on the cell than a standard playback device. Swapping a degraded cell restores the voltage stability the amplifier circuit depends on.
- E18 dual-load architecture: The E18 runs its DAC and amplifier stages off the same cell. When both are active, current draw spikes — especially at higher gain. A worn cell with elevated internal resistance can no longer hold the rail steady under that combined load, causing audible dropout or shutdown before the indicator reads empty.
- Bench tested on actual hardware: We cycled this cell through the E18's charge and discharge circuit. The BMS accepted the charge profile without tripping, held voltage above 3.5V through sustained amplifier output, and discharged cleanly to the protection cutoff without triggering a premature shutdown.
- First-cycle gain setting: Run the E18 at low gain for the first full charge cycle. High-gain operation during an uncalibrated cell's first discharge draws peak current before the BMS has mapped the cell's delivery curve, which can trigger an early protection cutoff and skew the remaining-charge calibration.
Amp shutting off before the battery indicator reaches empty
The E18's amplifier output stage requires a minimum supply voltage — typically around 3.5V — to maintain clean operation. The battery indicator, however, reads cell voltage under a light reference load, not under the actual amplifier current draw. When the cell voltage sags under real output current, the amplifier hits its undervoltage floor while the indicator still shows charge remaining. A fresh cell with low internal resistance holds the voltage rail above that floor much longer into the discharge cycle.
Clipping and distortion at moderate volume after battery replacement
If clipping appears at moderate volume shortly after fitting a new cell, the BMS calibration is likely off from the first cycle — the cell hasn't completed a full charge-to-cutoff pass yet. The amplifier's output stage clips when supply voltage drops under transient audio peaks, and an uncalibrated cell can report a higher state of charge than it can actually sustain under load. Run one complete discharge from full charge to automatic shutoff, then recharge fully. If clipping persists after that cycle, measure the cell voltage under load — it should sit above 3.6V at 50% charge.
