Fiio M11 — 3.8V Li-Polymer Replacement Battery (AEC644690)

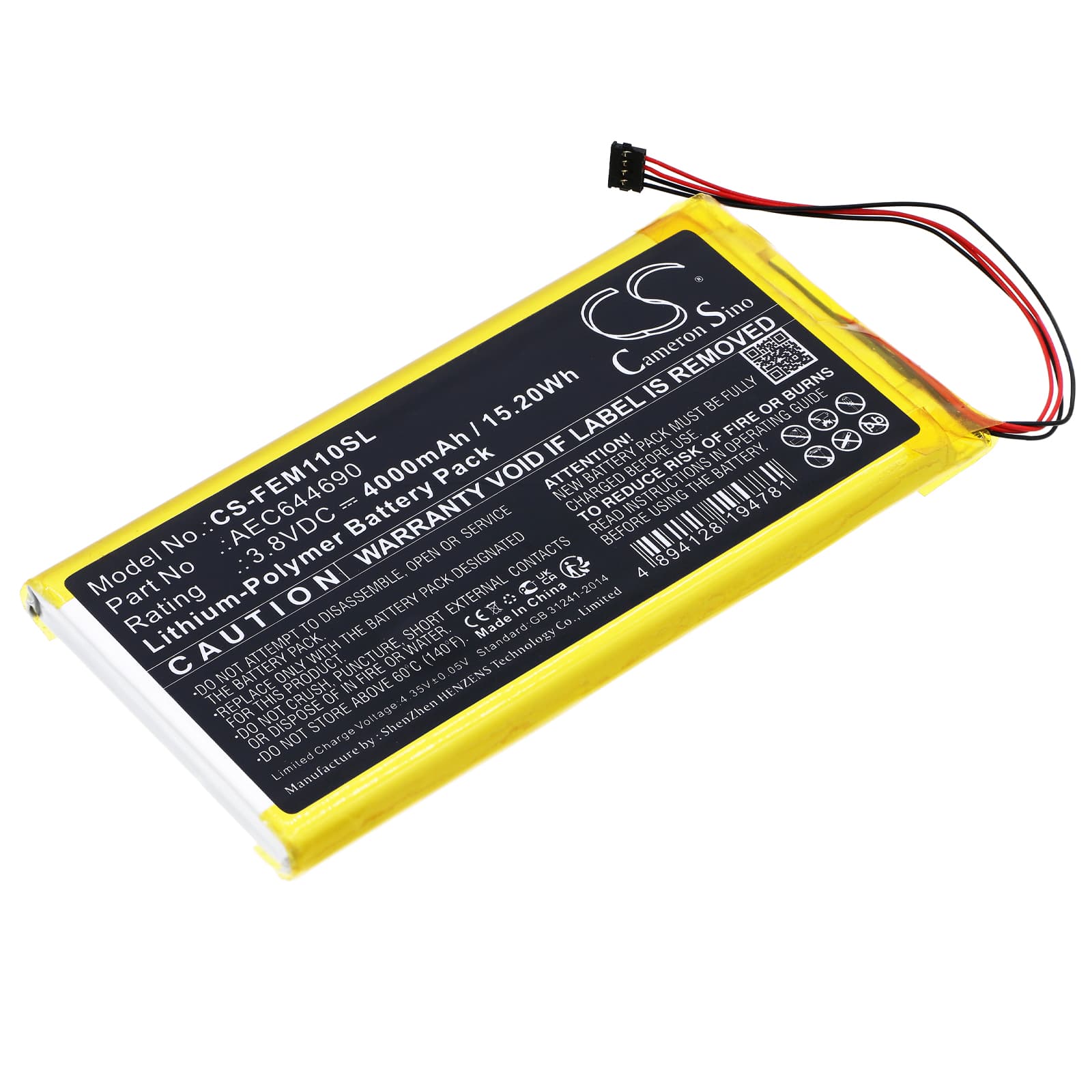

This 3.8V, 4000mAh Li-Polymer cell replaces the internal battery in the Fiio M11 portable digital audio player. It matches the OEM part number AEC644690 and fits the M11's battery bay at 91.00 × 45.30 × 6.40mm. When the original cell no longer holds charge, this replacement restores the M11 to full operating capacity.
- M11 platform fit: The M11 runs its DAC, amplification stage, and display from a single 3.8V Li-Polymer cell. The connector pinout and BMS communication protocol on this replacement match the OEM spec — the M11's firmware will read state-of-charge accurately from the first boot.
- Bench tested on actual hardware: We cycled this cell through the M11's charge controller and monitored BMS handshake data. The protection circuit responded correctly to both low-voltage cutoff and charge termination — no false trips at any gain setting.
- First-cycle calibration on the M11: Run the M11 at 50% volume through the first full charge cycle. Full-volume operation during the first cycle draws peak current from an uncalibrated cell and can cause the BMS to trip early before the cell reaches its rated 4000mAh delivery capacity.
Amp shutting off before the battery indicator reaches empty on the M11
The M11's amplification stage requires a higher minimum rail voltage than the display cutoff is calibrated for. When the cell voltage drops toward 3.2V under load, the amp circuit loses headroom and shuts down — even though the on-screen indicator may still show one or two bars remaining. A new cell that hasn't been calibrated to the M11's charge controller will exaggerate this mismatch. Run two full charge-discharge cycles at moderate volume to let the BMS map the cell's actual voltage curve, then confirm the cutoff aligns with an empty indicator at approximately 3.0V resting voltage.
M11 battery draining noticeably faster at high gain
Output power on the M11 scales directly with gain setting — high gain pulls significantly more current from the cell than low gain at the same volume number. This is normal amplifier behaviour, not a battery fault. A cell showing accelerated drain at high gain is doing exactly what the circuit demands. If drain rate seems excessive even at low gain, check that the M11's screen timeout is set to the shortest available interval, since the display draws a fixed current load regardless of audio output.
