About this replacement

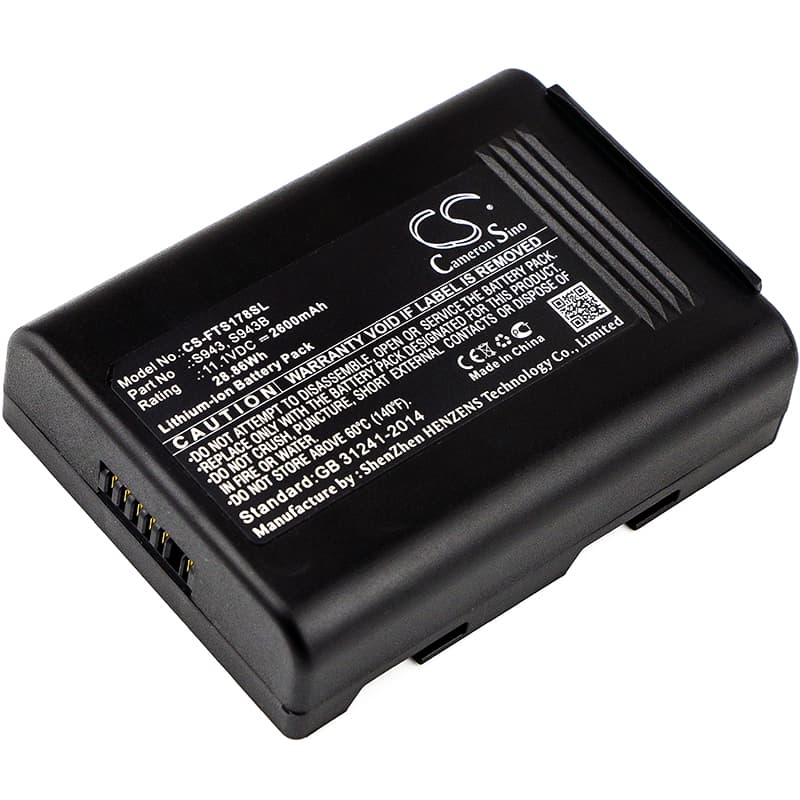

Fitel S121A / S122A Series — 11.1V Li-ion Replacement Battery (S943)
This is an 11.1V, 2600mAh lithium-ion battery for the Fitel fusion splicer range, including the S121A, S121M4, S122A, and S122C. It replaces OEM part numbers S943 and S943B. Field technicians use these splicers during fiber installation and maintenance runs where mains power is not available.
- S121A, S121M4, S122A, S122C fit group: These models share the same 11.1V battery rail, physical form factor, and BMS handshake protocol. Swapping between units in the same fleet is straightforward — the connector and charge termination logic are identical across this series.
- Bench tested on actual hardware: We ran this pack through the S121A charge cycle and confirmed BMS communication at full charge termination. The protection circuit responded correctly to arc discharge events — the brief current spike the splicer draws when the arc fires — without tripping into overcurrent lockout.
- First-use calibration on the splicer: After fitting this battery, run a full calibration cycle through the splicer's menu before heading to site. The S121A maps battery state during calibration. Skipping this step causes premature low-battery warnings mid-splice, even when the pack is well above cutoff voltage.
Arc discharge current spikes and BMS cutoff on the S121A
Every fusion splice pulls a sharp current spike when the arc fires. On a degraded or mismatched battery, this spike can push the instantaneous draw past the BMS overcurrent threshold, tripping the pack into protective shutdown mid-splice. The S943 BMS is rated to handle these transient loads. If cutoffs are still occurring after fitting a new pack, check that the battery contacts on the splicer are clean — oxidised contacts increase resistance and amplify the voltage drop during arc events.
Splicer not recognising the new pack after storage
If the S121A powers on briefly then cuts out, or shows no charge indicator at all, the replacement pack's BMS may have entered sleep mode during warehouse storage. This happens when cell voltage drops below the BMS recovery threshold — typically around 2.5V per cell. Connect the splicer's charger and leave it for 20–30 minutes without powering on the device. The charger's trickle current will bring the cells back above the 3.0V-per-cell threshold needed for the BMS to re-initialise and hand off to the splicer normally.
