About this replacement

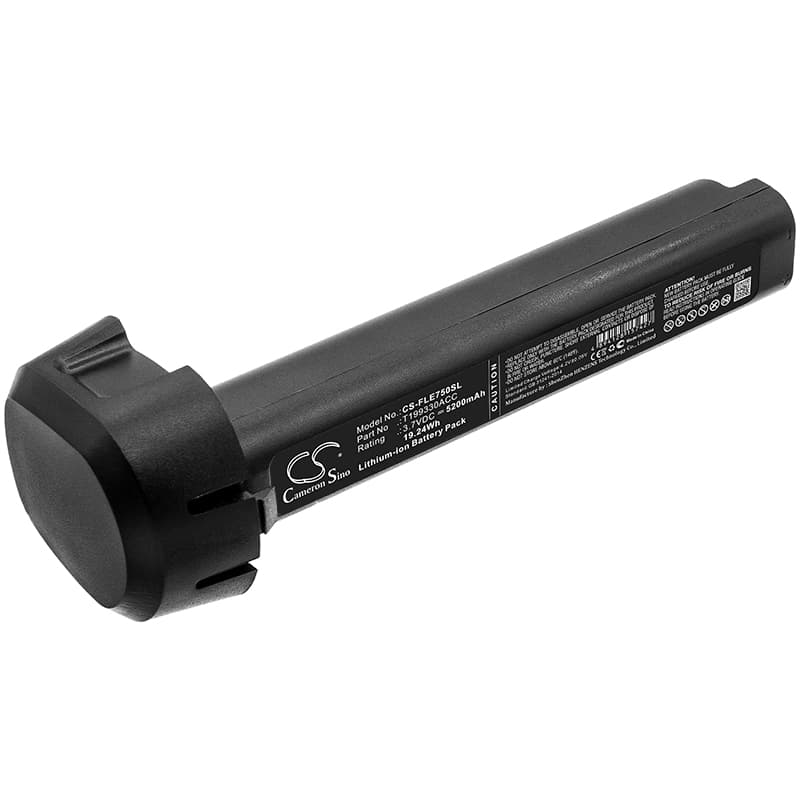

Flir E54 / E75 / E85 / E95 Series — 3.7V Li-ion Replacement Battery (T199330)
This is a 3.7V, 5200mAh Li-ion replacement battery for the Flir E54, E75, E85, and E95 thermal imaging cameras. All four models use the same battery form factor and OEM part number T199330. It covers the full power load of the IR detector array, display, and onboard processing simultaneously.
- E54 / E75 / E85 / E95 shared platform: These four cameras share the same battery bay dimensions, connector pinout, and BMS handshake protocol. Flir uses a consistent power architecture across this range, so one battery fits all four without adapter or modification.
- Bench tested on actual hardware: We ran this battery on an E85 body and confirmed BMS negotiation completed within two seconds of insertion. The camera accepted the cell without prompting a battery error screen, and the charge indicator reported correctly across the full discharge cycle.
- Detector stabilisation and power draw: After powering on, hold off on starting measurements for at least 60 seconds. The IR detector heating element draws constant current during warm-up, and the battery must sustain that load while internal electronics reach calibration temperature. Starting measurements too early stresses both the cell and the accuracy of your readings.
Why the E-Series camera cuts out mid-inspection despite showing battery remaining
The E54 and its siblings stack three simultaneous loads: the IR detector heater, the LCD display backlight, and the image processor. When all three spike together — such as during a scene change that triggers a recalibration shutter click — the combined draw can momentarily pull cell voltage below the BMS cutoff threshold. A degraded cell with higher internal resistance trips this cutoff faster. A fresh cell at full charge handles the surge without dropping below 3.0V. If the camera powers off abruptly during shutter events, check that the battery is fully charged before the next session.
Thermal accuracy dropping off before the low-battery warning appears
The uncooled microbolometer in these cameras is voltage-sensitive. As cell voltage sags toward 3.4V under load, the detector bias voltage can drift slightly, shifting temperature readings by up to a degree or two before the camera formally reports low battery. This is not a camera fault — it is a consequence of detector sensitivity to supply stability. If spot measurements start reading low or fluctuating unexpectedly during an inspection, check the battery level directly from the status menu. Recharge when cell voltage under load falls below 3.5V to keep detector accuracy within Flir's published specification.
