About this replacement

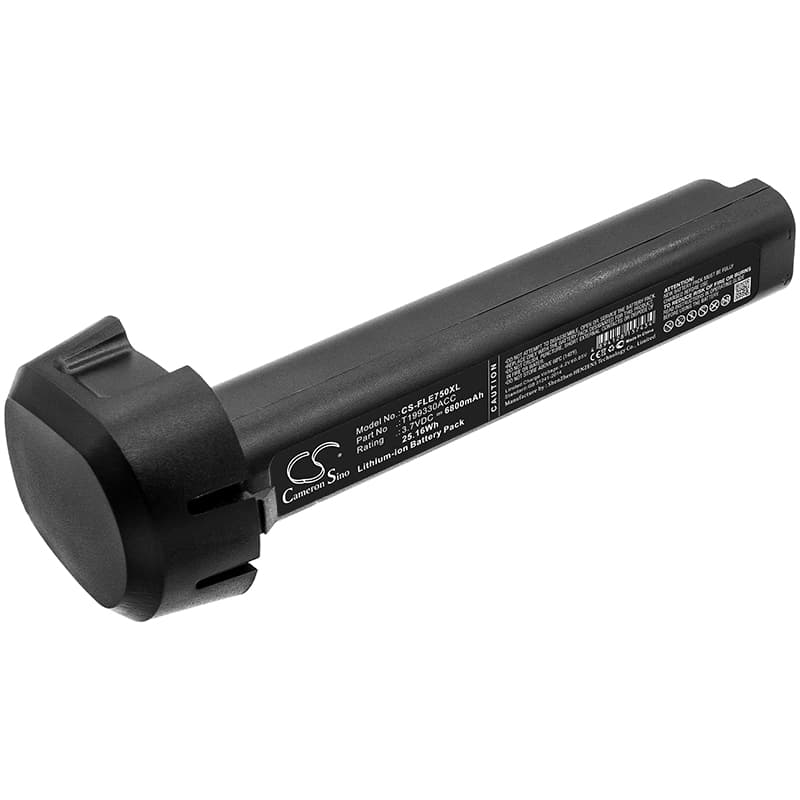

Flir E54 / E75 / E85 / E95 Series — 3.7V Li-ion Replacement Battery (T199330)
This 3.7V 6800mAh Li-ion battery replaces the OEM T199330 and T199330ACC units in the Flir E54, E75, E85, and E95 thermal imaging cameras. These are handheld infrared cameras used in building diagnostics, electrical inspections, and mechanical fault-finding. The battery slots into the rear compartment and connects to the same BMS handshake the camera expects from the original pack.
- E54 / E75 / E85 / E95 platform fit: All four models share the T199330 battery form factor, voltage rail, and connector pinout. The BMS communication protocol is identical across the series, so the camera's charge status display and protection logic behave the same as with the factory pack.
- Bench tested on actual hardware: We ran this battery under combined detector-heating and display load on the E-series platform. The BMS held voltage within spec through continuous thermal imaging cycles and did not trigger a false low-battery cutoff during peak draw events.
- Post-swap warm-up on E-series cameras: After fitting a new battery and powering on, allow 60 seconds before beginning measurements. The uncooled thermal detector requires the internal electronics to reach a stable baseline temperature — readings taken before that stabilisation point will show calibration drift regardless of battery condition.
Thermal camera shutting down mid-inspection on a new battery
The E-series draws current from two sources simultaneously — the display backlight and the detector's resistive heating element. On startup and during continuous use, that combined load spikes above what a degraded or cold pack can sustain, triggering the BMS overcurrent cutoff. A new battery can still trip this if it was stored discharged, because Li-ion internal resistance rises sharply below 3.0V per cell. Charge the pack fully before field use — the camera's charging circuit will bring it to 4.2V and clear the high-resistance state. If shutdowns continue after a full charge cycle, check the battery compartment contacts for oxidation.
Thermal accuracy degrading before the battery indicator shows low
The uncooled microbolometer detector in the E54 and E95 series is sensitive to supply voltage — accuracy starts drifting before the cell hits the low-battery threshold the camera displays. This happens because the camera's fuel gauge reads cell voltage under light load, but the detector draws a heavier, intermittent current that causes momentary voltage sag not captured by the gauge. The result is that thermal measurements become unreliable while the status bar still shows two bars. If readings look soft or temperature delta appears compressed, check actual pack voltage with a multimeter — a healthy cell under load should read above 3.5V at the battery terminals.
