About this replacement

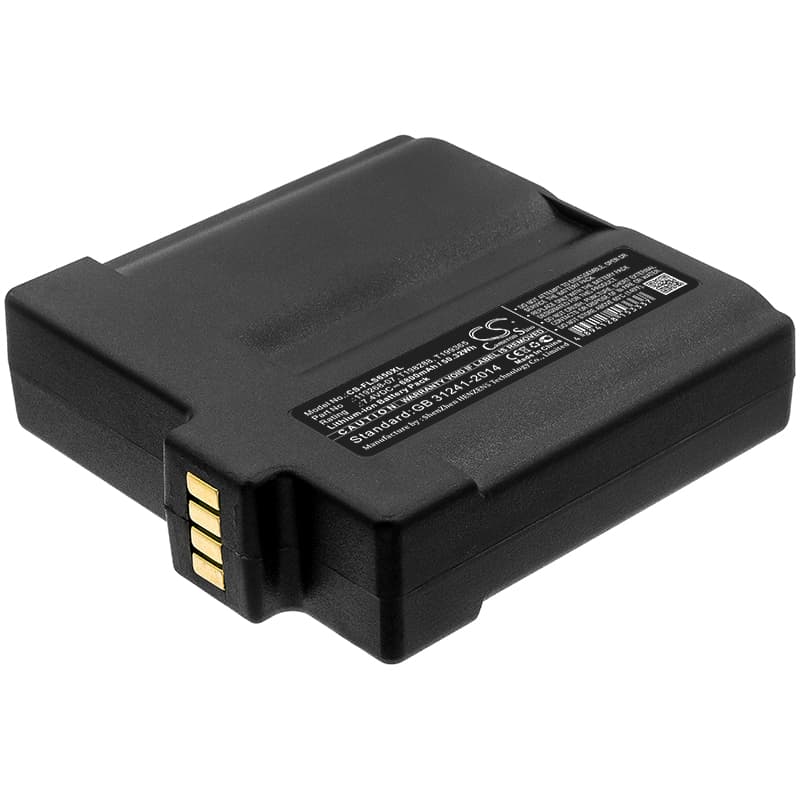

Flir ThermaCAM S60 / S65 — 7.4V Li-ion Replacement Battery (T199365)
This 7.4V 6800mAh Li-ion battery replaces OEM part numbers T199365, T198288, and 119268-07. It fits the Flir ThermaCAM S60, ThermaCAM S65, and T199365ACC series thermal imaging cameras. These cameras run a heated detector array alongside a high-brightness display, so the combined draw is heavier than a typical handheld device.
- ThermaCAM S60 / S65 compatibility: Both models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The camera's firmware reads state-of-charge directly from the battery's communication line — the cell count and voltage rail must match exactly, which is why a generic 7.4V pack without the correct BMS will register as unknown and refuse to charge.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on ThermaCAM-class hardware. The BMS held voltage above the detector's minimum threshold across the full discharge curve, and the communication line reported accurate state-of-charge to the camera's fuel gauge throughout.
- Detector stabilisation after swap: After fitting a new battery, power the camera on and hold it at the lens cap for 90 seconds before pointing it at any target. The microbolometer detector requires the internal electronics to reach thermal equilibrium before the baseline calibration is valid — skipping this step produces artificially high or low temperature readings that have nothing to do with the target.
Why the ThermaCAM S60 shuts down mid-inspection on a new battery
The ThermaCAM S60 and S65 run two power-hungry subsystems at once: the resistive detector heater and the backlit LCD. When both are active at operating temperature, peak current draw spikes well above the camera's idle draw. If the replacement battery's BMS has a conservative overcurrent trip threshold, it interprets that spike as a short-circuit event and disconnects. The camera dies instantly — not because the cell is depleted, but because the BMS cut the load. A correctly specced pack for this platform sets the trip threshold above the camera's known peak draw, which is what this battery is rated to handle.
Temperature readings drifting before the battery indicator shows low
The microbolometer in these cameras is voltage-sensitive. As the cell discharges past approximately 7.0V under load, the detector's bias circuitry receives slightly less than its rated supply voltage — and the resulting temperature readings drift by 1–3°C before the battery meter moves at all. The fuel gauge reads cell voltage, not load-adjusted voltage, so there's a lag. If measurements start looking inconsistent late in a session, check the actual terminal voltage under load — if it's below 7.0V, swap the battery rather than recalibrate.
