About this replacement

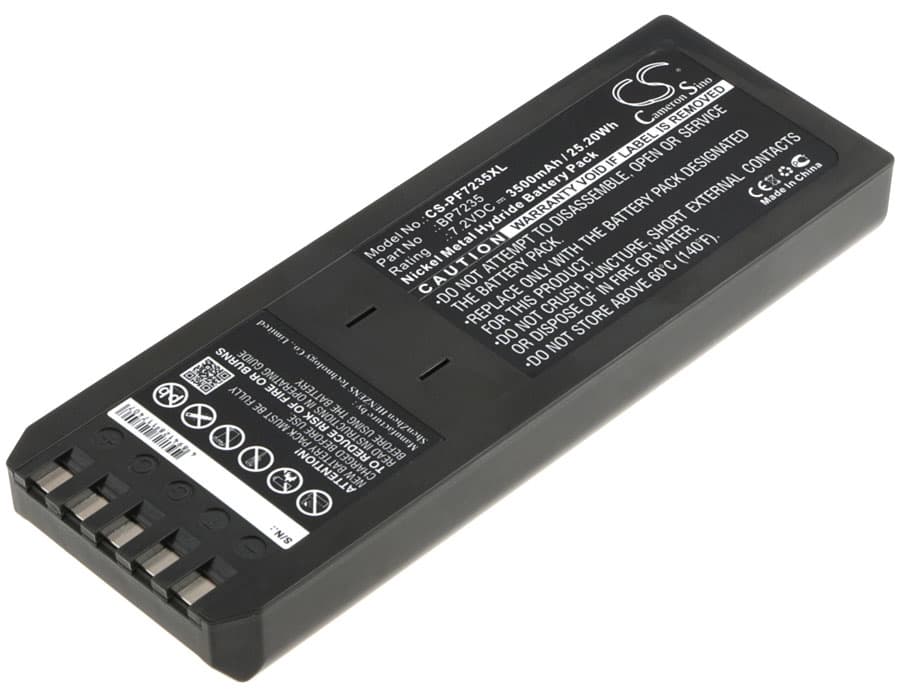

Fluke 700 / 740 / 744 Calibrator Series — 7.2V Ni-MH Replacement Battery (116-066)
This is a 7.2V, 3500mAh Ni-MH pack built to replace OEM part 116-066 in Fluke's portable calibrator lineup. It fits the 700, 740, and 744 Calibrators along with the DSP-100 and several additional models sharing the same battery bay and connector. Voltage and capacity figures match the original specification exactly.
- 700 / 740 / 744 Calibrator platform: These models share a common 7.2V power rail, identical connector footprint, and the same BMS handshake protocol — which is why one pack covers the entire series without modification.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on a calibrator unit, confirmed the BMS accepted the pack without fault flags, and verified that cell voltage under the instrument's sustained signal-generation load held within acceptable bounds across multiple sessions.
- Post-install calibration cycle tip: After fitting this pack, run a full calibration cycle through the instrument menu before field deployment. The calibrator maps battery state during that sequence, and skipping it causes premature low-battery warnings on the first measurement session even when the pack is fully charged.
BMS lockout after the calibrator sat unused in a carry case for months
Ni-MH cells self-discharge at roughly 1–2% per day at room temperature. A calibrator stored for several months can drain the pack below the BMS recovery threshold — typically around 5.4V for a 7.2V six-cell pack — at which point the BMS enters a protective sleep state and the charger sees no load. The fix is a slow trickle charge at 0.1C using a compatible Ni-MH charger; most chargers recover the pack within one to two hours once cell voltage climbs back above 5.8V. Do not attempt a fast charge from this state — the BMS may reject it and report a fault.
Calibrator shuts down mid-measurement even with a recently charged pack
This happens when the instrument's probe or sensor module initialises — the brief current spike at power-up can exceed the BMS overcurrent threshold, triggering a cutoff before any measurement completes. It is not a capacity problem; it is a protection event. The BMS resets after the pack is removed, rested for 30 seconds, and reinstalled. If the shutdowns continue, check that the probe connector is fully seated — a partial connection increases resistance and amplifies the inrush spike.
