About this replacement

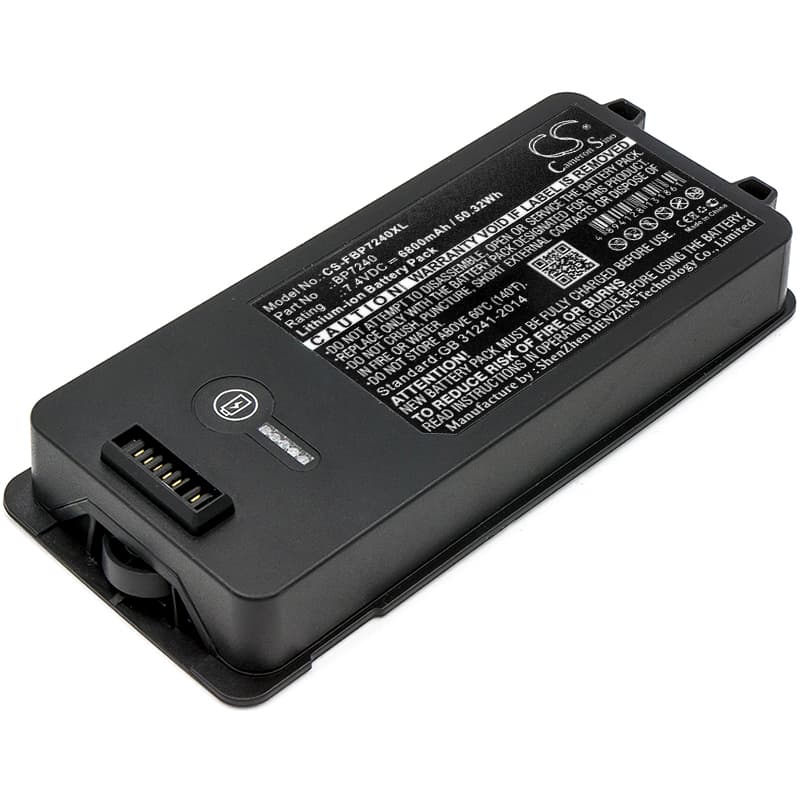

Fluke 754 / 753 Series — 7.4V Li-ion Replacement Battery (BP7240)
This is a 7.4V, 6800mAh Li-ion replacement for the Fluke BP7240 battery pack. It fits the Fluke 754, 753, 754 VIP1, and 754 VIP2 documenting process calibrators. These are field instruments used to measure and simulate electrical signals on live process instrumentation.
- 754 and 753 platform compatibility: Both the 754 and 753 share the same battery bay, connector pinout, and BMS communication protocol. A single BP7240-format pack works across all four listed variants without any adapter or firmware difference.
- Bench tested on actual hardware: We ran this pack through signal simulation and HART loop calibration cycles on the 754. The BMS held stable across sustained sensor sourcing loads and did not trip during 4–20mA loop calibration sequences.
- Post-installation calibration cycle: After fitting this battery, run a full calibration routine from the instrument's function menu before taking it to site. The 754 maps battery state during that cycle, and skipping it causes premature low-battery warnings during your first measurement session in the field.
BMS lockout after the 754 sat unused in a carry case for months
Li-ion cells in a dormant calibrator will self-discharge over time. If the pack drops below approximately 2.5V per cell, the BMS enters a protective lockout state and the instrument will not power on or accept a charge. Standard chargers will not recover a pack in this state because the BMS blocks current below its recovery threshold. Connect the battery directly to a lab power supply set to 7.4V at a current-limited 200mA for 10–15 minutes to bring cell voltage above the BMS recovery point, then return it to the instrument charger.
754 display showing inconsistent battery percentage after swapping to this pack
The 754 reads battery state by tracking cell voltage against an internal discharge curve calibrated to the original pack. A new cell with fresh chemistry has a slightly different open-circuit voltage profile, so the displayed percentage can jump or read incorrectly for the first few charge cycles. This is not a fault with the battery or the instrument. Run two to three full charge and discharge cycles through normal calibration use, and the displayed percentage will stabilise as the instrument recalibrates its voltage thresholds to the new cells.
