About this replacement

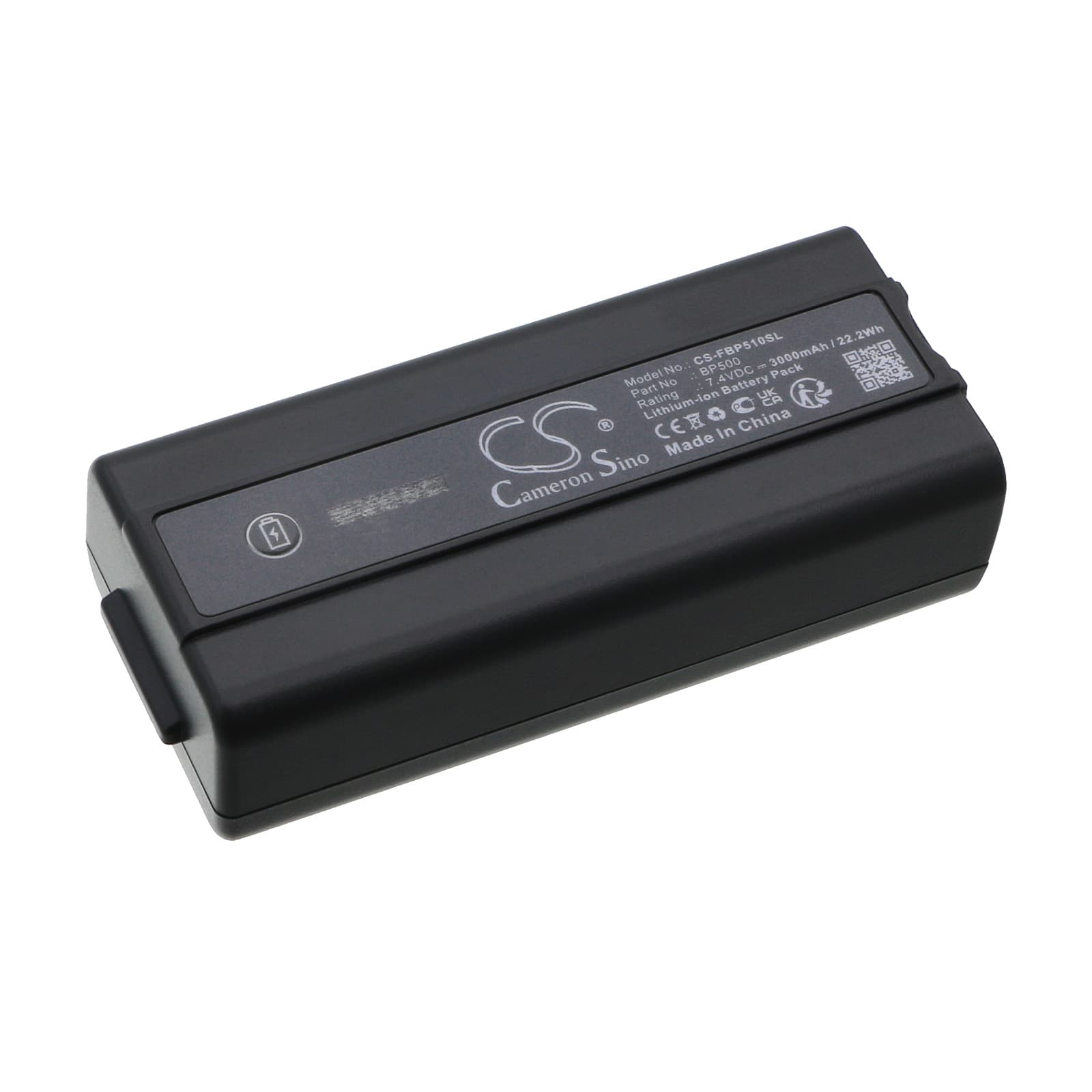

Fluke BT510 / BT520 / BT521 Series — 7.2V Li-ion Replacement Battery (4542300 / BP500)
This 7.2V 3250mAh Li-ion pack replaces the OEM battery in the Fluke BT510, BT510/WWG, BT520/WWG, and BT521 battery analyzers. These are handheld diagnostic instruments used to assess battery condition in field and maintenance environments. The pack delivers 23.4Wh and connects via the same housing and contact configuration as the original 4542300 / BP500 unit.
- BT510 / BT520 / BT521 platform fit: These models share the same battery bay geometry, contact pinout, and BMS handshake protocol across the WWG variants. One pack serves the full series without adapter or modification.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the BT510 platform. The BMS negotiated correctly at power-on, held voltage steady through probe initialisation load spikes, and triggered protection cleanly at the low-voltage threshold without requiring a manual reset.
- Post-install calibration on the BT510: After fitting this pack, run a full calibration cycle through the BT510 instrument menu before taking it to site. The analyzer maps battery state during calibration — skipping this step causes the low-battery indicator to trigger early on your first measurement session, even with a full charge.
BMS lockout after the BT510 sat unused in a carry case for months
Li-ion cells self-discharge at roughly 1–2% per month under storage conditions. If the BT510 sits unused long enough, cell voltage can drop below the BMS recovery threshold — typically around 2.5V per cell — and the pack enters a locked protection state. At that point the instrument shows no signs of life and the charger may not respond either. To recover, connect the pack to a compatible Li-ion charger and leave it for 20–30 minutes; most BMS circuits will re-initialise once the charger applies a trickle pre-charge above the recovery floor, usually 7.0V aggregate on a 7.2V two-cell pack.
BT510 shuts down mid-test when the probe module initialises
When the BT510 powers up a probe or sensor module, there is a brief current spike at the moment the module draws its initialisation load. A worn or marginal cell — original or replacement — can see an instantaneous voltage sag during that spike that crosses the BMS under-voltage trip threshold, cutting power before the test begins. This pack's cells are rated to handle the initialisation draw without sagging into the cutoff window. If shutdowns persist after fitting a new pack, check the probe connector contacts for oxidation — a resistive connection multiplies voltage drop under the same current.
