About this replacement

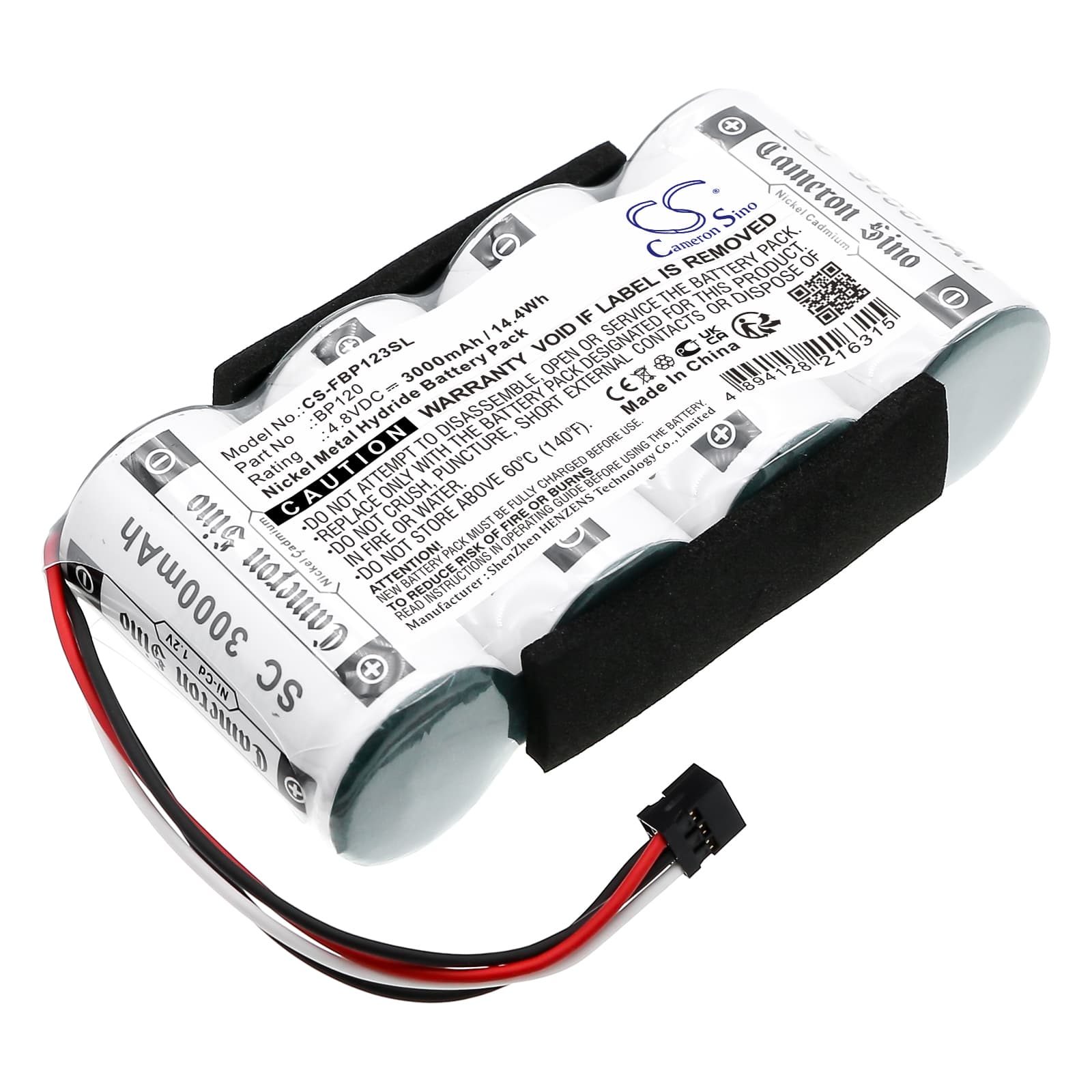

Fluke Scopemeter 120 Series — 4.8V Ni-MH Replacement Battery (BP120)
The BP120 is a 4.8V, 3000mAh Ni-MH battery pack for the Fluke Scopemeter 120 portable digital multimeter and oscilloscope combo unit running firmware 2.01 or above. It restores field portability to the instrument when the original cell degrades below usable capacity. This pack matches the OEM voltage rail and connector required by the Scopemeter 120 BMS.
- Scopemeter 120 firmware 2.01+ compatibility: Firmware 2.01 introduced tighter BMS handshake logic for cell recognition. This pack meets the voltage and discharge curve expectations that version requires — earlier packs or mismatched cells can cause the instrument to reject the battery at power-on.
- Bench tested on actual hardware: We cycled this pack through probe initialisation sequences and sustained waveform capture loads. The BMS held stable across oscilloscope and multimeter combined draw without tripping the low-voltage cutoff.
- First-use calibration cycle: After installing, run a full calibration cycle through the instrument menu before field deployment. The Scopemeter 120 maps battery state during calibration — skipping this causes premature low-battery warnings to fire during the first measurement session.
BMS lockout after the Scopemeter 120 sat unused in a carry case for months
Ni-MH cells self-discharge continuously, and after an extended storage period the pack voltage can drop below the BMS recovery threshold. When this happens, the charger circuit in the Scopemeter 120 may not initiate a charge cycle because it reads the pack as a fault condition rather than a depleted cell. The fix is to apply a slow trickle charge — using a compatible external Ni-MH charger at a low C-rate — until the pack recovers above 4.0V, at which point the instrument's internal charger will recognise and resume normal charging. Do not attempt to fast-charge a pack that has been in this state.
Scopemeter 120 shuts down mid-measurement with the battery indicator showing charge remaining
This is a voltage sag issue, not a capacity issue. Aged Ni-MH cells lose internal resistance tolerance, so under the combined draw of active probes and waveform capture the terminal voltage drops sharply and trips the low-voltage cutoff — even when the resting voltage looked acceptable before power-on. A fresh pack holds the voltage rail stable under that load. After fitting the new battery, run the calibration cycle so the instrument resets its voltage-threshold map to the new cell's discharge curve.
