About this replacement

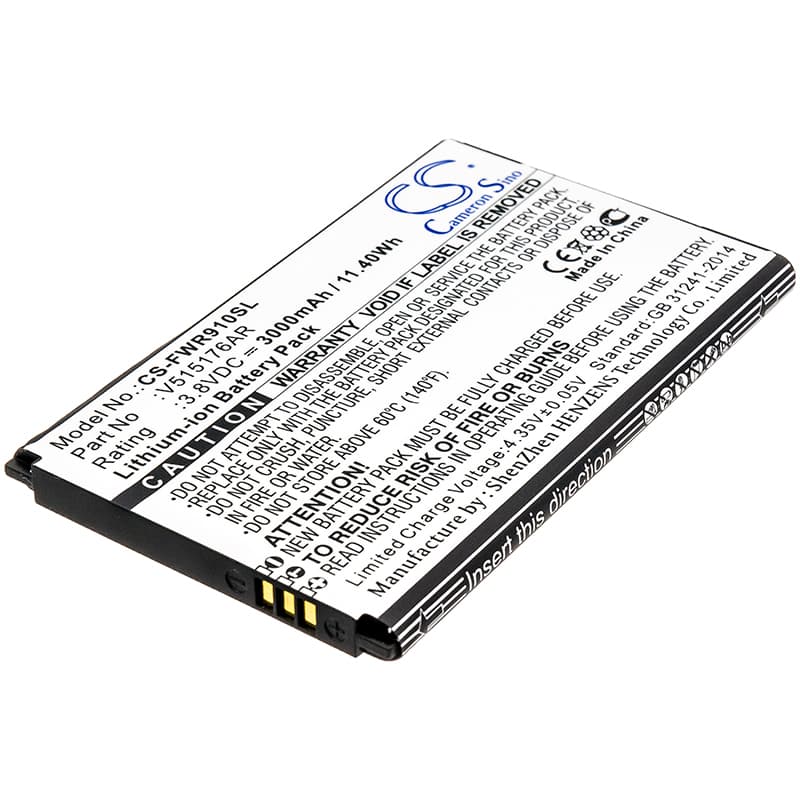

Franklin Wireless R910 — 3.8V Li-ion Replacement Battery (V515176AR)
This 3.8V, 3000mAh Li-ion battery replaces the original V515176AR cell in the Franklin Wireless R910 mobile hotspot. The R910 runs a combined cellular modem and Wi-Fi radio stack, which draws more from the battery than most users expect. Swap this in when charge no longer holds or the unit shuts off before you're done using it.
- R910 platform compatibility: The R910 uses a 3.8V nominal cell with a specific BMS handshake to manage both the LTE modem and the Wi-Fi broadcast radio. This battery matches that voltage rail and connector pinout so the device boots and reports state-of-charge correctly.
- Bench tested on actual hardware: We ran this battery under a simulated multi-device load — modem active, Wi-Fi broadcasting to several connected clients. The BMS held a stable discharge curve without triggering an undervoltage cutoff during the draw peaks.
- Cellular signal and heat management: In areas with weak signal, the R910's cellular radio pushes to maximum transmit power. Keep the hotspot on a flat, open surface during long sessions — blocking the rear vents traps heat directly against the battery and accelerates cell wear.
Why the R910 disconnects connected devices mid-session
The R910 runs two radios simultaneously — the cellular modem and the Wi-Fi access point. When several devices are actively transferring data, combined draw spikes sharply. An aged or partially charged battery sags below the minimum operating voltage for the modem, which causes a momentary reset. Users see this as a Wi-Fi dropout or a full device reboot, not a low-battery warning. A fresh cell at full charge holds the voltage rail stable through those peaks.
R910 won't power on after sitting unused for weeks
Li-ion cells self-discharge slowly in storage. If the R910 sat unused for a month or more, the battery may have dropped below 3.0V per cell — the threshold many BMS circuits refuse to boot from. Plug into the original charger and leave it connected for at least 30 minutes before pressing the power button. If the charge indicator light never appears, the cell has reached 2.5V or lower and the BMS may need a trickle-recovery cycle before normal charging resumes.
